How can I connect Lauterbach debugger to AEK-COM-10BASET?

Hello support team,

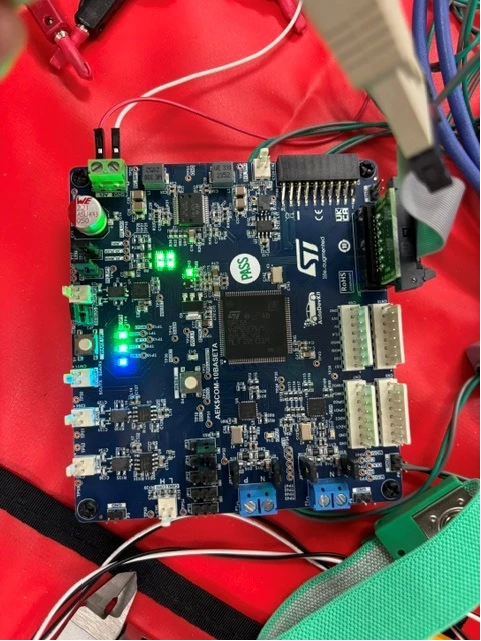

I just received a new AEK-COM-10BASET board and trying to connect Lauterbach debugger with License module for MPC55xx.

Question : How can I connect to the board through Lauterbach debugger & SW?

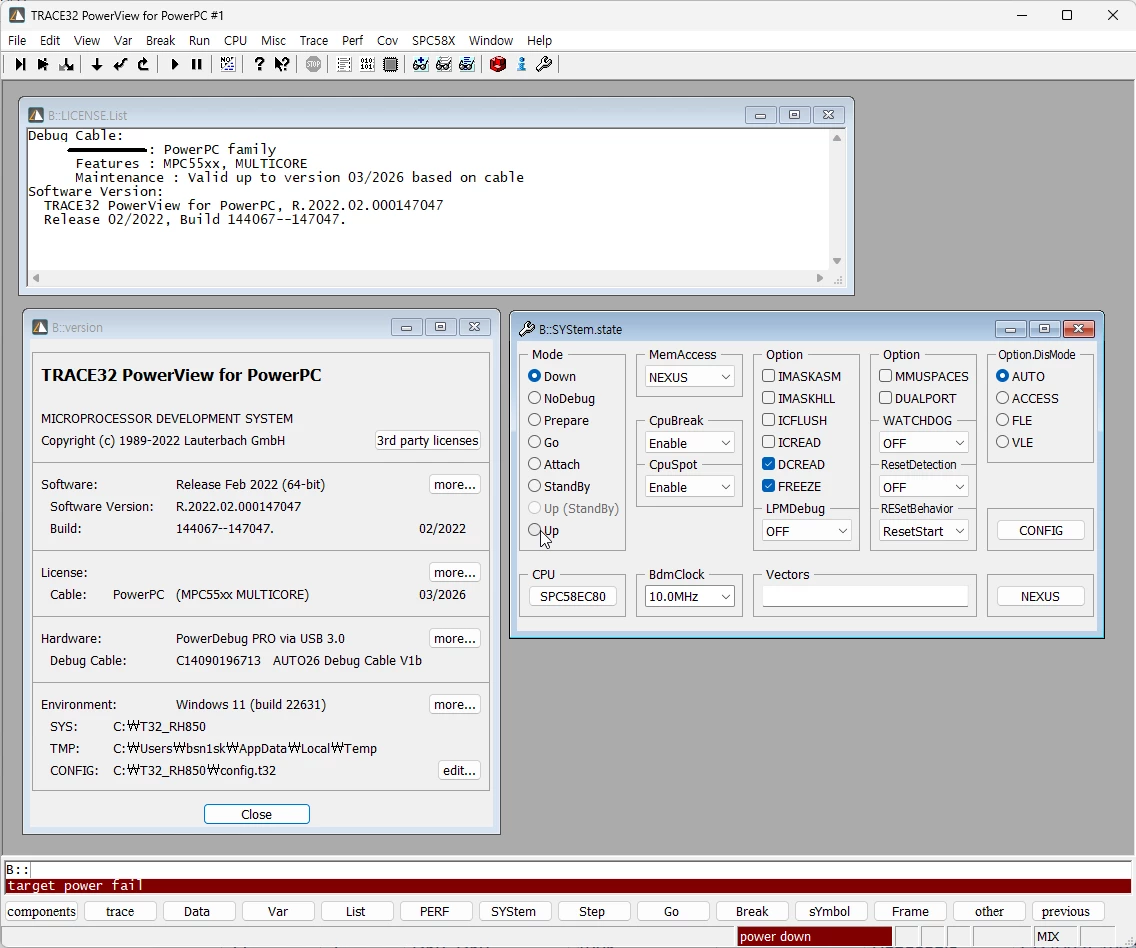

Currently the SW (TRACE32) shows error message when I press "Up" button.

I have no idea why such "Target Power Fail" error or "Power Down" message is appeared.

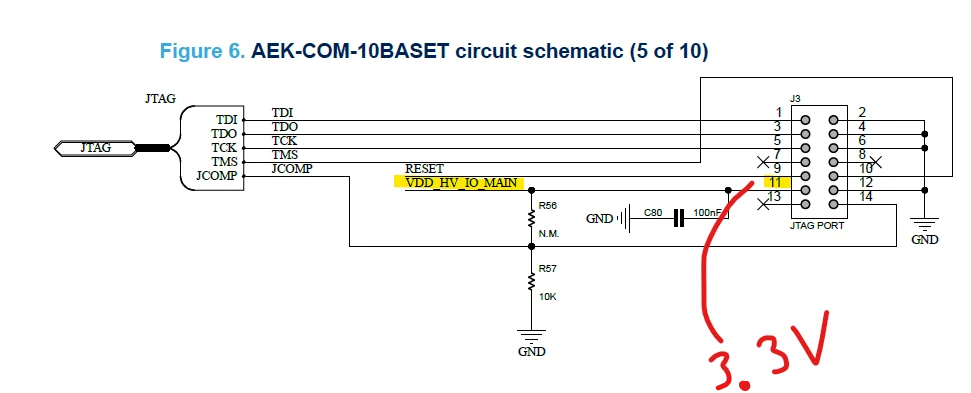

Also I checked below 11 pin and the measured voltage is 3.3V.

The jumper (switch) configuration I made are ;

JP1~JP7 : closed = short

J13, J14 : I tried both 1-2 and 2-3 connection

Any comment is appreciated, thanks!

Best regards,

apap

Technical Moderator

Hi,

We have not tested the board with Lauterbach. We used OpenOCD as deployed in AutoDevKit Studio.

By the way, our MCU is SPC58EC e not MPC55xx. Might this be the difference?

Best Regards,

AutoDevKit Team

apapAuthor

Associate

Hello Team,

I found wrong cable connection and I successfully connected / started debugging through Lauterbach debugger.

Based on it's default basic CMM script I also flashed the sample project's ELF. Looks like working.

Thank you for help!
