Firmware update issue

  • March 30, 2016
  • 5 replies
  • 1157 views
Posted on March 30, 2016 at 10:48

Good morning,

  I have some problems regarding firmware update. When  I try to update firmware via serial link, I obtain this message:

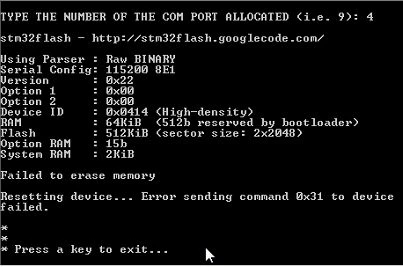

''Error sending message 0x31 to device'' as show also in the image:


Someone can help me?

Stefano
    This topic has been closed for replies.

    5 replies

    Gerardo GALLUCCI
    Gerardo GALLUCCI
    ST Employee
    March 30, 2016
    Posted on March 30, 2016 at 11:25

    Ciao Stefano,

    seems FLASH is corrupted...

    Can you please try an update through standard (GUI-based) FlashLoaderDemonstrator tool?

    http://www.st.com/web/en/catalog/tools/PF257525

    Let me know

    jerry

    stefano23
    stefano23Author
    Associate II
    March 30, 2016
    Posted on March 30, 2016 at 12:34

    Thank you for reply, Gerardo.

    With ''flash demonstrator'' the issue is resolved. I can reprogram one module (I have two of this, one return unknown device) , performing the entire flash download. At the end the progress bar show in green. After that I release the BOOT0 pin and repower the module, but this doesn't write on the serial. Why?

    Gerardo GALLUCCI
    Gerardo GALLUCCI
    ST Employee
    March 30, 2016
    Posted on March 30, 2016 at 13:24

    Because you erased the bootloader too.

    Starting address of application is 0x08002800.

    Please contact your local distributor to recover that module.

    stefano23
    stefano23Author
    Associate II
    March 30, 2016
    Posted on March 30, 2016 at 15:10

    It isn't possible to have bootloader binaries to flash on the board?

    Stefano
    stefano23
    stefano23Author
    Associate II
    March 30, 2016
    Posted on March 30, 2016 at 15:26

    Please ignore last post, my distributor sended me the boot binaries.

    Thanks a lot for your help.

    Stefano
