Question

LCD Connections for STM32F769I-DISCO

  • October 22, 2018
  • 1 reply
  • 726 views

I can not find the LCD connection parameters for STM32F769I-DISCO.

RD, RS, RST, WR, BLED, CS, in the program mikroPascal Pro for ARM.

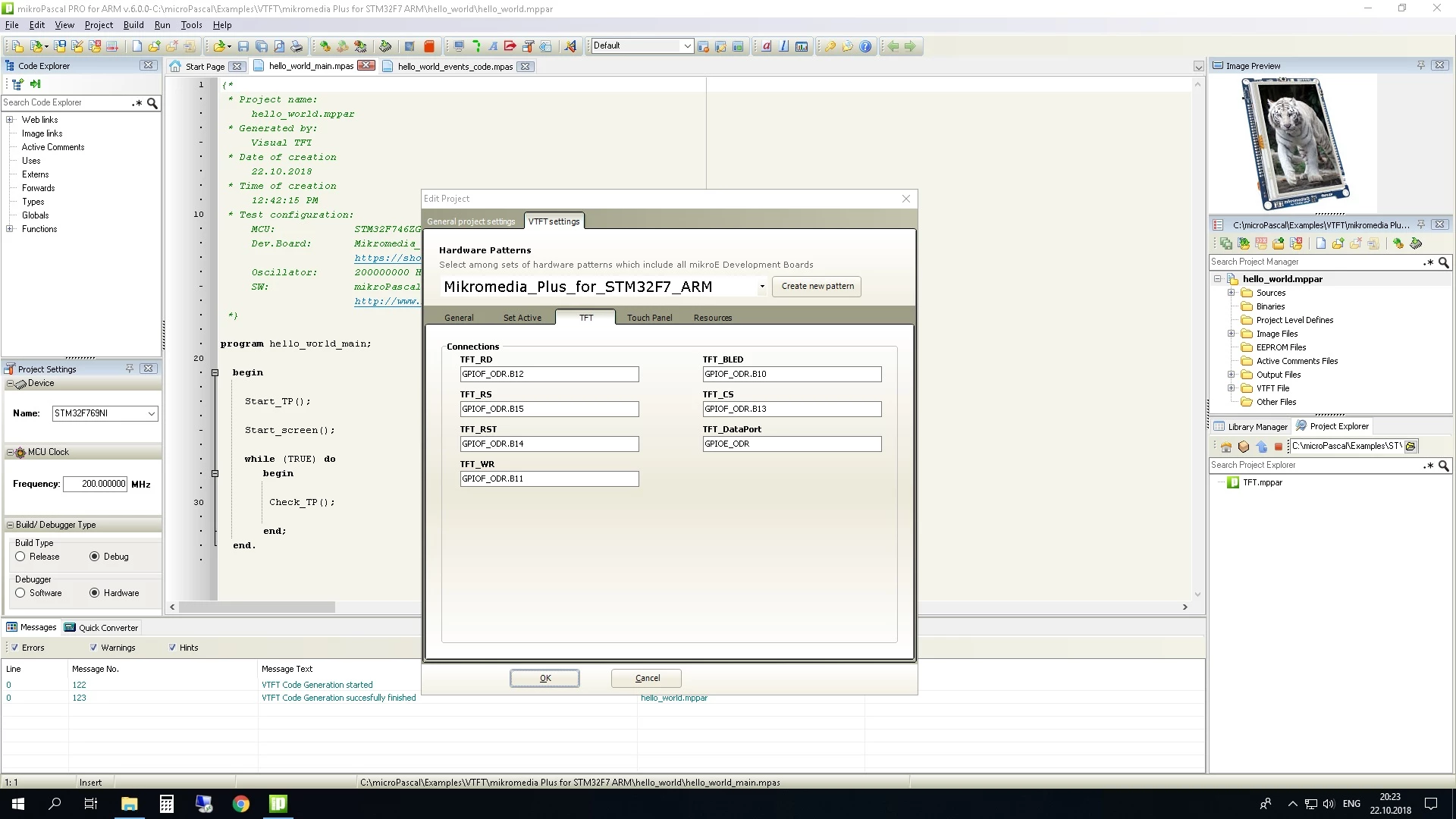

The screenshot shows what the parameters are.

    This topic has been closed for replies.

    1 reply

    Tilen MAJERLE
    Tilen MAJERLE
    ST Employee
    October 22, 2018

    F769 Discovery uses DSI LCD and not 8080 port. Please check if your microPascal supports DSI.
