SPWF04SA Certificate Error: 4 on TLS Port with FRED

Question

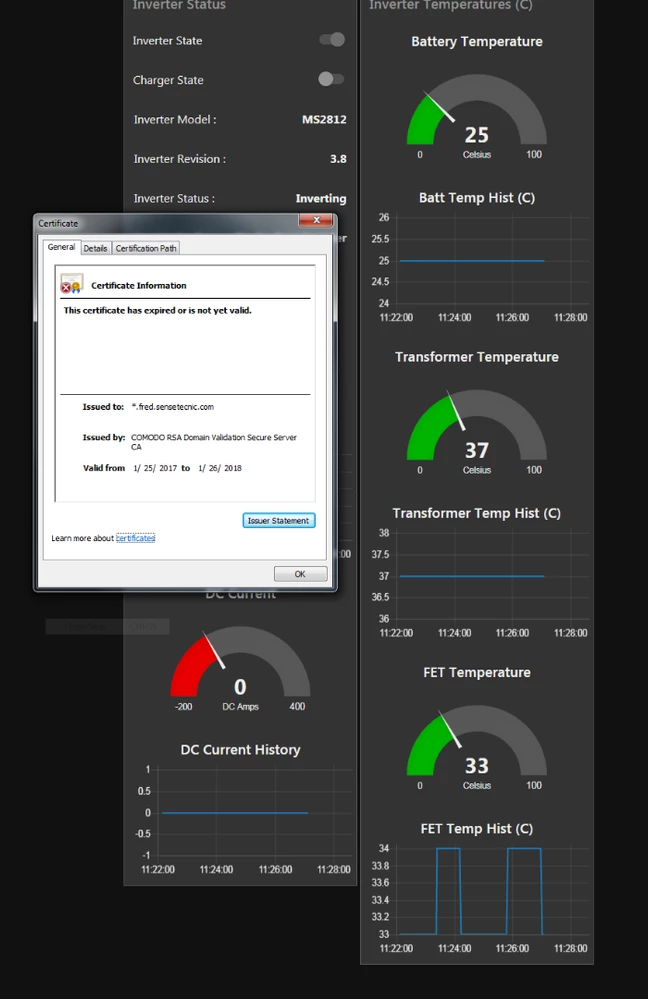

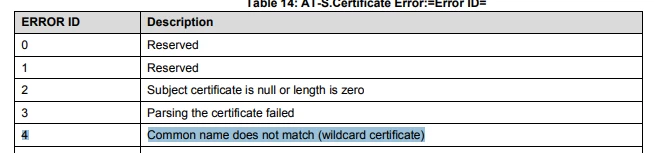

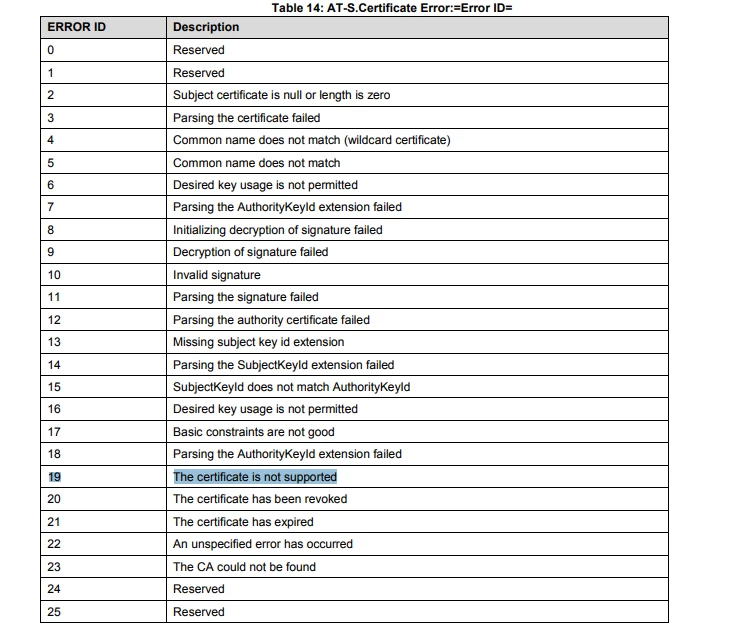

Posted on February 28, 2018 at 21:03I am having an issue with an IOT Provider known as FRED (sensetecnic.com) I have a sandbox up there but I can only access it via HTTPPOST and open sockets on port 80. On port 443 (TLS) I get an error with the certificate on the filesystem...When I try to connect now from my code with the sensetecnic cert on sdcard, I get Error : 4It’s always complaining about the cert even on a simple socket connection to 443. It only works on 80 apparently! >>Station started in STA mode...>>inverterLockoutCounter = 6>>Connecting to socket>>Socket Open OK>>Socket ID: 0AT+S.SOCKON=54.149.86.44,443,NULL,sAT-S.Certificate Error:4AT-S.ERROR:74:Failed to open socket>>Socket Response Time-out!2A : 40 00 00 79 00 00 73 00 01 00 26 19 25 21 2D 00 00 00 02 58 00 FF 00 00 00 00 00 00 E8 57 00 20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00Certificate error #4 corresponds to :  It appears that the common name has a wildcard in it…I wonder if that might be what is going on! Not sure how to get around this...I have attached the CA cert for *.sensetecnicI also get bizarre error messages in the Google Chrome. On my home laptop I do not see these issues...

Mario Ghecea · Answer

Posted on March 01, 2018 at 00:00Further investigation with CURL yields good results, so the problem must be the filesystem CA cert for sensetecnic.comC:\wamp64\www>curl -v POST -H ''Content-Type: application/json'' -d ''{\''Data\'':\''12345\''}'' * Rebuilt URL to: POST/* Could not resolve host: POST* Closing connection 0curl: (6) Could not resolve host: POST* Trying 54.149.86.44...* TCP_NODELAY set* Connected to dreamsmatrix.fred.sensetecnic.com (54.149.86.44) port 443 (#1)* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 1/3)* schannel: checking server certificate revocation* schannel: sending initial handshake data: sending 204 bytes...* schannel: sent initial handshake data: sent 204 bytes* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 2/3)* schannel: failed to receive handshake, need more data* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 2/3)* schannel: encrypted data got 3900* schannel: encrypted data buffer: offset 3900 length 4096* schannel: encrypted data length: 3802* schannel: encrypted data buffer: offset 3802 length 4096* schannel: received incomplete message, need more data* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 2/3)* schannel: encrypted data got 196* schannel: encrypted data buffer: offset 3998 length 4826* schannel: received incomplete message, need more data* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 2/3)* schannel: encrypted data got 708* schannel: encrypted data buffer: offset 4706 length 5022* schannel: sending next handshake data: sending 182 bytes...* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 2/3)* schannel: encrypted data got 107* schannel: encrypted data buffer: offset 107 length 5022* schannel: SSL/TLS handshake complete* schannel: SSL/TLS connection with dreamsmatrix.fred.sensetecnic.com port 443 (step 3/3)* schannel: stored credential handle in session cache> POST /api/public/sensata/wifi HTTP/1.1> Host: dreamsmatrix.fred.sensetecnic.com> User-Agent: curl/7.55.0> Accept: */*> Content-Type: application/json> Content-Length: 16>* upload completely sent off: 16 out of 16 bytes* schannel: client wants to read 102400 bytes* schannel: encdata_buffer resized 103424* schannel: encrypted data buffer: offset 0 length 103424* schannel: encrypted data got 581* schannel: encrypted data buffer: offset 581 length 103424* schannel: decrypted data length: 505* schannel: decrypted data added: 505* schannel: decrypted data cached: offset 505 length 102400* schannel: encrypted data buffer: offset 0 length 103424* schannel: decrypted data buffer: offset 505 length 102400* schannel: schannel_recv cleanup* schannel: decrypted data returned 505* schannel: decrypted data buffer: offset 0 length 102400< HTTP/1.1 200 OK< Server: nginx/1.4.6 (Ubuntu)< Date: Wed, 28 Feb 2018 22:33:18 GMT< Content-Type: application/json; charset=utf-8< Content-Length: 45< Connection: keep-alive< x-powered-by: Express< vary: Origin< x-content-type-options: nosniff< etag: W/''2d-da/5GfuSQy5HVkxT86mZqzXvw1s''< set-cookie: sts.fred-community.sid=s%3AvIkIRLGpKS2T_PTOItcpJCkBJdl9zZKe.fvs7DFwkjOqYc7IlecdT0d%2Bc0D%2BtBV41d%2BSpAhiI1CQ; Domain=.fred.sensetecnic.com; Path=/; HttpOnly<{''buttonInverter'':''ON'',''buttonCharger'':''OFF''}* Connection #1 to host dreamsmatrix.fred.sensetecnic.com left intactPayload checks OK in cloud...So no issues that I can see connecting to FRED via socket 443 on TLS.I try the same thing in console on STM32CubeExpansion_WIFI1_V3.0.2AT+S.HTTPPOST=dreamsmatrix.fred.sensetecnic.com,/api/public/magnum/wifi?Data=12345,80,0,,,,{''buttonInverter'':''ON'',''buttonCharger'':''OFF''}AT-S.OKAT+S.HTTPPOST=dreamsmatrix.fred.sensetecnic.com,/api/public/sensata/wifi?Data=12345,443,2,,,,AT-S.Certificate Error:19AT-S.Http Client Error:2AT-S.ERROR:111:Request failedWhy would the certificate be unsupported ?!
