STEVAL-IDB007V1 scan for advertisement data

Posted on January 17, 2018 at 00:41

I am currently trying to scan and log advertisement data using STEVAL-IDB007V1.

Advertisement data will be coming out of separate BLE compatible module.

Would this be possible using BlueNRG GUI and python script?

Could anyone point me to a right direction for this?

Thank you

#ble #steval-idb007v1

This topic has been closed for replies.

Best answer by Winfred LU

Posted on January 19, 2018 at 05:14

Hi KC,

Yes, it is possible to use BlueNRG GUI or script to scan and log advertisement data.

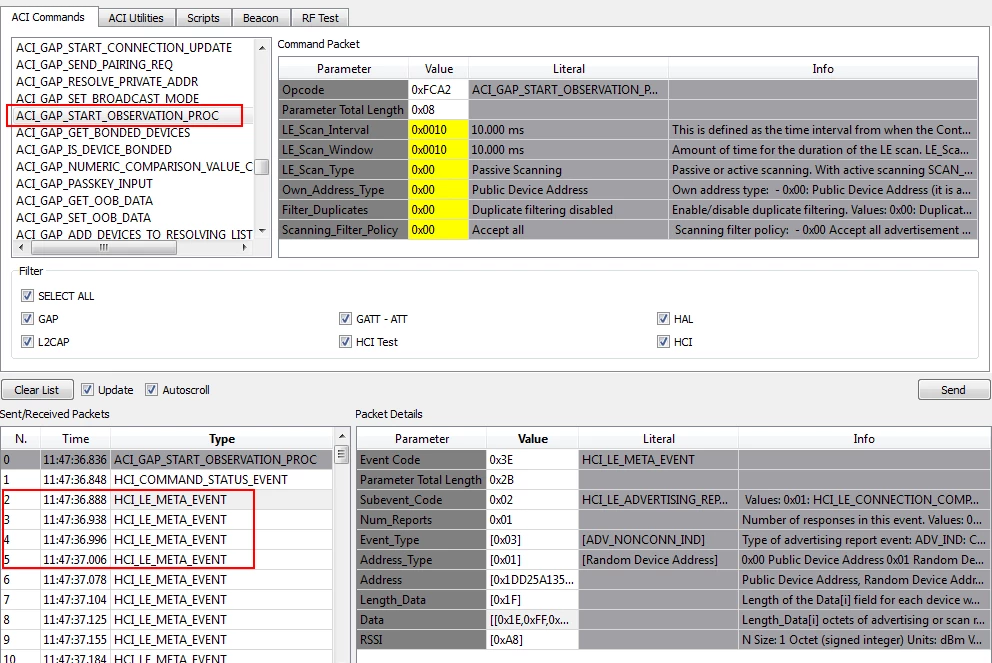

With GUI,

1. in ACI Utilities tab, click ''Init Device''

2. in ACI Commands tab, send ACI_GAP_START_OBSERVATION_PROC

3. Advertisement data will be presented in HCI_LE_META_EVENT

Regards,

Winfred
