Sensor tile footprint - pinout, pitch, etc ?

  • May 22, 2026
  • 2 replies
  • 100 views

The only documentation on the Product Page is the Data Brief - which is extremely brief!

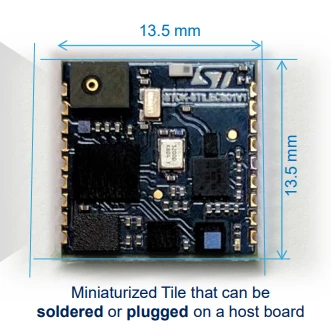

This marketing presentation gives overall dimensions (even those aren't in the Data Brief):


It tells us that it "can be soldered or plugged on a host board" - but there's no pinout or footprint details.



2 replies

AScha.3
AScha.3
Super User
May 22, 2026

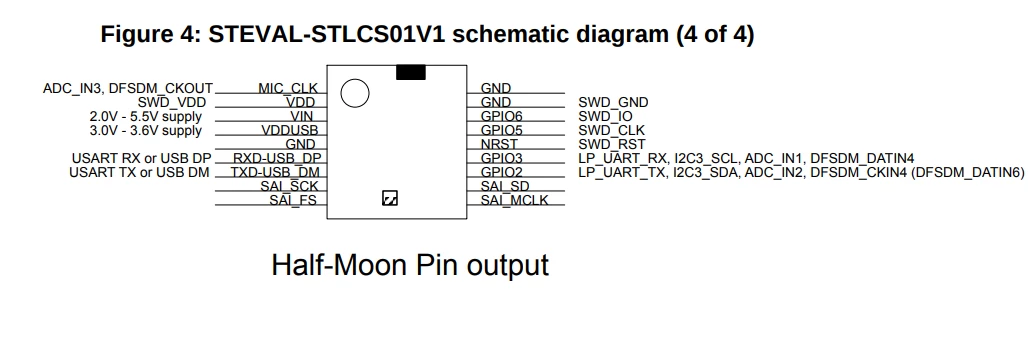

Look at the circuit...

https://www.st.com/resource/en/schematic_pack/steval-stlcs01v1_schematic.pdf




also Gerber files ...




"If you feel a post has answered your question, please click ""Accept as Solution""."
    Andrew Neil
    Andrew NeilAuthor
    Super User
    May 22, 2026

    That also gives only pinout - not pitch.



    PS:

    You added mention of the Gerbers.

    Yes, I'm sure it is in there - but, surely, this should be documented in the User Manual, or other human-readable document(s) ?

    Chip datasheets give dimensioned package drawings ...

    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      AScha.3
      AScha.3
      Super User
      May 22, 2026

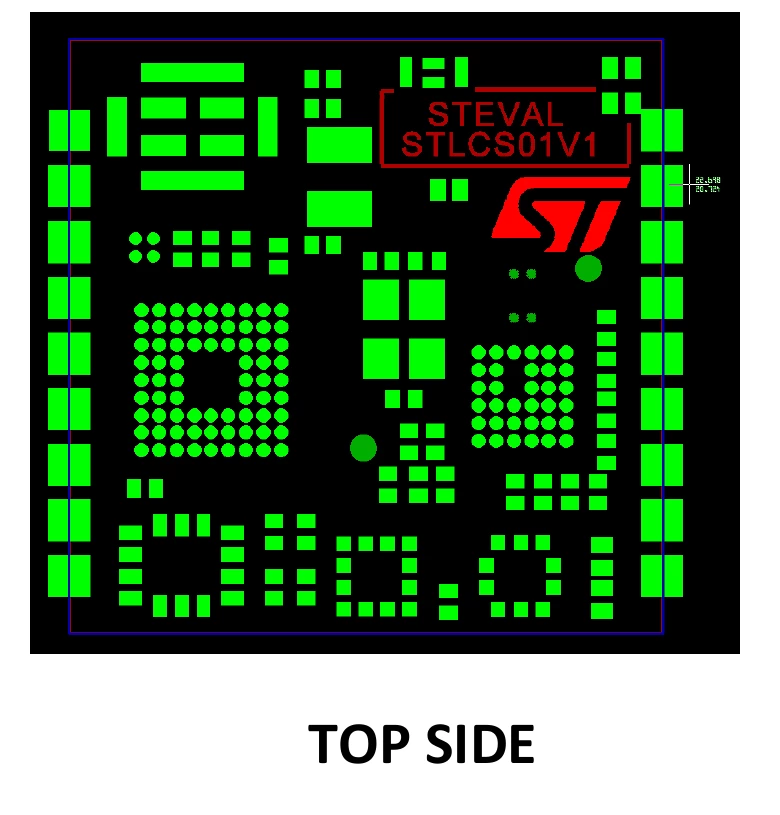

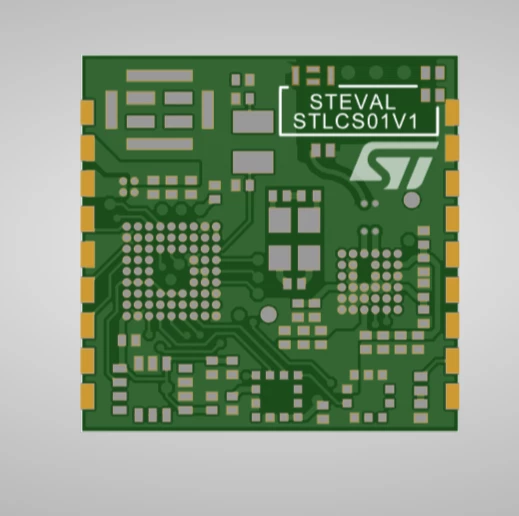

      see the gerber files... :)




      "If you feel a post has answered your question, please click ""Accept as Solution""."
      Andrew Neil
      Andrew NeilAuthor
      Super User
      May 22, 2026

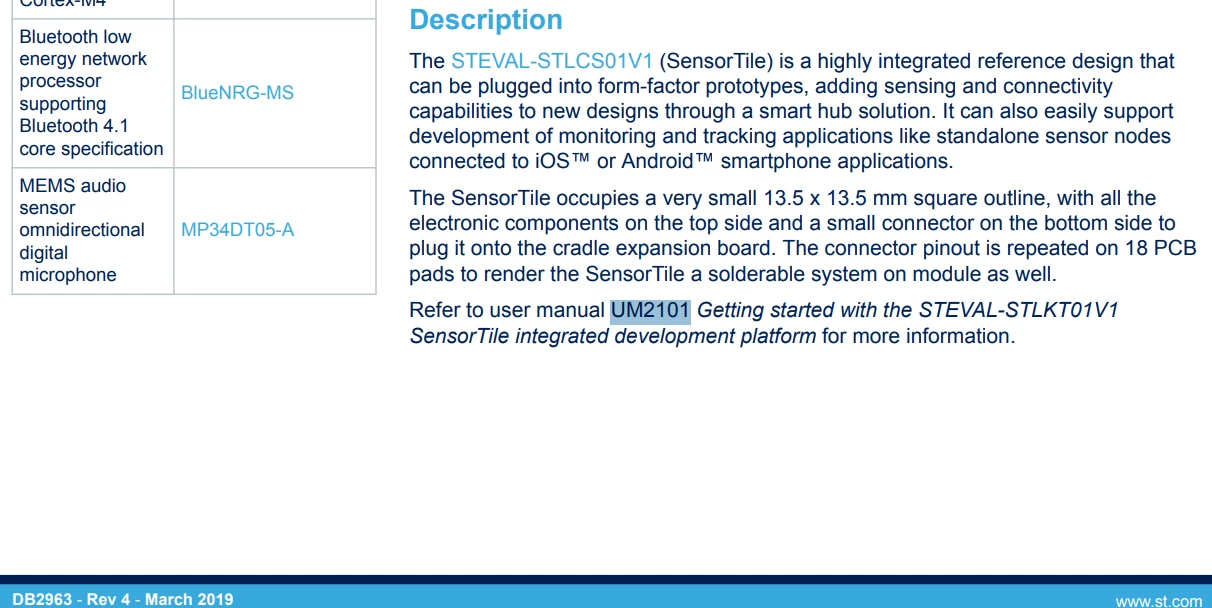

      OK, so the Data Brief does mention UM2101:


      but not as a clickable link, and it is not mentioned on the Product Page

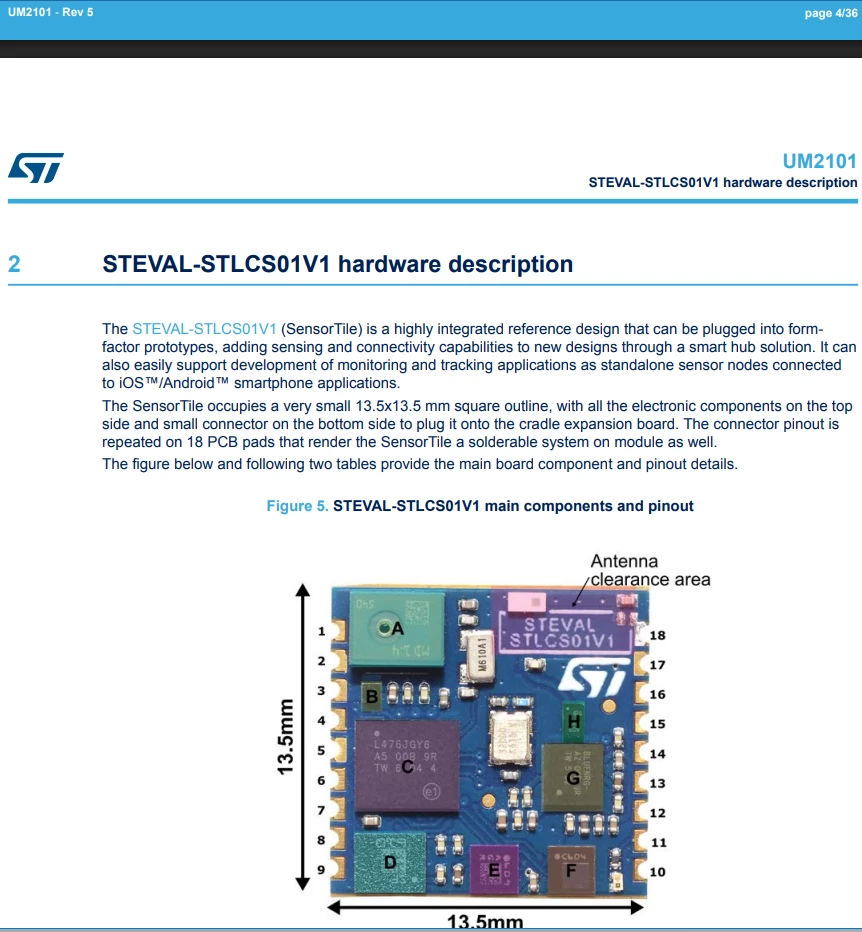

      UM2101 does give the pinout:


      but still not the pitch of the connections.
