Question

STDV Problem

  • May 12, 2018
  • 3 replies
  • 11940 views
Posted on May 12, 2018 at 15:28

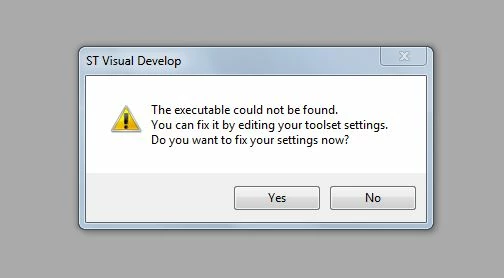

Hi everyone. I am working with STDV development tool. When I want to build the program, the message 'the executable can not be found' appear. How can I modify the settings to solve this problem??

    3 replies

    A
    Artur IWANICKI
    ST Employee
    May 14, 2018
    Posted on May 14, 2018 at 09:26

    Hello,

    Which C compiler you would like to use in your project?

    May I ask you to pass me a screenshot from your settings of the project, please (please click left button on mouse over the project name and select Settings, then please select General tab)?

    First thing which I would check is whether the toolset paths are set correctly (compiler, linker).

    Thank you in advance,

    Best Regards,

    Artur

    B
    BAS-BLEU
    Associate III
    March 15, 2025

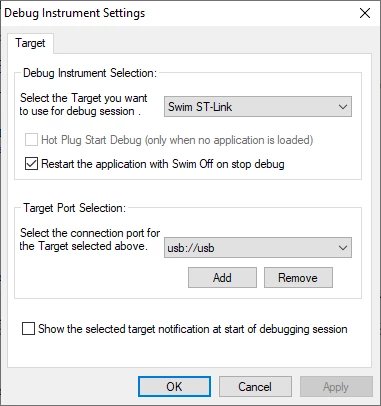

    COSMIC compiler working fine. compiled wwithout error, then build no issue, then burn by stVP help of cloned stlink-v2 usb type ,no issue programe run at MCU. but when i go to debug in STVD it says communication error 30006. have a look screen shot. if stlink cloned i am using swim pin working when programe uploading, but debuging mode not working. taken screen shot from logic analyzer, if you would like to deep dive.

    B
    BAS-BLEU
    Associate III
    March 10, 2025

    STVP=St visual programmer, STVD=St visual Develop, NOW STDV=??? i want to debug stm8 series MCu. what software i need?

    AA1
    AA1
    Senior III
    March 15, 2025

    Use STVD. STVD already have STVP. You should start with a development board and it already have ST-Link.



    B
    BAS-BLEU
    Associate III
    March 15, 2025

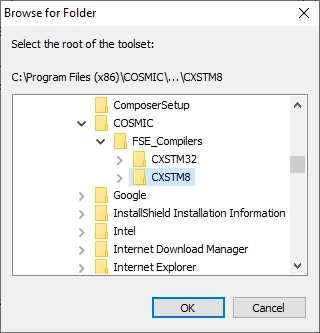

    if yiu are using cosmic compiler then set project specifif toolset path(you will find project->setting->project setting  C:\Programe Files(x86)\COSMIC\FSE_Compilers\CXSTM8
