Question

Generated code will not compile when using multiple I2C Blocks

  • December 7, 2018
  • 0 replies
  • 735 views

When I use one I2C block the generated code will compile without errors. When I use 2 I2C blocks on different peripheral channels. My generated code will not compile error free. I am wondering if others run into similar issues, when using multiple I2C blocks in a simulink project.

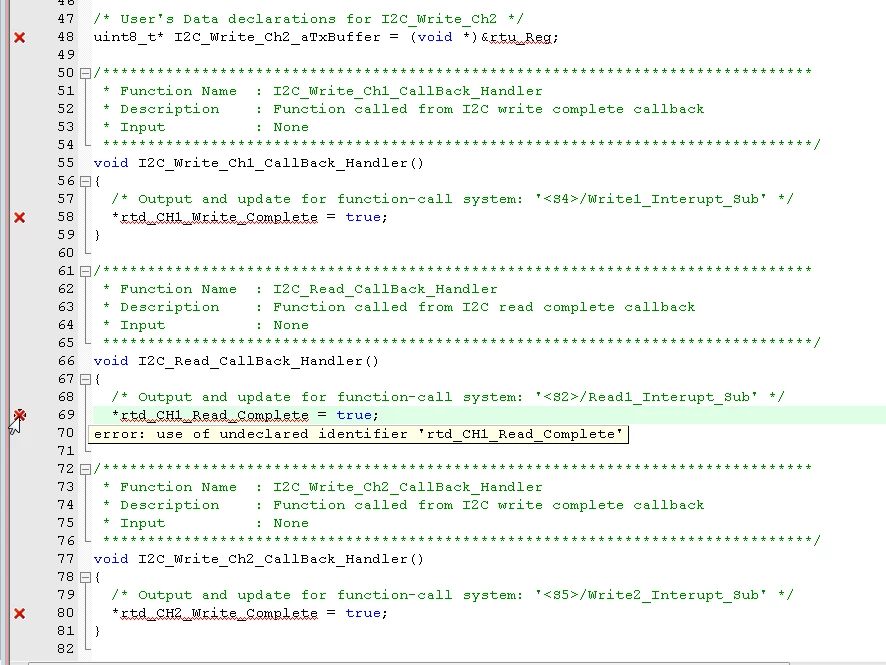

These are the errors I get.

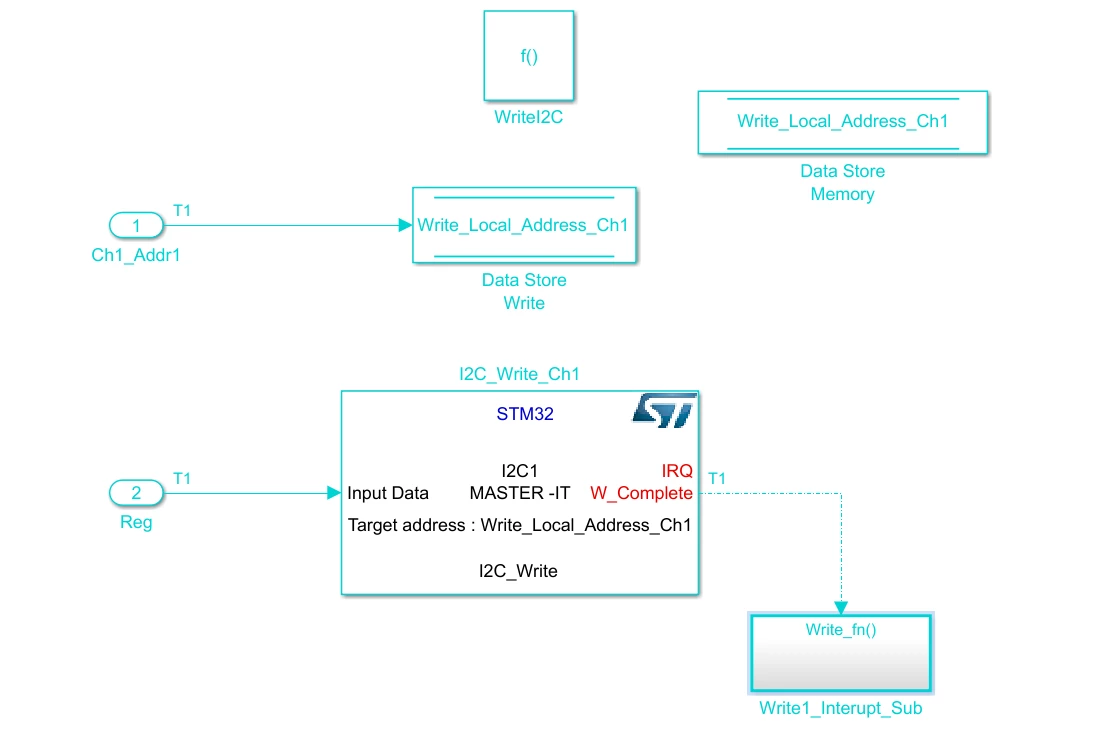

Blocks are called here

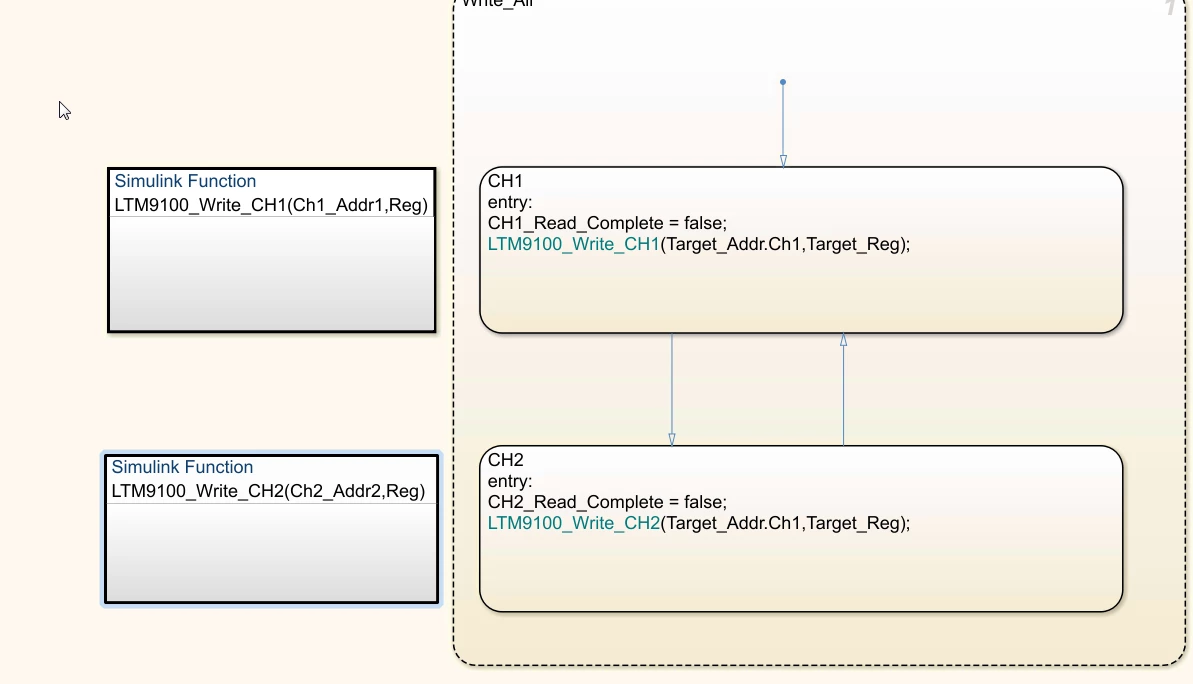

Inside one of the function calls


Inside the Write Complete function call

This topic has been closed for replies.
