How and where to create Binaries folder in TrueSTUDIO

Hi @mandrake​ ,

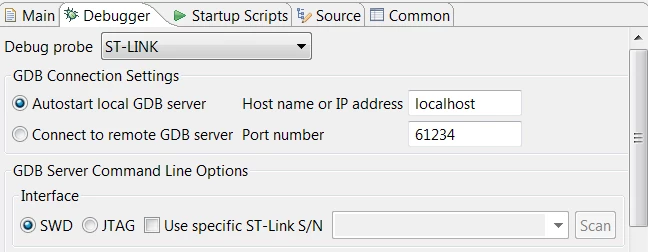

• You need to check the "Debug Configuration" (Run > Debug Configurations...) . From the "Debugger" tab, select the suitable Debug probe (ST-Link, Segger J-link...)

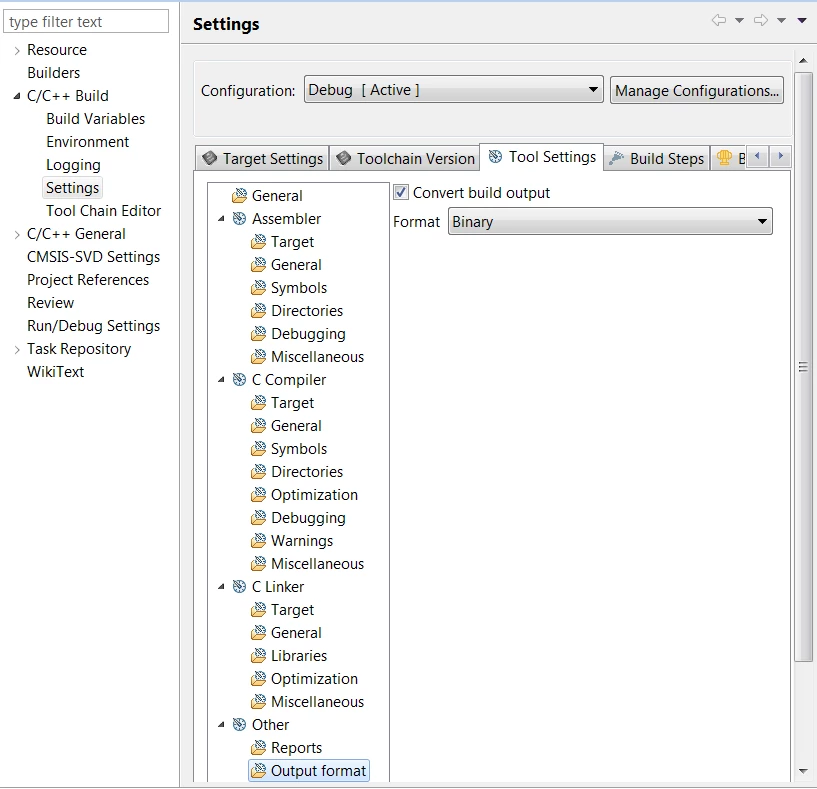

• In order to generate the binary file with the build, you have to update "Build Settings" (Project > Build Settings). Go to "Tool Settings" tabe, Then in "Other", select the output format you want:

-Amel

Thanks for the suggestions. I tried both. No joy.

Here is the build command.

13:03:23 **** Rebuild of configuration Debug for project Project001 ****

Info: Internal Builder is used for build

arm-atollic-eabi-gcc -c ..\Libraries\STM32F4xx_StdPeriph_Driver\src\stm32f4xx_pwr.c -mthumb -mcpu=cortex-m4 -mfloat-abi=hard -mfpu=fpv4-sp-d16 -std=gnu11 -DSTM32F4XX -DSTM32F40XX -DUSE_STDPERIPH_DRIVER -I../src -I../Libraries/CMSIS/Include -I../Libraries/Device/STM32F4xx/Include -I../Libraries/STM32F4xx_StdPeriph_Driver/inc -O0 -ffunction-sections -fdata-sections -g -fstack-usage -Wall -specs=nano.specs -o Libraries\STM32F4xx_StdPeriph_Driver\src\stm32f4xx_pwr.o

13:03:23 Build Finished (took 204ms)

Can you spot what is missing that prevents the Binaries folder from being created?

btw, how did that university name appear in my forum ID instead of the preferred Community Member?

How can I change my forum ID?
