Ramazan Gülcan

Associate III

Question

How to generate a .bin file in atollic?

Forum|Forum|8 years ago
February 19, 2018
2 replies
3581 views

Posted on February 19, 2018 at 19:39

Hi friends;

How to generate a .bin file in atollic?

#.bin #atollic

TrueSTUDIO

This topic has been closed for replies.

Senior III

Posted on February 20, 2018 at 09:43

Hello,

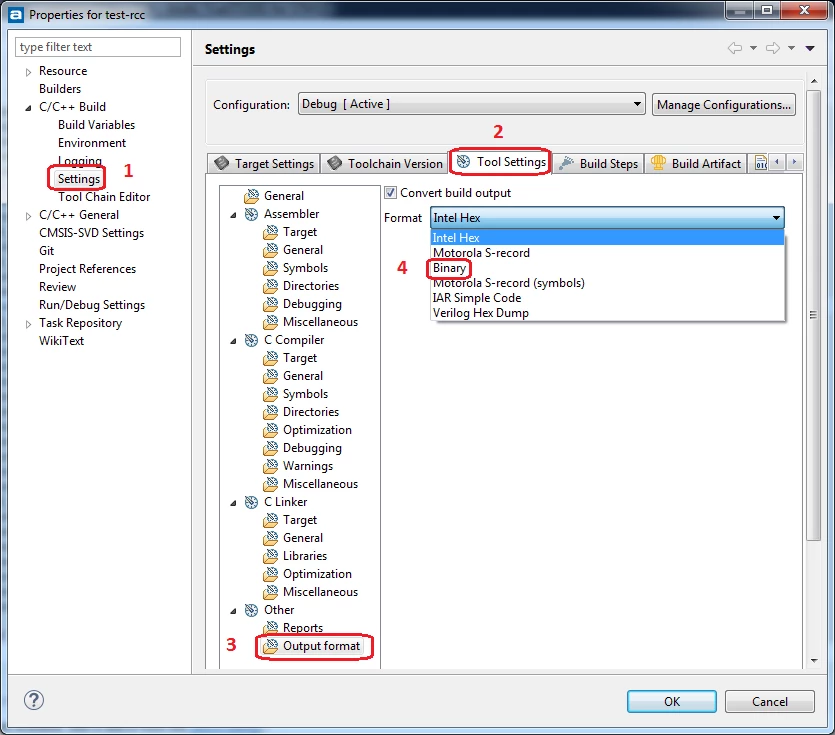

From main menu please select Project -> Build Settings. Then please follow steps shown below.

Regards

Szymon

Ramazan GülcanAuthor

Associate III

Posted on February 20, 2018 at 09:59

thank you for the answer.

I did it. but this feature does not produce .bin.

It generates .binary and this file does not open in Stm32 Utility.

Regards

Ramazan

Senior III

Posted on February 20, 2018 at 10:13

Have you tried renaming it to .bin ?

Guru

Posted on February 20, 2018 at 15:46

Or use your own objdump command line to generate the file as desired.

I've previously published an ELFARM utility that generates .BIN and .HEX from ELF/AXF files, the original Atollic eval version wouldn't emit these forms.

Anyway, review the content of the file (use File Manager, or Hex Editor of choice), it is just binary data, the file extension is only of consequence to the app that tried to load it or control the file open dialog.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..

Guru

Posted on February 20, 2018 at 15:50

,

,

Looks like the forum move ate the attachments to the original thread. Will have to go fix that at some point

,
