Infinite loop in HAL_RCC_GetSysClockFreq() in HAL_RCC_ClockConfig() onNucleo STM32F446RE
I am using the latest System Workbench on Nucleo to set up for experiments.
My code is as follows:
#define SYS_CLOCK_FREQ_50_MHZ 50
int main(void)
{
HAL_Init();
SystemClock_Config_HSE(SYS_CLOCK_FREQ_50_MHZ);
GPIO_Init();
UART2_Init();
TIMER2_Init();
...The SystemClock_Config_HSE(...) is as follows:
void SystemClock_Config_HSE(uint8_t clock_freq)
{
RCC_OscInitTypeDef Osc_Init;
RCC_ClkInitTypeDef Clock_Init;
uint8_t flash_latency=0;
Osc_Init.OscillatorType = RCC_OSCILLATORTYPE_HSE | RCC_OSCILLATORTYPE_LSE | RCC_OSCILLATORTYPE_HSI ;
Osc_Init.HSEState = RCC_HSE_ON;
Osc_Init.LSEState = RCC_LSE_ON;
Osc_Init.HSIState = RCC_HSI_ON;
Osc_Init.PLL.PLLState = RCC_PLL_ON;
Osc_Init.PLL.PLLSource = RCC_PLLSOURCE_HSE;
switch(clock_freq)
{
case SYS_CLOCK_FREQ_50_MHZ:
Osc_Init.PLL.PLLM = 4;
Osc_Init.PLL.PLLN = 50;
Osc_Init.PLL.PLLP = RCC_PLLP_DIV2;
Osc_Init.PLL.PLLQ = 2;
Osc_Init.PLL.PLLR = 2;
Clock_Init.ClockType = RCC_CLOCKTYPE_HCLK|RCC_CLOCKTYPE_SYSCLK
|RCC_CLOCKTYPE_PCLK1|RCC_CLOCKTYPE_PCLK2;
Clock_Init.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;
Clock_Init.AHBCLKDivider = RCC_SYSCLK_DIV1;
Clock_Init.APB1CLKDivider = RCC_HCLK_DIV2;
Clock_Init.APB2CLKDivider = RCC_HCLK_DIV1;
flash_latency = 1;
break;
case SYS_CLOCK_FREQ_84_MHZ:
<< These cases are not relevant here>>
default:
return ;
}
if (HAL_RCC_OscConfig(&Osc_Init) != HAL_OK)
{
Error_handler();
}
if (HAL_RCC_ClockConfig(&Clock_Init, flash_latency) != HAL_OK)
{
Error_handler();
}
/*Configure the systick timer interrupt frequency (for every 1 ms) */
uint32_t hclk_freq = HAL_RCC_GetHCLKFreq();
HAL_SYSTICK_Config(hclk_freq/1000);
/**Configure the Systick
*/
HAL_SYSTICK_CLKSourceConfig(SYSTICK_CLKSOURCE_HCLK);
/* SysTick_IRQn interrupt configuration */
HAL_NVIC_SetPriority(SysTick_IRQn, 0, 0);

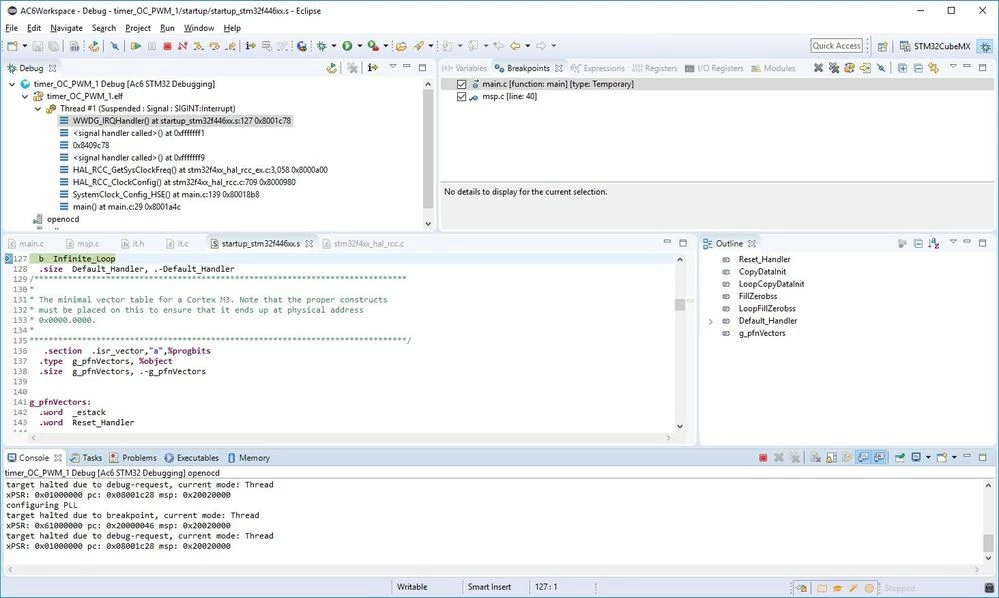

}Now when I build, load the program and try running it in the debugger I see that it is stuck in an infinite loop in HAL_RCC_ClockConfig(...). Why did it go into the WWDG_IRQHandler()?

This EXACT same code runs fine under Keil MDK.

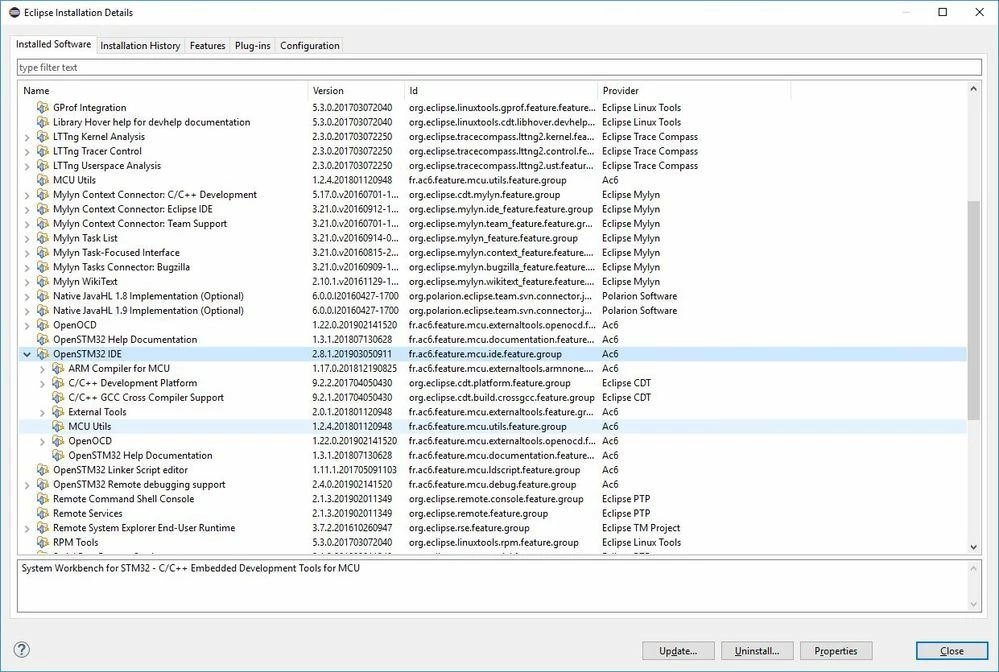

The version of System Workbench I am using is:

Any ideas? I tried it with a previous version of System Workbench and I have the same issue.
Thank you
Subu
