Stack length wrong in Atollic linker file

  • March 22, 2018
  • 2 replies
  • 1079 views
Posted on March 23, 2018 at 00:11

Hi,

I had a problem (now solved) of hard fault on STM32F303K8 MCU using TrueSTUIDIO V 9.0.0.

The cause was the wrong linker file.

In the file generated by TrueSTUDIO for STM32F303K8, the stack was allocated to addres 0x20004000.

This memory location is in a reserved area. At the first access to the stack after reset, a hard fault was generated.

The data sheet of the STM32F303K8 indicates that ram ends at 0x20003000.

With the stack correctly located at this value everything works correctly.

Attached the right and the wrong files.

Giampaolo

#atollic-truestudio #linker-file #stm32f303 #hard-fault
This topic has been closed for replies.

2 replies

Andrew Neil
Andrew Neil
Super User
March 23, 2018
Posted on March 23, 2018 at 09:30

So when you say, 'Bug

s

on file

s

provided by Atollic TrueSTUDIO' - it's really just 1 bug in 1 file?

It would be more helpful if you changed the title to something specific; eg, 'Stack length wrong in Atollic linker file'

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
Giampaolo Pantaleoni
Giampaolo PantaleoniAuthor
Associate II
March 23, 2018
Posted on March 23, 2018 at 10:25

Hi,

I completely agree with you, but I don't know how to change the title.

Giampaolo

Andrew Neil
Andrew Neil
Super User
March 23, 2018
Posted on March 23, 2018 at 11:07

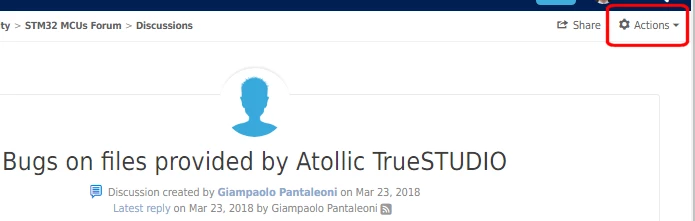

There is a gear wheel icon at the top of the thread marked 'Actions' - it's in there:

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
