STM32-MAT/Target Simulink blocksets for pure simulation

  • March 24, 2017
  • 1 reply
  • 1459 views
Posted on March 24, 2017 at 09:50

Hello together,

Is it possible to use the Simulink blocks of the SMT32 peripherals (out of the Target Support Package - STM32 Adapter) in 'pure simulations' (simulation / Debug without deploying it to the target hardware)? Or can these blocks only used for the code generation process?

Desired application:

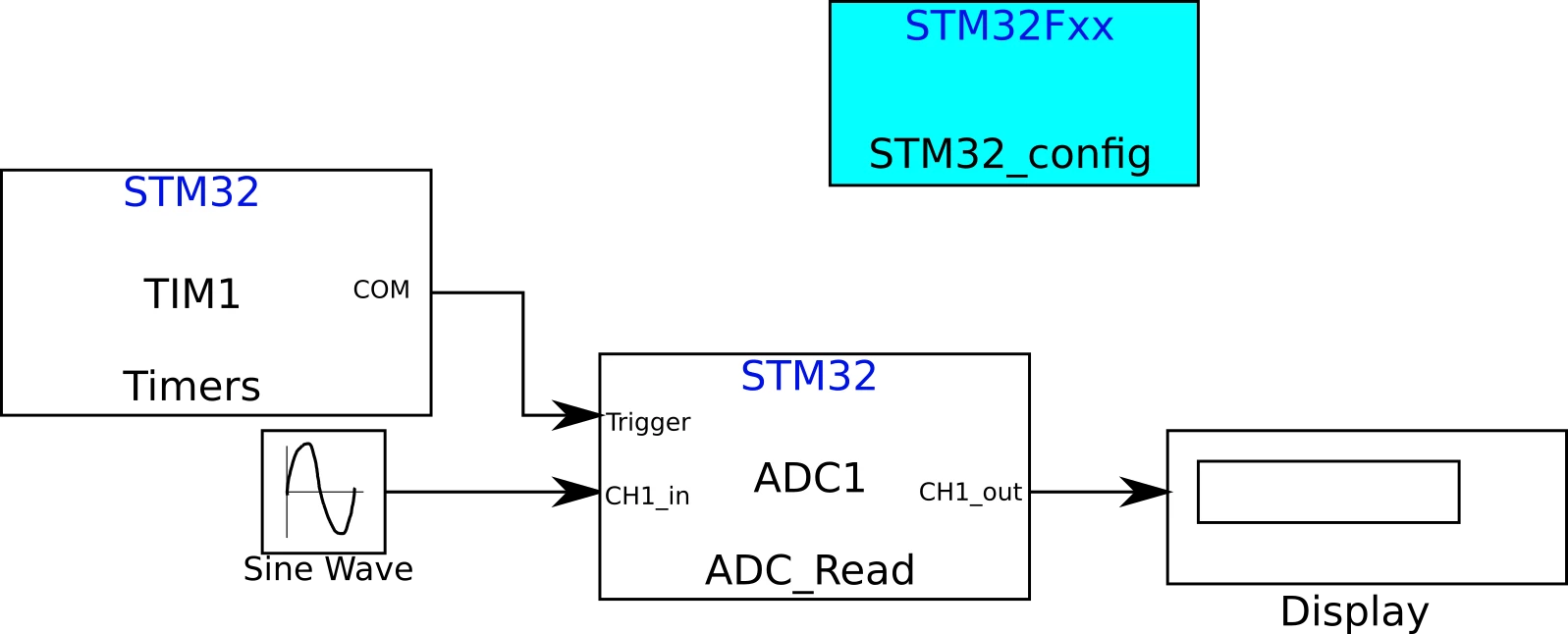

Trigger the conversion process of the ADC with an Timer; the ADC Channel imput will be simulated with a Simulink block and the output of the ADC will be tracked with a Display (Simulink block). See sketch in attachment.

Thank you and best regards.

Stefan

#stm32-mat/target-matlab #stm32 #simulink
This topic has been closed for replies.

1 reply

I
Imen.D
Technical Moderator
March 24, 2017
Posted on March 24, 2017 at 10:19

Hello Stefan,

SMT32 blocks are only for code generation and peripherals are not simulated.

For the simulation, s

imulation data must be given then

replaced by data from the

peripherals

in code generation. e r

eplace by the drivers (blocks STM32)

Hope this helps you.

Imen

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"
Stefan Stark
Stefan StarkAuthor
Associate II
March 24, 2017
Posted on March 24, 2017 at 10:21

Hello Imen,

that helps a lot. Thank you.

Are there any possibilities to simulate the STM32 peripherals? (other toolboxes)

Regards

Stefan

I
Imen.D
Technical Moderator
March 24, 2017
Posted on March 24, 2017 at 10:35

No Stefan

:(

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"
