STM32F4 Discovery Board Control Register Problem

  • June 28, 2019
  • 0 replies
  • 579 views

I open an empty project without any settings.

#include "stm32f4xx.h"
#include "stm32f4_discovery.h"

int main(void)
{
 while (1)
 {

 }
}

void EVAL_AUDIO_TransferComplete_CallBack(uint32_t pBuffer, uint32_t Size){
 /* TODO, implement your code here */
 return;
}

uint16_t EVAL_AUDIO_GetSampleCallBack(void){
 /* TODO, implement your code here */
 return -1;
}

and I observe the values in the CR register.

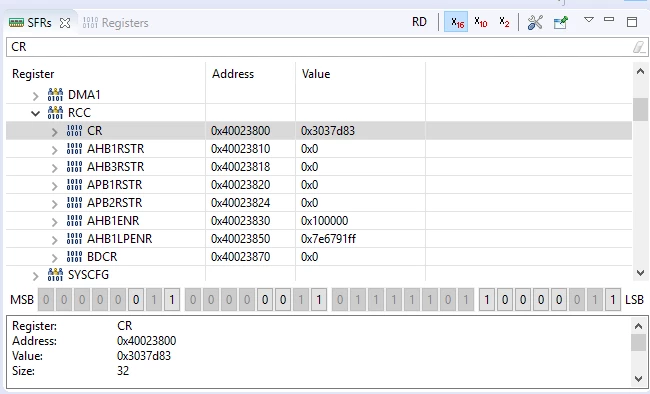

As seen in the photo it comes full of many bits. Even both HSE and HSI are active. I was just expecting HSI to be active because the reset value of this register is 0x82.

I also cannot reset the values of the bits when I add the RCC->CR=0x82; code to the program. Where am I making a mistake?
