Bug in EVAL6480H-DISC document

Posted on January 18, 2016 at 13:21

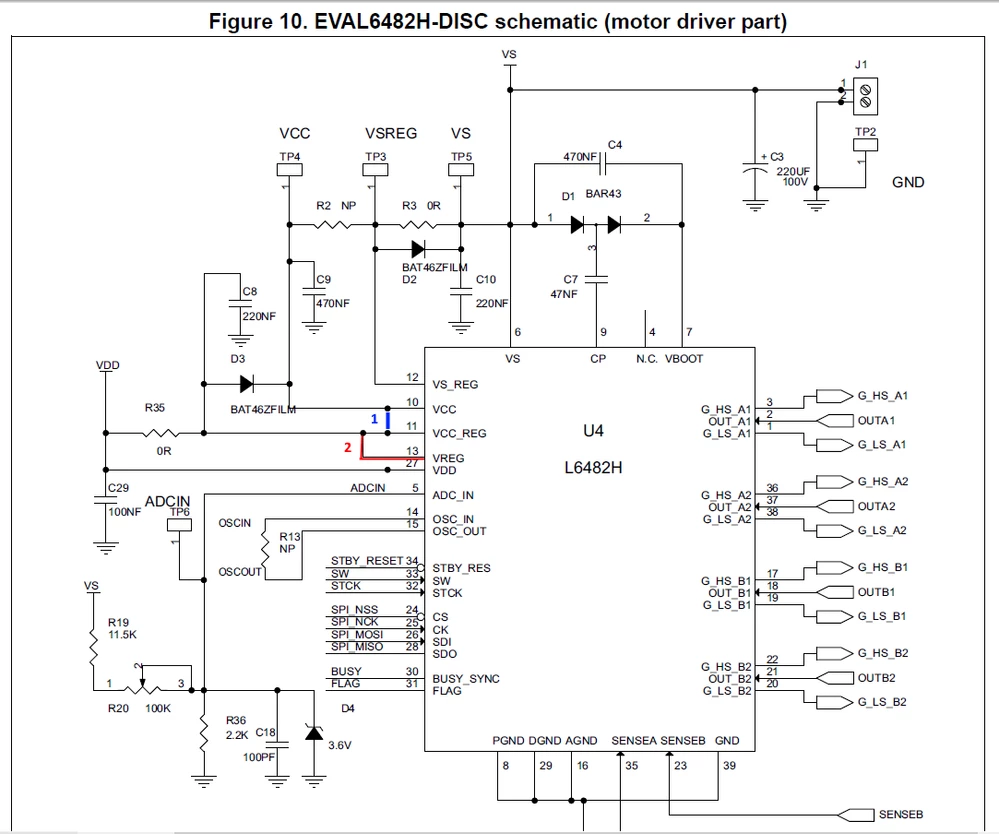

I think there is a mistake in the scheme:

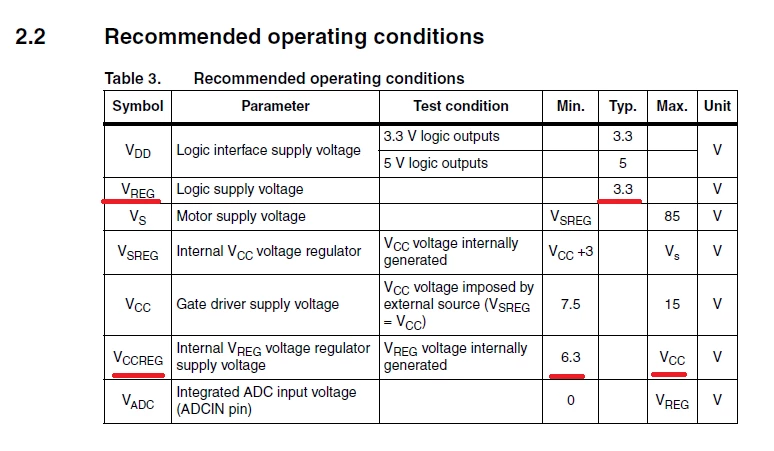

Checking data sheet (and a board built by myself), the red line (2) is wrong, and it is necessary the blue line (1).

I have destroyed 3 L6482 chips before to find out what was happening.

Now, who pays my three L6482H chips...?

This topic has been closed for replies.

Associate II

Posted on March 19, 2016 at 20:57

i am also working on L6480 Stepper motor Driver.

i also follow the diagram from the eve board.

so now i am getting confuse.do i need to follow your diagram or orginal means eve board diagram.

i hope St support will give us some reason of this issue.
