2 replies

Tesla DeLorean
Tesla DeLorean
Guru
October 25, 2024

Earlier post, you don't need to post things three times.

https://community.st.com/t5/other-hardware/diode-g86-need-data/td-p/735765

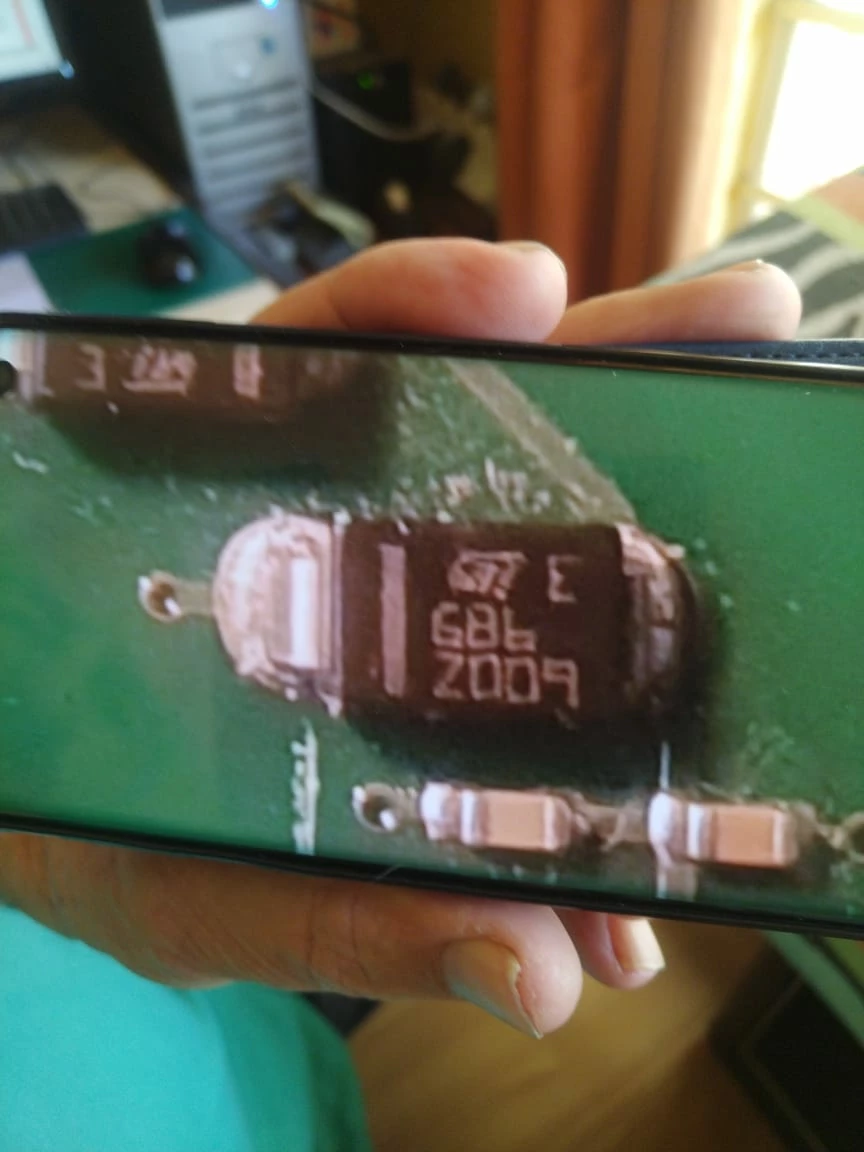

Marking hard to read, is the second diode on the board the same?

Are we sure these are authentic? marking look awfully rough

@Peter BENSCH

ST DIODE 68B

ST DIODE G8B



Wrong style for BZW50-68B axial

Perhaps SM15T68A ?

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
Peter BENSCH
Peter BENSCH
Technical Moderator
October 25, 2024

It’s really hard to read, but it is GB6 = STPS1L60A, a Schottky in SMA.

Hope that helps?

Regards
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    D
    dsgnAuthor
    Associate
    November 5, 2024

    Good morning.

    I apologize for the delay, have tried and it is not working.

    it should start clipping at approximately 82 volts according to a unit that is still working

    Thank you

    Denis Norton
