L6480: Power & Comm problem

Posted on August 21, 2014 at 16:45

I'm currently experiencing a problem in which I cannot get the L6480 device to communicate - I think this may be due to a device power up fault but I was hoping someone on here could help!

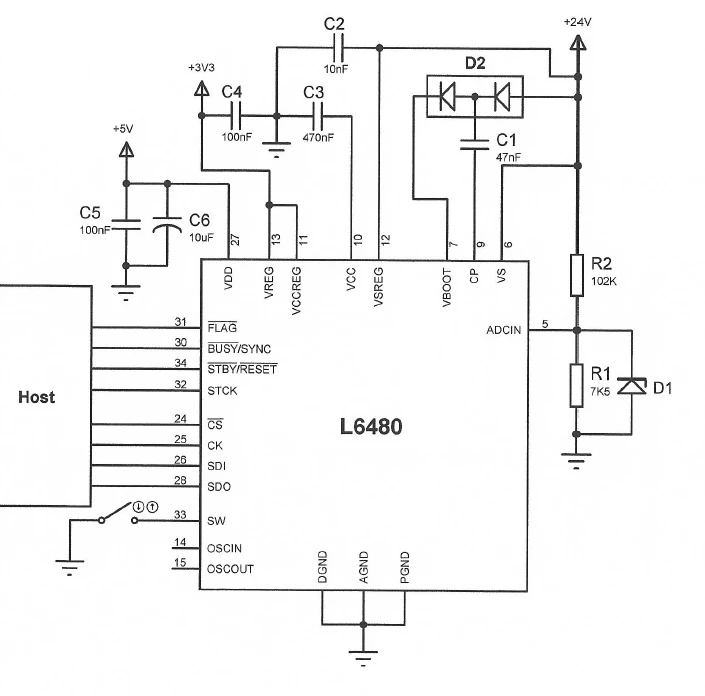

I've attached a simplified version of the circuit diagram, outlining the power connections that I've made in my design - if I've made any mistakes with the power connections then please let me know! The host device is an 8 bit Atmel AVR device (ATmega32A), and I'm working with +5V logic and a motor supply of +24V.

I measured the voltages on the power pins to be:

VS - +24V

VBOOT - +24V

VSREG - +24V

VCC - +2V5 (!?)

VCCREG - +3V3

VREG - +3V3

VDD - +5V

I think the device is still in 'power-up' condition as VCC is below the minimum as stated in section 6.1 of the datasheet, and also the 2MHz signal coming from the OSCOUT pin is neither a square wave or a sine wave which I would have assumed it would be?

I've attached an image of the actual signal from an oscilloscope which shows the waveform that I'm getting.

Any feedback will be greatly appreciated!!!

#spi #power-up #cspin #l6480
