Looking for datasheet on diode

  • July 4, 2024
  • 4 replies
  • 2106 views

From what I can read on this diode it is from ST for sure, and it says VU beside the logo, the next line is M R, and the last line is GP922.



Any help would be appreciated.IMG_20240703_171230[1].jpgIMG_20240703_172423[1].jpg

Best answer by Peter BENSCH

Thank you for the legible photo!

The marking MR stands for the SM6T30CA, a bidirectional 600W, 25.6V TVS in SMB package.

Hope that helps?

Good luck!
/Peter

4 replies

Peter BENSCH
Peter BENSCHAnswer
Technical Moderator
July 4, 2024

Thank you for the legible photo!

The marking MR stands for the SM6T30CA, a bidirectional 600W, 25.6V TVS in SMB package.

Hope that helps?

Good luck!
/Peter

In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    A
    Agnortan83
    Visitor II
    July 24, 2025

    Hi, I have diode with logo ST with code GP 113

    Which's diode ?

    Any help would be appreciated.

    Tesla DeLorean
    Tesla DeLorean
    Guru
    July 24, 2025

    Perhaps provide a picture in context. Have it be large, clear and in focus..

    GP113 is a production location / date code, it is not product ID marking.

    The product ID is typically a two or three letter code. Usually alpha.

    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    A
    Agnortan83
    Visitor II
    July 24, 2025

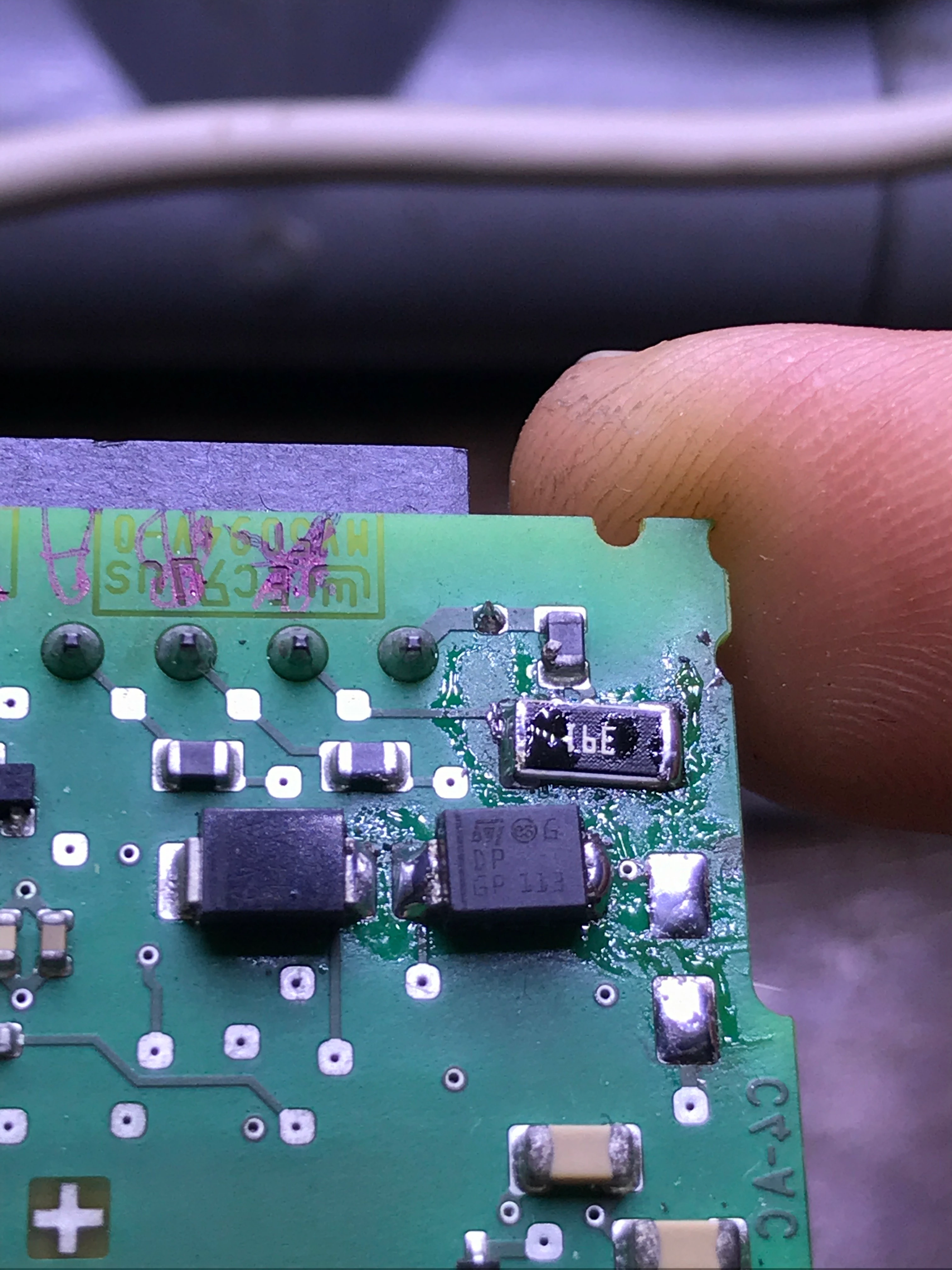

    2025-07-24 22.45.jpg

    Tesla DeLorean
    Tesla DeLorean
    Guru
    July 24, 2025

    DP -> SM6T10A

    https://www.st.com/resource/en/datasheet/sm6t100a.pdf#page=10

    Looks like it's already been replaced, the original part is the one on the left, is the marking on that legible?



    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    A
    Agnortan83
    Visitor II
    July 24, 2025

    Yes, it's 6V8A 18A

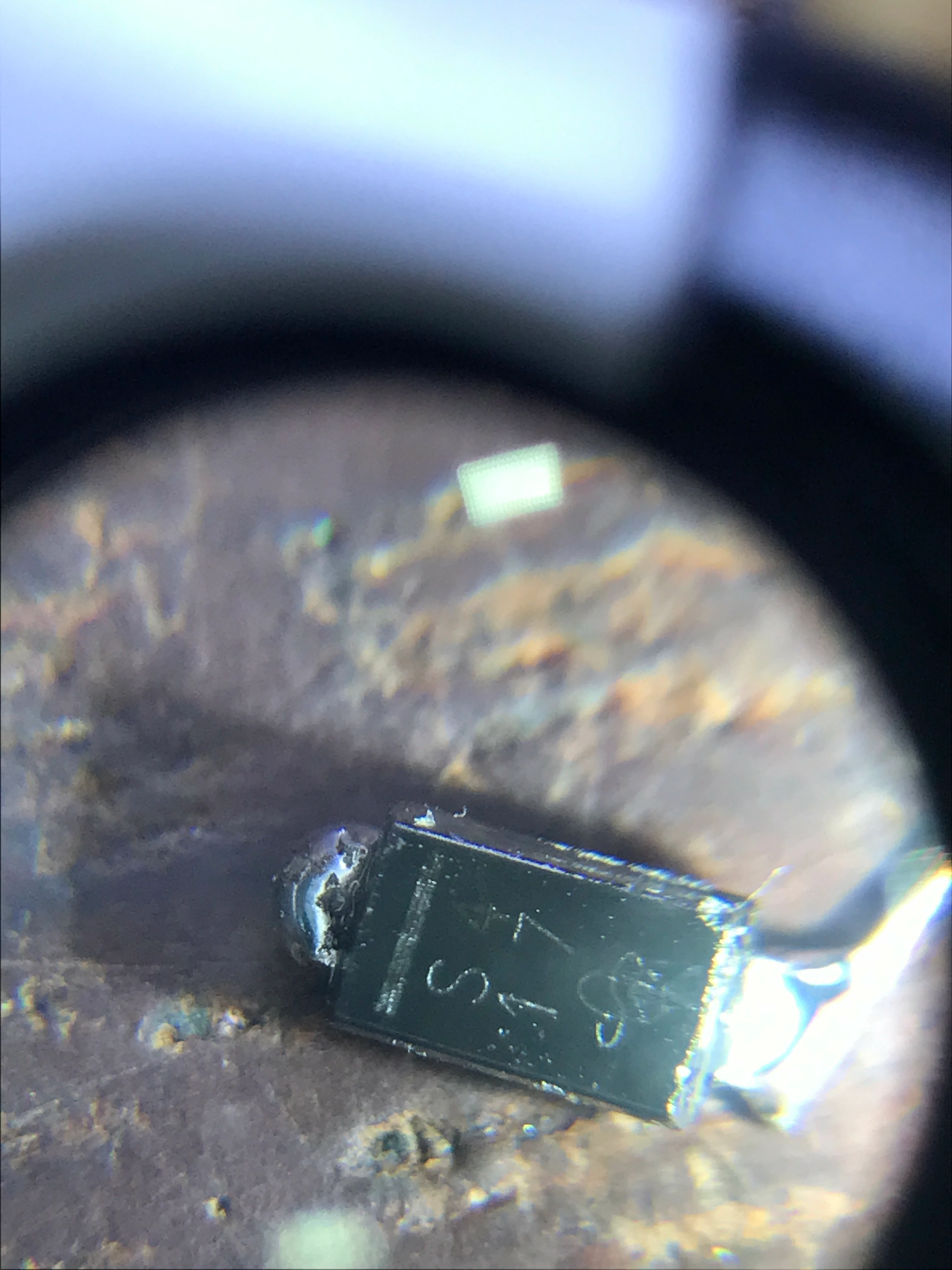

    Anyway i have diode i don't know, S417, Thank You.2025-07-24 23.06.jpg

    Thank You.

    Tesla DeLorean
    Tesla DeLorean
    Guru
    July 24, 2025

    Looks to be a Vishay 40V 3A  SS34-E3/57T

    https://www.vishay.com/docs/88751/ss32.pdf



    Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
