Question

Phase controlled Rectifier

  • July 19, 2013
  • 1 reply
  • 832 views
Posted on July 19, 2013 at 05:44

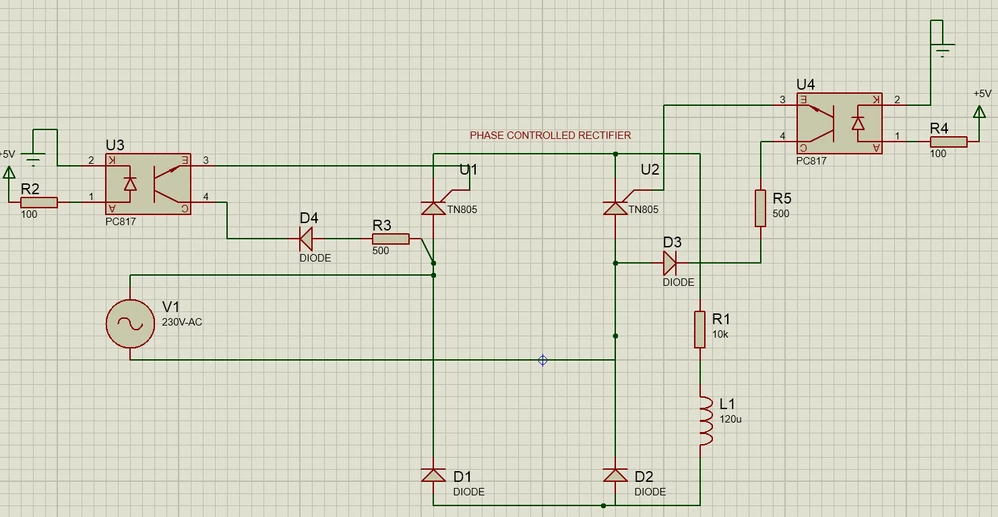

How to Control the SCR with Microcontroller. I dont want to mix the Digital Signal Ground with the High Voltage Ground. But the SCR will need the Gate current in uA w.r.t its Cathode. But I couldnot connect the Cathode of SCR to the control circuit..

Help me a correct Triggering Circuit for SCR on the Bridge Rectifier.


#bridge-rectifier #phase-control
This topic has been closed for replies.

1 reply

Benoit RENARD
Benoit RENARD
Visitor II
December 6, 2016
Posted on December 06, 2016 at 10:42

Hello

A recent Application Note answers you.

AN4606 : Inrush-current limiter circuits (ICL) with Triacs and Thyristors (SCR) and controlled bridge design tips

=> See section 2. Control circuits.

Best Regards

Benoit
