Understanding L4981A Application note.

  • January 28, 2018
  • 1 reply
  • 780 views
Posted on January 29, 2018 at 00:26

Hello everybody,

                              I am trying to understand the calculations and derivations of L4981A average current mode PFC controller circuits from the application note, AN628 : DESIGNING A HIGH POWER FACTOR SWITCHING PREREGULATOR WITH THE L4981 CONTINUOUS MODE.

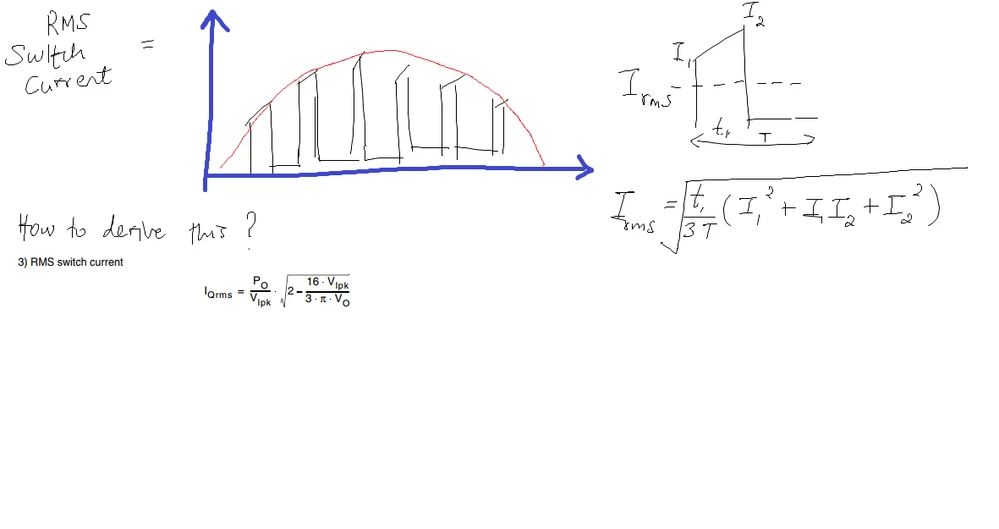

1) How was rms switch current found from O/P power and Peak inductor voltage?


2) Similarly how to find the RMS diode current?


How do the factors


3) The AC component of diode current flows into the output capacitor so0690X00000609RgQAI.png

How to derive

Ic?

4) RMS twice capacitor line frequency capacitor current

What is the difference between Total RMS-Capcitor Current and RMS twice line frequency capacitor current?

Does it refer to output bulk capacitor or input capacitor?


Why is 2f twice line frequency capacitor current important?

5) RMS high frequency capacitor current

Does this refer to input capacitor or output bulk capacitor?

Please answer!

Thank you.

#pfc #l4981 #rms-calculation #current-calculation #voltage-calculation
This topic has been closed for replies.

1 reply

Jose peeterson
Associate
February 10, 2018
Posted on February 10, 2018 at 04:59

Hello,

            I found derivation of these equations at this website :

http://www.powerfactor.us/ccm-pfc-boost.html



Appreciate the author : Lazar Rozenblat

-Peeterson.
