Why an extra resistor on EV-VNH7040AY motor controller evaluation board?

Posted on June 25, 2018 at 16:25

Hello all,

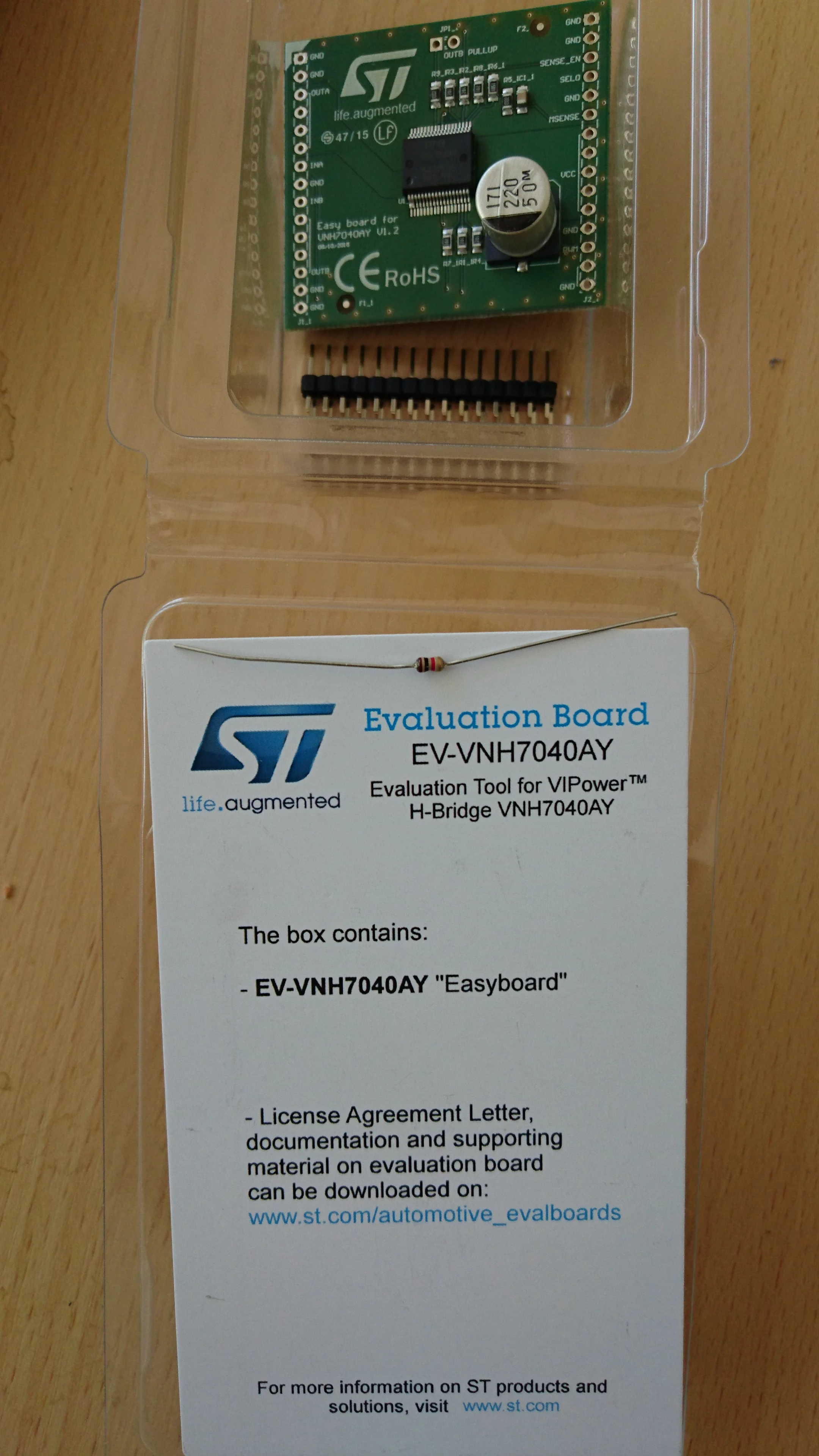

I have a question regarding the EV-VNH7040AY DC motor controller evaluation board. In the package it is included with the board a 1K

?

resistor that I have no idea what it is for. My guess is that is has to do maybe with the current mirroring feature but I am not sure since I am a newbe in the field of motor control electronics.

Can somebody clarify what is the use of this extra included in the package?

Thank you
