Working with X-NUCLEO-NFC10A1 with esp32

  • April 26, 2026
  • 2 replies
  • 257 views

I am currently working with the X-NUCLEO-NFC10A1 board and interfacing it with an ESP32 DevKit V1. While attempting to establish communication between the two, I have tried all SPI modes as well as different reset logic configurations, but I am still unable to get them to communicate properly.

I have included my Arduino test code below for reference, which I am using to verify the communication:
Please check in attachment section there is code file

Best answer by Brian TIDAL

Hi,

make sure VDD and VDD_IO are both provided to the X-NUCLEO-NFC10A1. Make sure the various GND pins are properly connected.

Could you also send a picture of your setup?

Strange to see MISO always at 1. Could you check MISO/MOSI have not been swapped?

Rgds

BT

2 replies

Ulysses HERNIOSUS
Ulysses HERNIOSUS
Technical Moderator
April 27, 2026

Hi  Abhishek_1305,

Please observe:

Attach a logic analyzer to CS,MISO,MOSI,SCLK,RESET. See that SPI is driven in the right mode according to DS.

If you see the right waveforms and still doesn't work: Double check the supply and the connections. If still not working: Please share the logic analyzer traces + picture of the setup and any other helpful information.

BR, Ulysses





    Brian TIDAL
    Brian TIDAL
    Technical Moderator
    April 28, 2026

    Hi,

    in your readReg code

    uint8_t readReg(uint8_t reg) {
 uint8_t val;
 SPI.beginTransaction(spiSettings);
 selectChip();
 SPI.transfer(0x40 | reg);
 val = SPI.transfer(0x00);
 deselectChip();
 SPI.endTransaction();
 return val;
}

     SPI.transfer(0x40 | reg); is likely not correct. See Table 3 in the ST25R200 Data Sheet.

    A C driver library is available for the ST25R200. It is portable on different MCU (STM32 or other MCUs). It prevents the need to reimplement the driver from scratch. See the X-CUBE-NFC10 package or the ST25 embedded NFC library.

    Rgds

    BT

    In order to give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
      A
      Abhishek_1305Author
      Associate
      April 28, 2026

      I am currently working on interfacing the ESP32 with the X-NUCLEO-NFC10A1 board over SPI, and I would like to share my setup along with the steps I’ve already taken.

      Here is my current connection configuration:

      • ESP32 GPIO23 → MOSI (X-NUCLEO-NFC10A1)
      • ESP32 GPIO19 → MISO (X-NUCLEO-NFC10A1)
      • ESP32 GPIO18 → SCK (X-NUCLEO-NFC10A1)
      • ESP32 GPIO5 → CS (X-NUCLEO-NFC10A1)

      I have also attached logic analyzer captures along with my latest code for your reference.

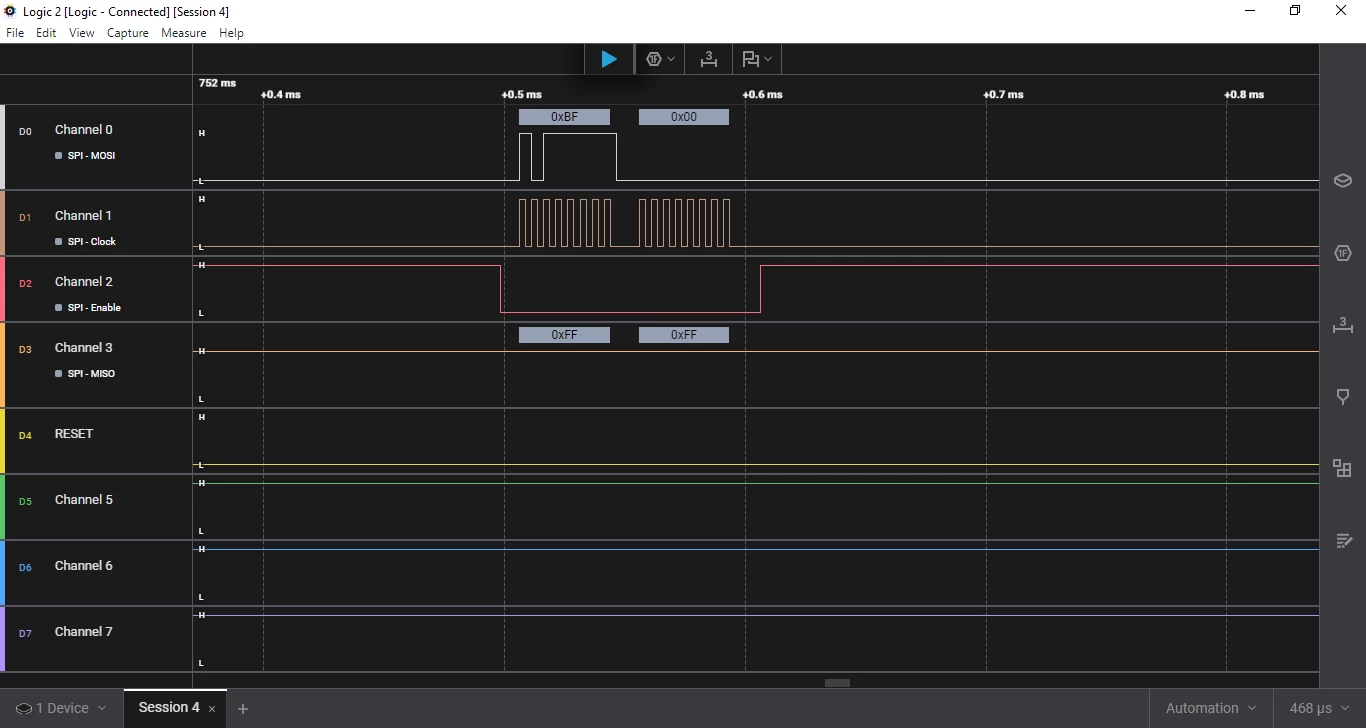

      Attached image bytes when I am sending 0x3F register with MSB Bit high and it becomes 0xBF and it gives response 0xFF.

      Additionally, I have experimented with all SPI modes by configuring different combinations of CPOL and CPHA, but I am still facing issues with proper communication.
      Currently I am using this SPI mode
      Mode 1 (CPOL=0, CPHA=1): Clock idles low, data sampled on falling edge.

      Could you please review my setup and provide guidance on what might be going wrong or any additional configurations I should check?

      Brian TIDAL
      Brian TIDALAnswer
      Technical Moderator
      April 28, 2026

      Hi,

      make sure VDD and VDD_IO are both provided to the X-NUCLEO-NFC10A1. Make sure the various GND pins are properly connected.

      Could you also send a picture of your setup?

      Strange to see MISO always at 1. Could you check MISO/MOSI have not been swapped?

      Rgds

      BT
