Question

X-NUCLEO-SRC1M1 STEP or DXF File

  • May 6, 2026
  • 4 replies
  • 247 views

Hi,

I want to create a pin-compatible board to X-NUCLEO-SRC1M1 to further explore USB-C charging, is there a STEP or DXF file available for this or any other X-NUCLEO board that has both the ST Morpho and Arduino UNO R3 connectors please?

Kind regards,

Al

4 replies

Andrew Neil
Andrew Neil
Super User
May 6, 2026

This comes up quite frequently; eg, see: X-NUCLEO-IHM08M1 3D model.

Tl;DR: ST do not generally provide 3D models for evaluation boards.



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
A
alwAuthor
Senior
May 6, 2026

Hi @Andrew Neil

I have downloaded quite a few STEP files for Discovery and NUCLEO boards from the ST website, and indeed some X-NUCLEO ones are also available with just the Arduino headers, a quick search will provide.

https://www.st.com/en/evaluation-tools/stm32-nucleo-expansion-boards.html#cad-resources

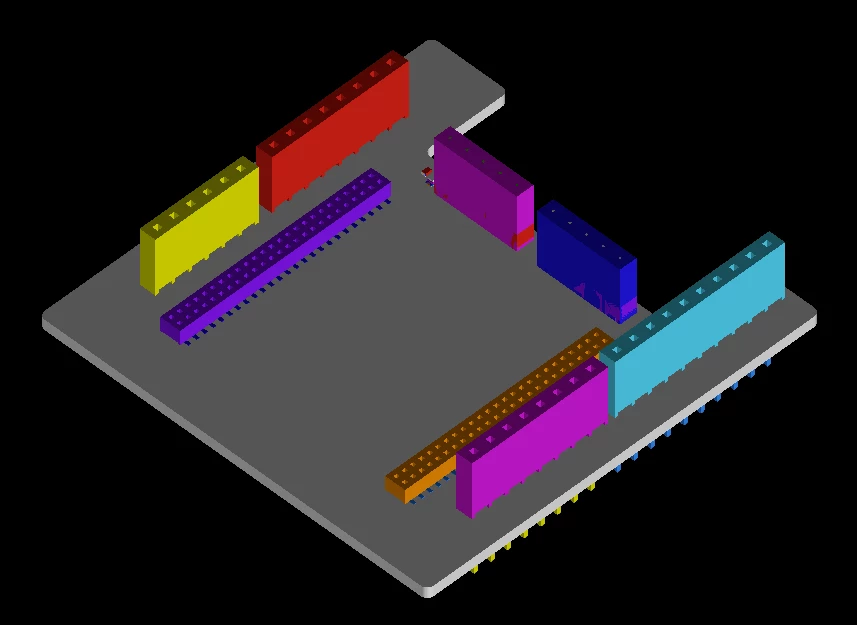

Screenshot 2026-05-06 at 16.25.57.png

MB2160-WB05N-B01.step

Kind regards,

Al

    Andrew Neil
    Andrew Neil
    Super User
    May 6, 2026

    I said they're not generally provided - but, indeed, some do exist.

    As noted in the linked thread: if they are available, they will be on the 'CAD Resources' tab of the Product Page; if they aren't there, then they aren't available.

    As also noted in that thread, some 3rd parties have published models.

    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      F
      FBL
      Technical Moderator
      May 8, 2026

      Hello @alw

      An internal ticket has been submitted to the dedicated team to review whether these requests are feasible. For internal tracking: CDM0062512.

      To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.Best regards,FBL
      F
      FBL
      Technical Moderator
      May 12, 2026

      Hi @alw

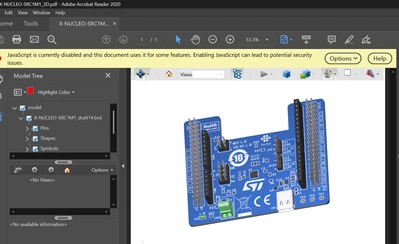

      Unfortunately step file is not available. Attached pdf format




      I hope this helps!

      To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.Best regards,FBL
      A
      alwAuthor
      Senior
      May 12, 2026

      Hi @FBL

      Thanks, but not really useful for PCB design. I did my STEP file in less than two hours using the Gerber files from X-NUCLEO-SRC1M1 to get the board profile and a datum point for the connectors and then used the PCB from the NUCLEO-G491 STEP file as a template for the ST Morpho and Arduino connector locations. Connectors are downloads from the Samtec and Wurth websites based on the BOM information. It's the key information anyone needs for doing their own expansion board. If there are no objections from ST, I'll post my STEP file here for everyone's benefit once I've verified it mechanically.

      Kind regards,

      Al
