FatFS Multi Logic Device Support with single SPI Bus and Multiple CS pins

  • May 9, 2021
  • 2 replies
  • 1011 views

Hello..

I have a few problems, can you help me?

I am using FatFS on stm32f103RB MCU. I have a Single SPI bus and 2 CS pins for 2 SD Card.

used STM32CUBEIDE. No problem when I use 1 SD card and 1 CS pin. But Problem occurs when I use 2 SD Cards. Problem is SD Card 2 not mounting

DSTATUS USER_initialize (
	BYTE pdrv /* Physical drive nmuber to identify the drive */
)
{
 /* USER CODE BEGIN INIT */
	return SD_disk_initialize(pdrv);
 /* USER CODE END INIT */
}

I am using the "pdrv" parameter here for CS pin control. But "pdrv" parameter allway 0. For this reason, SD Card 0 remains selected.

I mount like this:

FATFS fs0,fs1; // file systems
FIL fil0,fil1; // Files

// mount the device with fs
 fresult = f_mount(&fs0, "0:/", 1);
 fresult = f_mount(&fs1, "1:/", 1);

 // create files
 fresult = f_open(&fil0, "0:/test_file_for_sd0.txt", FA_OPEN_ALWAYS | FA_READ | FA_WRITE);
 fresult = f_open(&fil1, "1:/test_file_for_sd1.txt", FA_OPEN_ALWAYS | FA_READ | FA_WRITE);

 // Write text
 f_puts("Test DATA to SD 0", &fil0);
 f_puts("Test DATA to SD 1", &fil1);

 // Close files
 fresult = f_close(&fil0);
 fresult = f_close(&fil1);

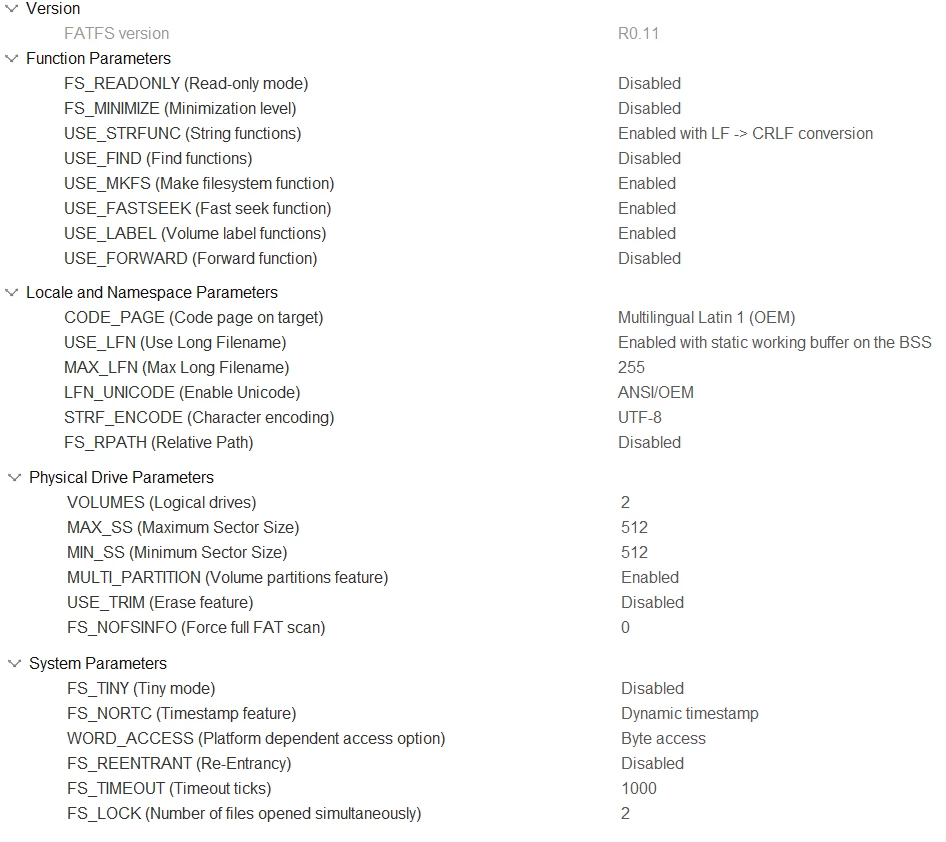

my FatFS library parameters :

0693W00000ANnJXQA1.pngI will be very happy if you can help :)

Thanks..

This topic has been closed for replies.

2 replies

Tesla DeLorean
Guru
May 9, 2021

You'll have to manage this, and the selection/deselection, in the DISKIO layer code.

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
eenis
eenisAuthor
Associate
May 9, 2021

Thank you for quickly replay.

Inside the discio.c file there is the "disk_initialize" function. The "pdrv" parameter here is always seen as 0 in debug mode. I've closed all the "fil0" and "fs0" related lines. I only worked with "fil1" and "fil2" but "pdrv" was 0 again. I was able to follow this parameter in the above f_mount function. The value that is 1 then changes to 0. as a result, I always read the value 0 in user-side functions.

DSTATUS disk_initialize (
	BYTE pdrv				/* Physical drive nmuber to identify the drive */
)
{
 DSTATUS stat = RES_OK;

 if(disk.is_initialized[pdrv] == 0)
 {
 disk.is_initialized[pdrv] = 1;
 stat = disk.drv[pdrv]->disk_initialize(disk.lun[pdrv]);
 }
 return stat;
}
