Has anyone else noticed a typo in stm32g4xx_ll_tim.h in the cube. TIM_CR1_CMS_0 is the center-down.

  • March 18, 2020
  • 2 replies
  • 979 views

#define LL_TIM_COUNTERMODE_CENTER_UP          TIM_CR1_CMS_0       /*!< The counter counts up and down alternatively. Output compare interrupt flags of output channels are set only when the counter is counting down. */

#define LL_TIM_COUNTERMODE_CENTER_DOWN        TIM_CR1_CMS_1       /*!<The counter counts up and down alternatively. Output compare interrupt flags of output channels are set only when the counter is counting up */

This topic has been closed for replies.
Best answer by Imen.D

Hello @DAlbe.1375​ ,

You are right, I raised this issue internally for correction.

The mode are inverted and TIM_CR1_CMS_0 should be LL_TIM_COUNTERMODE_CENTER_DOWN.

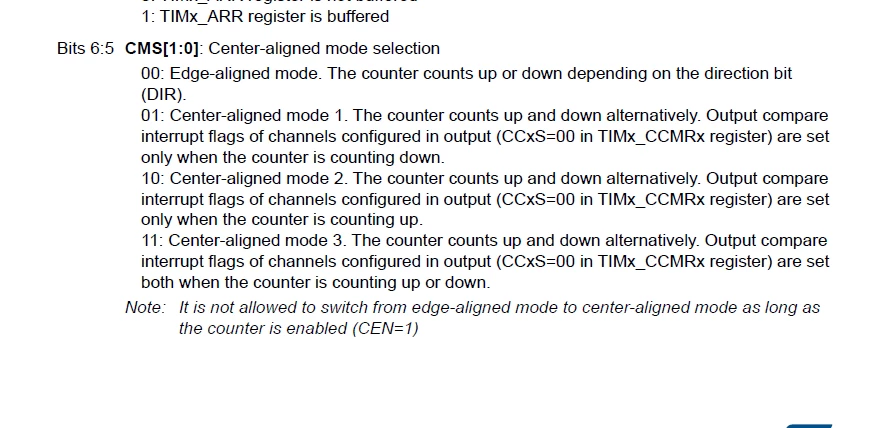

0693W000000UCZwQAO.pngThank you for your highlight and contribution.

Best Regards,

Imen

2 replies

I
Imen.DAnswer
Technical Moderator
March 18, 2020

Hello @DAlbe.1375​ ,

You are right, I raised this issue internally for correction.

The mode are inverted and TIM_CR1_CMS_0 should be LL_TIM_COUNTERMODE_CENTER_DOWN.

0693W000000UCZwQAO.pngThank you for your highlight and contribution.

Best Regards,

Imen

"When your question is answered, please close this topic by clicking ""Accept as Solution"".ThanksImen"
I
Imen.D
Technical Moderator
September 17, 2020

Hello @DAlbe.1375​ ,

This issue is fixed in the STM32CubeG4 V1.3.0.

Thank you for your contribution to improve our products.

Thanks,

Imen
