High output frequency from DAC

STM32CubeG4/Projects/NUCLEO-G431RB/Examples/DAC/DAC_SignalsGeneration2/Src/main.c at master · STMicroelectronics/STM32CubeG4 · GitHub

Duplicate - merged.

I change the file. But now, I have anathor question. The file I use is one of the example on stm32G431RB "DAC_SignalGeneration2" and for this example, the output frequency on Oscillo is 1kHz but for my use, I want to have high frequency for sinusoidal signal on oscilloscope. I try many issu but i don't have what i want.

For example, I calculated PSC et ARR corresponding to my frequency i want or double the number of step in tab sinewave or do (programmed a specific tab sinwave at the frequency i want but i stil don't have good result on oscilloscope.

And i don't understand the specific roles of each timer (TIM2 & TIM6) in this code.

Thank you for you respond

STM32CubeG4/Projects/NUCLEO-G431RB/Examples/DAC/DAC_SignalsGeneration2/Src/main.c at master · STMicroelectronics/STM32CubeG4 · GitHub

---

@mala wrote:

for my use, I want to have high frequency for sinusoidal signal on oscilloscope

---

How high ?

---

@mala wrote:

i stil don't have good result on oscilloscope.

---

In what way(s) is it "not" good ?

Perhaps show a screenshot from your oscilloscope

And show the code you used.

Hello, FYI,

From the datasheet:

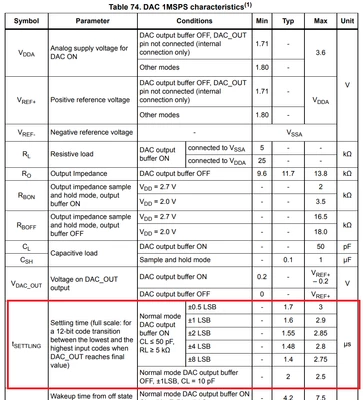

DAC at 1MSPS:

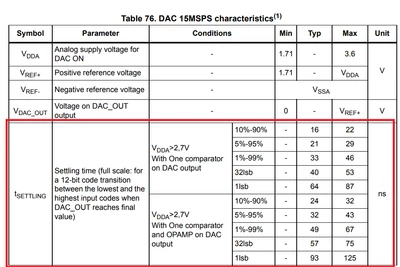

DAC at 15MSPS:
