LWIP Socket API, TCP and UDP connection on the same STM32 MCU

Do resource acquisition functions (socket, bind, etc.) return errors during combined operation, or does it just silently fail ?

What does wireshark say ?

I would check how far the communication proceeds, perhaps the core is occasionally overloaded (interrupts), and drops ethernet packages.

In my experience, this is a very common problem with IoT projects.

As you are using ST's broken bloatware... Take a note that, while netconn and socket APIs are inherently thread-safe, Ethernet link status and DHCP processing code by ST are still broken in this regard. These and other issues are documented here:

https://community.st.com/s/question/0D50X0000BOtfhnSQB/how-to-make-ethernet-and-lwip-working-on-stm32

Hello!

First, your clients are using same local port . You should use differents ports for udp and tcp clients at least.

Second. Every new connection should use another port for prevent tcp errors like "Reusing port" and so on.

Third. While your tcp client trying to connect to server in loop, it take all availible memory in tcp_pcb memory pool.

I,m highly recommend to use traffic analyzer like Wireshark to undestand, whats going on.

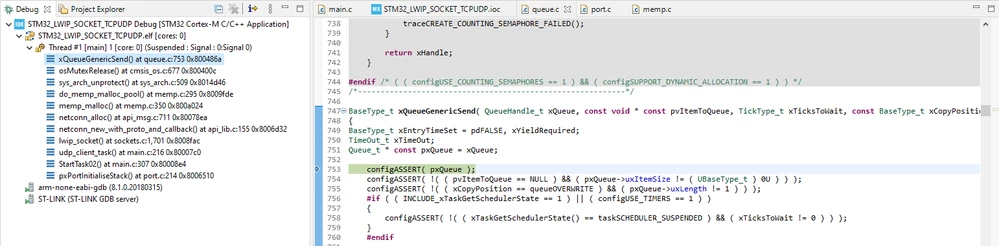

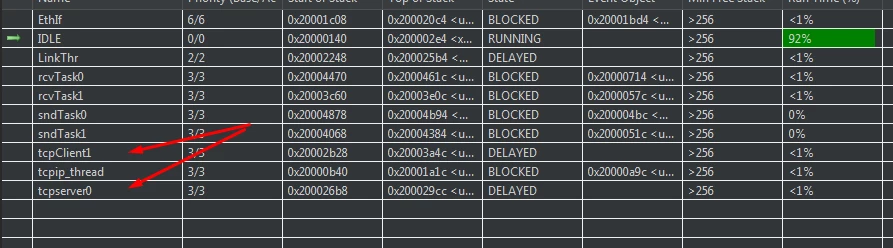

This is a my tcp client. It is works fine together with tcp server on the same mcu.

void tcp_client_socket_thread(void *arg) {

	serverParams *pSrvParams = (serverParams*) arg;
	portSettingsType *pPortSettings =
			&eepromSettings.portSettings[pSrvParams->number];
	volatile uint8_t currentPortNumber = 0;
	int socket, newconn = 0;
	struct ip4_addr tempIp;
	struct sockaddr_in addr, localhost;
	osThreadId socketReceiveTaskHandle;
	osThreadId socketSendTaskHandle;
	uint16_t localPort = 0;
	uint8_t i = 0;

	currentPortNumber = pSrvParams->number;

	memset(&localhost, 0, sizeof (localhost));
	localhost.sin_family = AF_INET;
	localhost.sin_len = sizeof(struct sockaddr_in);
	localhost.sin_addr.s_addr = INADDR_ANY;
	localhost.sin_port = 0;

	memset(&addr, 0, sizeof(addr));
	addr.sin_len = sizeof(addr);
	addr.sin_family = AF_INET;
	IP4_ADDR(&tempIp, pPortSettings->remoteIpAddress[0],
			pPortSettings->remoteIpAddress[1],
			pPortSettings->remoteIpAddress[2],
			pPortSettings->remoteIpAddress[3]);
	addr.sin_addr.s_addr = tempIp.addr;
	addr.sin_port = htons(pPortSettings->remoteTcpPort);

	osDelay(3000);

	for (;;){
		if (pSrvParams->connCounter < MAX_SOCKET_CONN){
			localPort = (uint16_t)(HAL_RNG_GetRandomNumber(&hrng)%16383+49152);
			for (i=0; i<NO_OF_PORTS; i++){
				if (localPort == eepromSettings.portSettings[i].localTcpPort){
					localPort +=10+i;
					if (localPort < 49152){
						localPort = 49152+i;
					}
				}
			}
			localhost.sin_port = htons (localPort);
			socket = socket (AF_INET, SOCK_STREAM, 0);
			if (socket < 0){
				puts ("Create client socket failed\r\n");
				return;
			} else {
				printf ("1. TCP client socket # %i for Port # %u has been created\r\n", socket, pSrvParams->number);
				if (bind (socket, (struct sockaddr*)&localhost, sizeof (struct sockaddr)) < 0){
							puts("Bind failed\r\n");
							return;
				} else {
					puts("Bind socket to localhost OK\r\n");
					newconn = connect(socket, (struct sockaddr*)&addr, sizeof (addr));
					if (newconn < 0){
						printf("2. Unable to connect to remote server, newconn = %i\r\n\r\n", newconn);
						osDelay(10000);
					} else {
						printf("Connection to remote server established. Socket No %i \r\n\r\n", newconn);
						pSrvParams->currentFd = socket;
						pSrvParams->connCounter++;
						switch (pSrvParams->number) {
						case 0:
							HAL_GPIO_WritePin(SOCK1_GPIO_Port, SOCK1_Pin, GPIO_PIN_SET);
							break;
						case 1:
							HAL_GPIO_WritePin(SOCK2_GPIO_Port, SOCK2_Pin, GPIO_PIN_SET);
							break;
						}
						socketReceiveTaskHandle = sys_thread_new(
								pSrvParams->receiveTaskName, socketReceiveTask,
								(void*) &srvParams[currentPortNumber], 256,
								osPriorityNormal);
						pSrvParams->receiveTaskHandle = &socketReceiveTaskHandle;
						socketSendTaskHandle = sys_thread_new(pSrvParams->sendTaskName,
								socketSendTask, (void*) &srvParams[currentPortNumber],
								256, osPriorityNormal);
						pSrvParams->sendTaskHandle = &socketSendTaskHandle;
					}
				}//connect
			}//bind
		}//if (connCounter)
		osDelay(10);
	} //infinite loop
}//tcp_client_socket_thread

As you can see my code, my clients are not using the same struct. They are​dest_addr_tcp and dest_addr_udp.

​

Why you said that your clients are using the same local port ?​

​

Because you assign destination port in that structures. Local port is assigned by LWIP at boot. And it is the same for your udp and udp clients. You can assign local port to your socket only by calling bind().

@voyvoda .​​, the main problem is that ST's Ethernet link status and DHCP code uses RAW API, but doesn't do core locking. And it's also broken in other ways, as explained in my topic.

@Ivan Pletnev​, you are doing a bunch of needless work by reimplementing lwIP stack's functionality. Only servers have to bind local ports to a specific port. For clients the lwIP assigns local ports automatically from a proper range. As bind() and netconn_bind() uses RAW API underneath, read this:

https://www.nongnu.org/lwip/2_1_x/group__udp__raw.html#gac7fbda8b12b9b9360e92b51e805e799e

port local UDP port to bind with. Use 0 to automatically bind to a random port between UDP_LOCAL_PORT_RANGE_START and UDP_LOCAL_PORT_RANGE_END.

Optionally, if LWIP_RAND is defined, the start of the range is initialized to a random number in the range. Also the binding is done automatically on the first send operation, therefore clients don't have to do manual binding at all.

@voyvoda .​ Yes, l found tcp_port_new() function in LWIP code. Thank you a lot for your comment, It was really helpfully for me. LWIP automatic port assigning is really works. I removed randomizer code from my client.
