Read Flash Memory size in Bootloader mode

  • March 21, 2021
  • 1 reply
  • 845 views

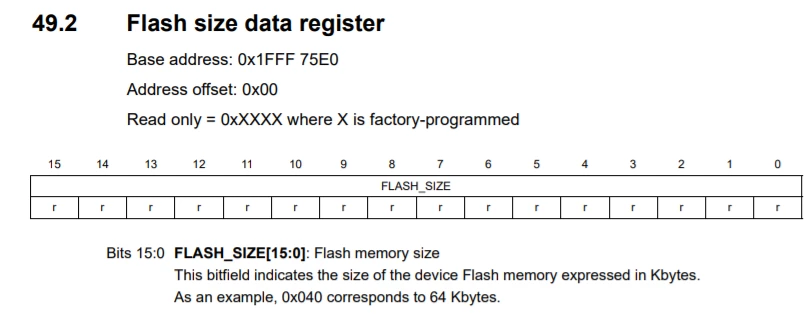

Hello everyone here, I have a STM32L43x µC and I wish to read the Memory size when I am in Bootloader mode. I tried using the function Read Memory command to read the register at address (Base address: 0x1FFF 75E0) which contains the Memory size. Unfortunately this is not working. Can someone give me a quick hint on how to read the Memory address in bootloader mode? Thanks in advance

This topic has been closed for replies.

1 reply

VTaya.1
VTaya.1
Associate III
April 2, 2021

Only read unprotected areas can be read out in boot mode. Try reading user flash code at 0x08000000 . If it works , 0x1FFF 75E0) must be having read protection active on it.
