SD Card no file system error.

  • February 16, 2024
  • 4 replies
  • 6782 views

Hi,

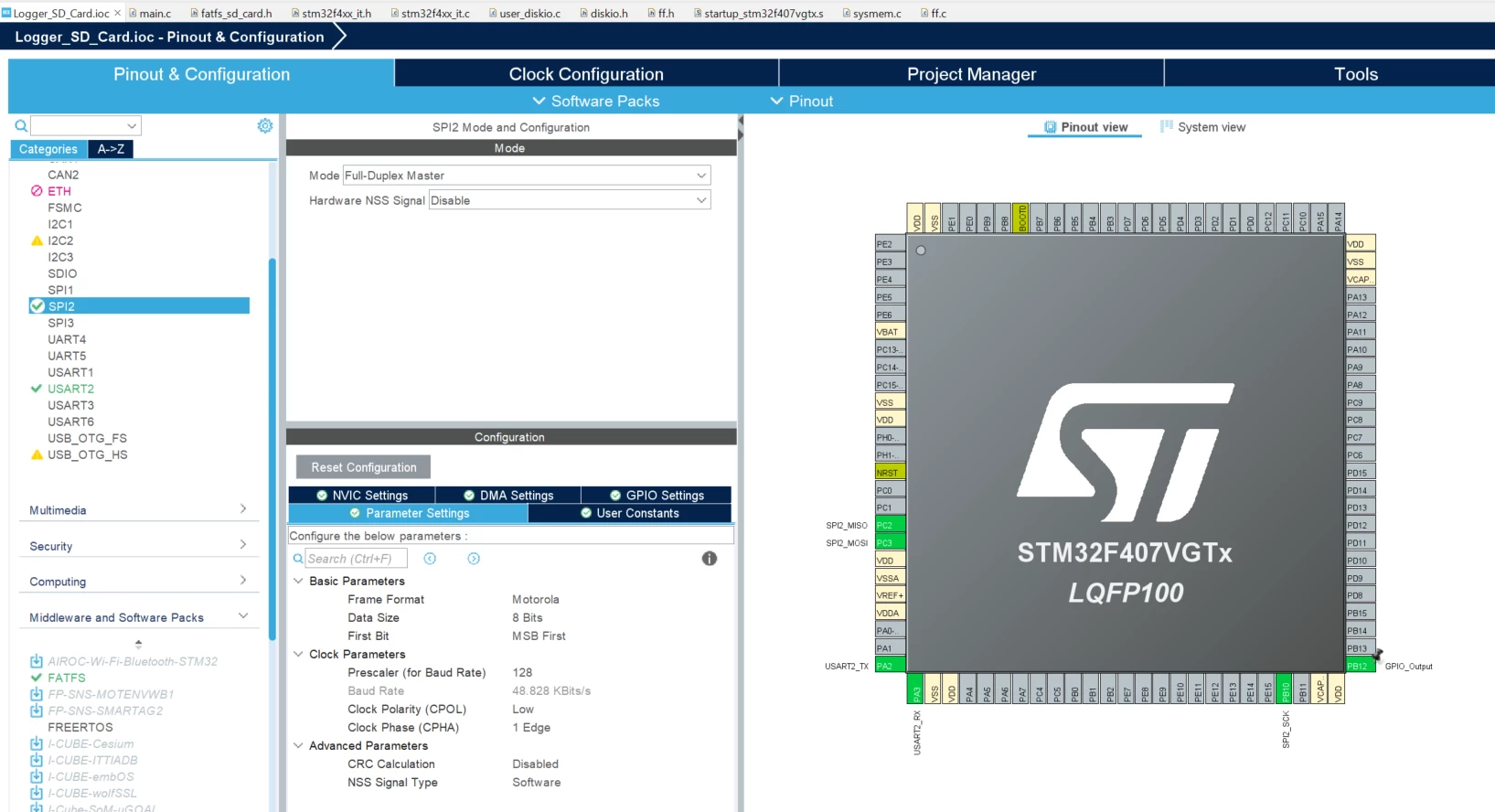

I would like to make an application to access micro sd card via SPI from STM32F407VG-DISC1 board. I have configured the pins as seen in table below.

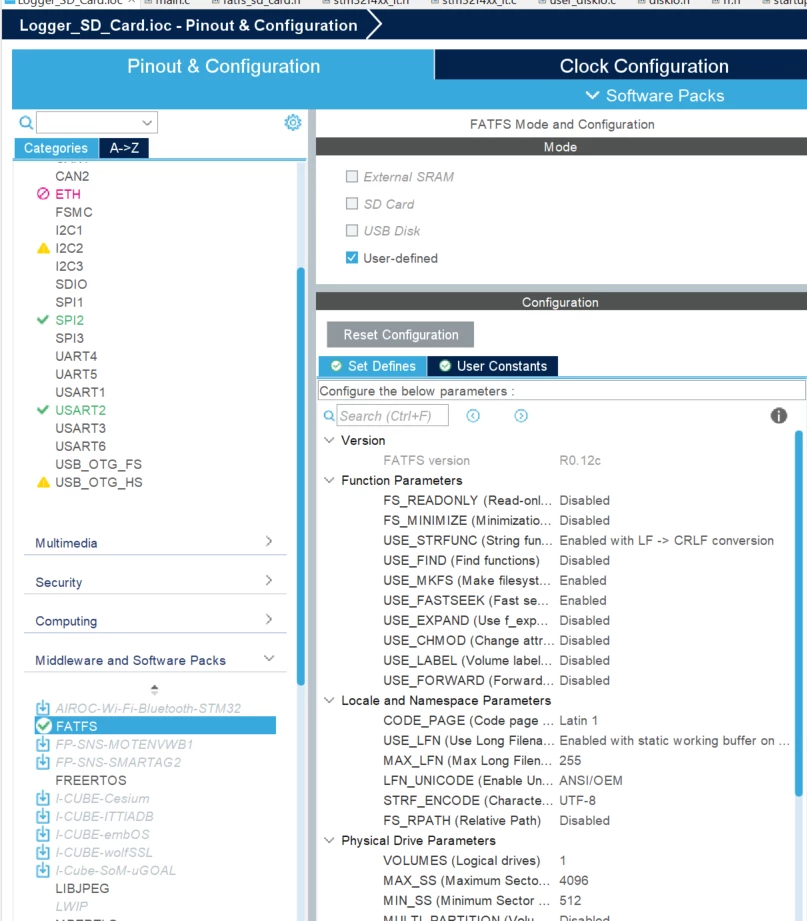

Main file is also attached.

However, when I run the application I get FR_NO_FILESYSTEM error. My card is formatted as FAT32. It is class4 2GB micro SD card.

When I remove the SD card then I received another error that is FR_NOT_READY. So, this got me thinking that, I have made proper connections, but there is problem with the code.

Could you please point me to the right direction ?



STM32F407VG-DISC1HW125 SD CARD MODULE
PC2 MISO PIN
PC3MOSI PIN
PB10 SCK PIN
PB12 GPIO_OUTPUT
GNDGND
5VVCC





Best answer by demir

Hi @Andrew Neil

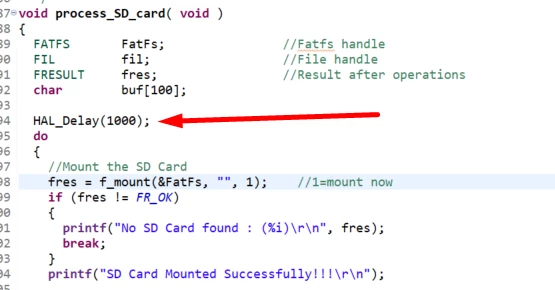

I came to know that SD Card needs some to settle. So, the only I have done is that, I added some delay before mountin the SD card as below. Hope it helps.






4 replies

AScha.3
AScha.3
Super User
February 16, 2024

Hi,

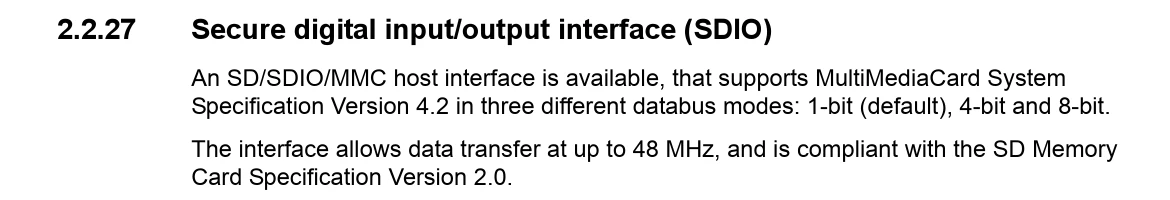

Just a question: F407 has SDIO for sd-card access -- why you dont use it ?




+

Keep wires to sd-card short , < 50mm is ok; long wires will make problems....

"If you feel a post has answered your question, please click ""Accept as Solution""."
D
demirAuthor
Senior
February 16, 2024

Thanks Ascha.3.

This is the task actually.

Andrew Neil
Andrew Neil
Super User
February 16, 2024
@demir wrote:

When I remove the SD card then I received another error that is FR_NOT_READY. So, this got me thinking that, I have made proper connections,

Not necessarily.

The card present/not-present might just be detected on a switch ...

Have you tried tracing back to where the error is actually raised?



@demir wrote:

HW125 SD CARD MODULE

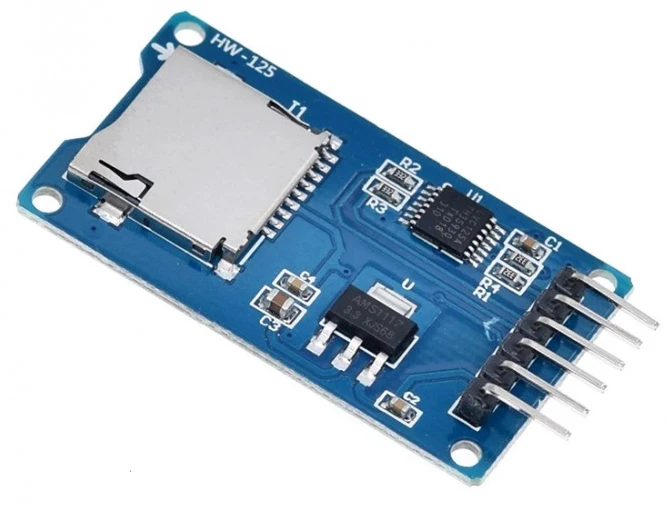

Do you mean one of these?


Do you have a link to its datasheet?




A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
D
demirAuthor
Senior
February 16, 2024

Thanks Andrew.

Yes, I use one of those. I searched but cant find the datasheet.

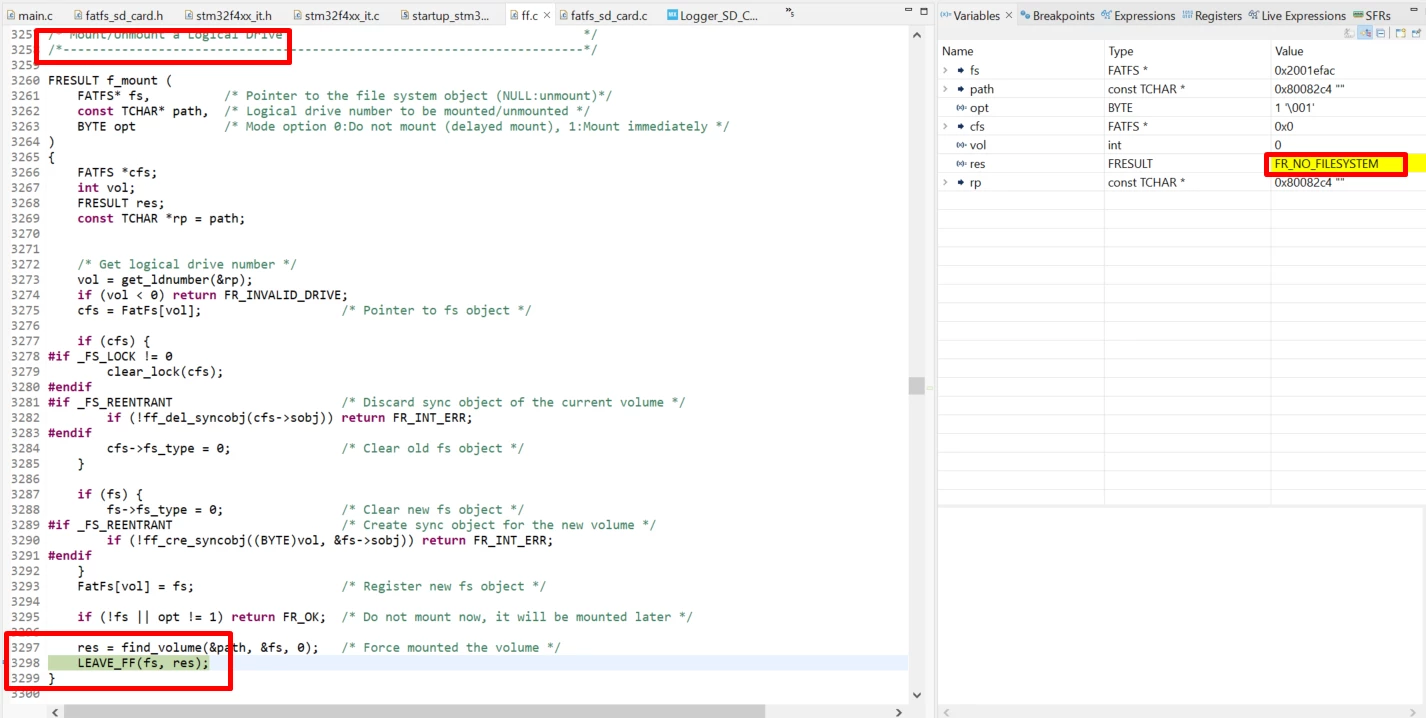

I ve debugged the code, please see the attachment. This is where code returns no file system.

Andrew Neil
Andrew Neil
Super User
February 16, 2024

If you can't find a datasheet, how can you be sure you have the correct connections?

:flushed_face:



@demir wrote:

This is where code returns no file system.

So step into find_volume() to find what causes it to return that error




A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
D
demirAuthor
Senior
February 19, 2024

Cant mark it as the solution, there is no option to select.

Andrew Neil
Andrew Neil
Super User
February 19, 2024

You have to un-mark one before you can mark a different one

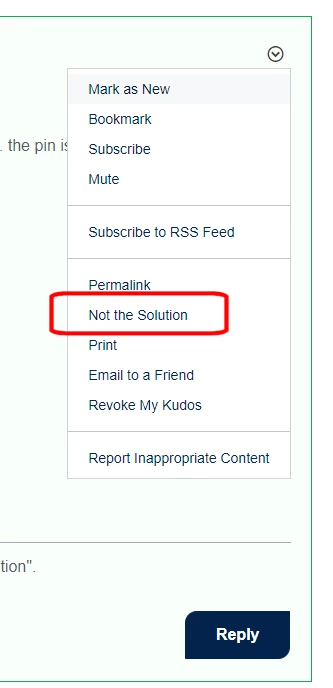

Clikck on the AndrewNeil_3-1708356226886.pngin the top-right of the post:


Then choose 'Not the solution':


#UnmarkSolution

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
