websocket connection and transmit data from stm32f7 using LWIP

Hi @Imen DAHMEN​ ,

Thanks for your support. I have tried LwIP_HTTP_Server_Netconn_RTOS from the example code and it works in NUCLEO-F746ZG. and also i searched example for SOCKET_API but it is not there for this NUCLEO-F746ZG board. I tried on own with help of STM example from some other board. The initialization was working fine but during entering IP address

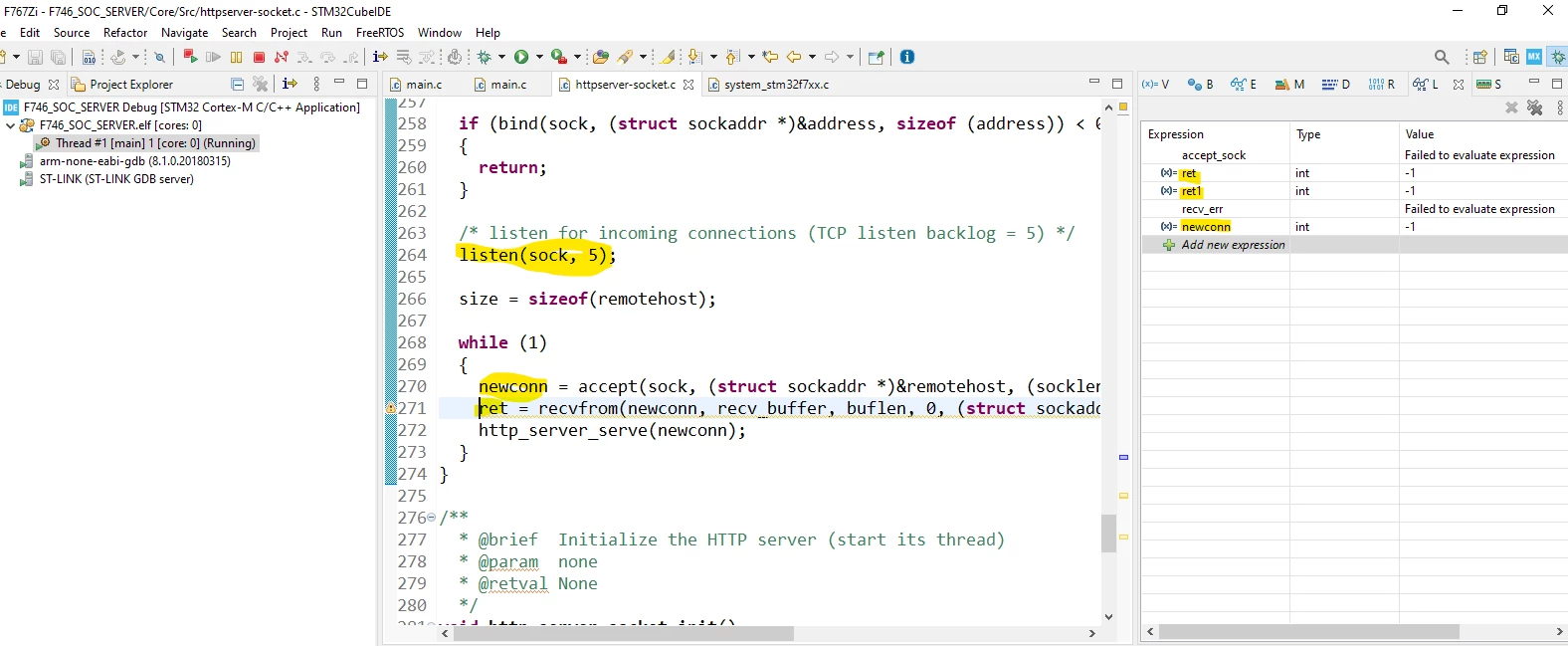

it return the value -1

ret1 = read(conn, recv_buffer, buflen);

 if(ret1 < 0) return;

and the full http-server-socket code is

void http_server_serve(int conn)

{

 int buflen = 1500;

 //int ret;

 struct fs_file file;

 unsigned char recv_buffer[1500];

 /* Read in the request */

 ret1 = read(conn, recv_buffer, buflen);

 if(ret1 < 0) return;

 /* Check if request to get ST.gif */

 if (strncmp((char *)recv_buffer,"GET /STM32F7xx_files/ST.gif",27)==0)

 {

   fs_open(&file, "/STM32F7xx_files/ST.gif");

   write(conn, (const unsigned char*)(file.data), (size_t)file.len);

   fs_close(&file);

 }

 /* Check if request to get stm32.jpeg */

 else if (strncmp((char *)recv_buffer,"GET /STM32F7xx_files/stm32.jpg",30)==0)

 {

   fs_open(&file, "/STM32F7xx_files/stm32.jpg");

   write(conn, (const unsigned char*)(file.data), (size_t)file.len);

   fs_close(&file);

 }

 /* Check if request to get ST logo.jpeg */

 else if (strncmp((char *)recv_buffer,"GET /STM32F7xx_files/logo.jpg", 29) == 0)

 {

   fs_open(&file, "/STM32F7xx_files/logo.jpg");

   write(conn, (const unsigned char*)(file.data), (size_t)file.len);

   fs_close(&file);

 }

 else if(strncmp((char *)recv_buffer, "GET /STM32F7xxTASKS.html", 24) == 0)

 {

   /* Load dynamic page */

   DynWebPage(conn);

 }

 else if((strncmp((char *)recv_buffer, "GET /STM32F7xx.html", 19) == 0)||(strncmp((char *)recv_buffer, "GET / ", 6) == 0))

 {

   /* Load STM32F7xxpage */

   fs_open(&file, "/STM32F7xx.html");

   write(conn, (const unsigned char*)(file.data), (size_t)file.len);

   fs_close(&file);

 }

 else

 {

   /* Load 404 page */

   fs_open(&file, "/404.html");

   write(conn, (const unsigned char*)(file.data), (size_t)file.len);

   fs_close(&file);

 }

 /* Close connection socket */

 close(conn);

}

/**

 * @brief http server thread

 * @param arg: pointer on argument(not used here)

 * @retval None

 */

static void http_server_socket_thread(void *arg)

{

 int sock, newconn, size;

 struct sockaddr_in address, remotehost;

 int buflen = 1500;

 struct fs_file file;

 unsigned char recv_buffer[1500];

 /* create a TCP socket */

 if ((sock = socket(AF_INET, SOCK_STREAM, 0)) < 0)

 {

   return;

 }

 /* bind to port 80 at any interface */

 address.sin_family = AF_INET;

 address.sin_port = htons(80);

 address.sin_addr.s_addr = INADDR_ANY;

 if (bind(sock, (struct sockaddr *)&address, sizeof (address)) < 0)

 {

   return;

 }

 /* listen for incoming connections (TCP listen backlog = 5) */

 listen(sock, 5);

 size = sizeof(remotehost);

 while (1)

 {

   newconn = accept(sock, (struct sockaddr *)&remotehost, (socklen_t *)&size);

   http_server_serve(newconn);

 }

}

and is there any STM example for websocket message transferring

I didn't find any STM example for LWIP for the STM32F407. If it there please provide the link
