BLDC Drive for BLDC Ceiling Fan High Voltage:

  • May 4, 2021
  • 1 reply
  • 5317 views

Hi,

I have to make low cost on BLDC Drive for BLDC Ceiling Fan ( 110V ) without any sensors.

This topic is continuation from below thread as below thread don't pay much attention there as required :

https://community.st.com/s/question/0D73W000000Uy06/detail?s1oid=00Db0000000YtG6&s1nid=0DB0X000000DYbd&emkind=chatterCommentNotification&s1uid=0050X000007vw7K&emtm=1602748687452&fromEmail=1&s1ext=0

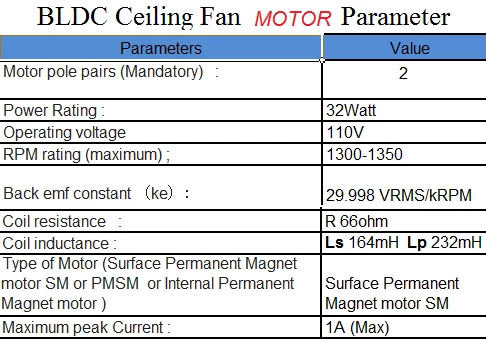

Below are parameters which I have:


I have download below softwares :

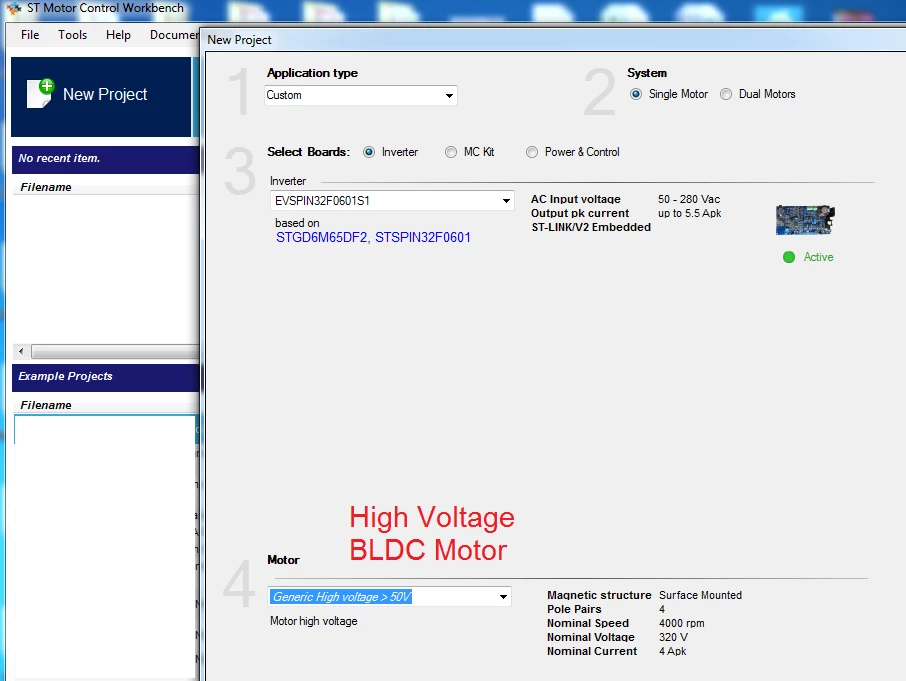

https://www.st.com/content/st_com/en/products/embedded-software/mcu-mpu-embedded-software/stm32-embedded-software/stm32cube-expansion-packages/x-cube-mcsdk.html


And seen below Eval-Board .

https://www.st.com/en/evaluation-tools/evspin32f0601s1.html

Please suggest . . .

How do I start ?

Many of Thanks in advance ..

--

Karan

This topic has been closed for replies.

1 reply

Javier1
Javier1
Principal
May 4, 2021

so you have the EVSPIN32F0601S1eval board with you?

Maybe you can show us your wiring in case nothing is blinking or you dont know where to start

hit me up in https://www.linkedin.com/in/javiermuñoz/
Karan 123
Karan 123Author
Senior
May 4, 2021

Hi​,

​

​

​

Thanks for update..

I don't have ​EVSPIN32F0601S1eval board with me.

I have ​ P-NUCLEO-IHM001 board which is meant for LV application.

Meanwhile, I am trying to learn MC-SDK for EVSPIN32F0601S1eval according to motor specifications given at Msg#1.

​​

I​ will order that .

​

--

Karan​

Javier1
Javier1
Principal
May 5, 2021

@Community member​ just to clarify, i have never used ​EVSPIN32F0601S1eval , i was just answering your question >How do I start ? -buy the hardware first

hit me up in https://www.linkedin.com/in/javiermuñoz/
