Hi, I am using NUCLEO-F303RE, I have purchased a power board (IPM evaluation board EVALM13645ATOBO1) from Digikey.In the Motor control workbench, I didn't find above mentioned power board part no. so, can you tell me, which one I need to select in the drop-down list of power board custom board or else?In current sensing & Bus voltage sensing, the below-shown circuit value, Is automatically calculated? or Is the user needs to configure this value? If yes, where or how to find/check these values? 3. is it possible to change the board details once it is selected.

Associate III

Question

Motor Control workbench

Hi,

I am using NUCLEO-F303RE,

I have purchased a power board (IPM evaluation board EVALM13645ATOBO1) from Digikey.

In the Motor control workbench, I didn't find above mentioned power board part no. so, can you tell me, which one I need to select in the drop-down list of power board custom board or else?

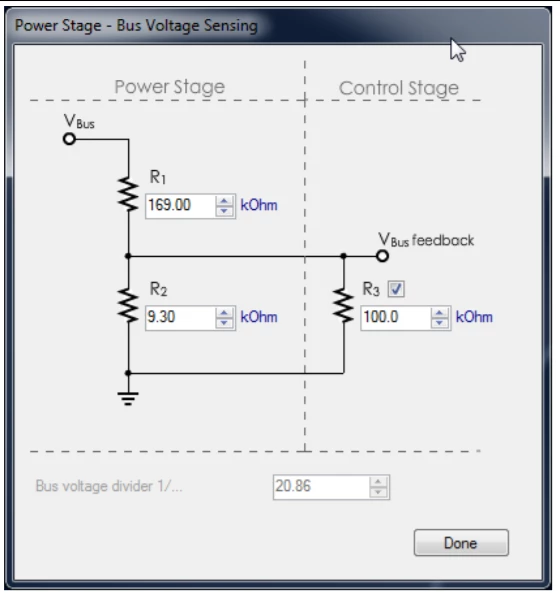

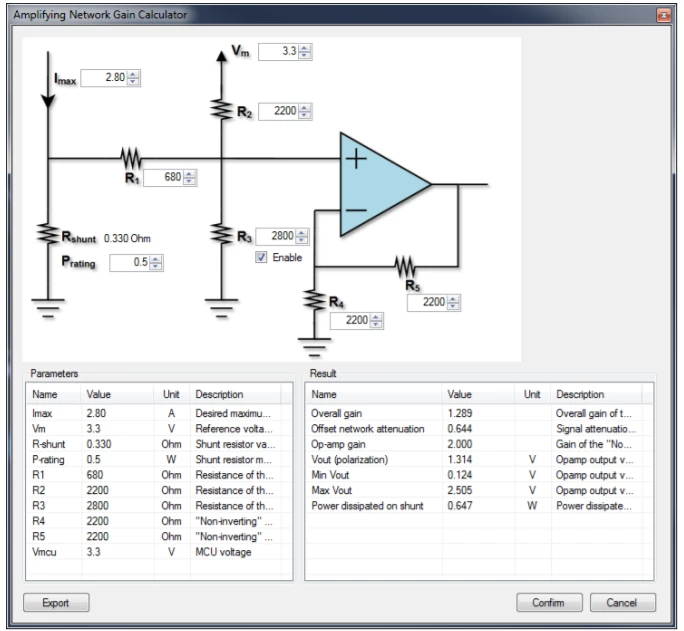

In current sensing & Bus voltage sensing, the below-shown circuit value,

Is automatically calculated? or Is the user needs to configure this value?

If yes, where or how to find/check these values? 3. is it possible to change the board details once it is selected.

This topic has been closed for replies.

Senior III

Dear @Mathan Raja

We are sorry but we only support ST power boards.

I don't know your board but I guess you can design your own based on a similar existing board.

Best regards

Associate III

Hi Laurent,

which ST power board is the same as EVALM13645ATOBO1 ( Equivalent)?

How can I use Motor Profiler software (for finding motor parameters), with the Nucleo-F303RE & EVALM13645ATOBO1 boards?

Thanks
