Over current error evspin32f0

Forum|Forum|5 years ago
November 12, 2020
2 replies
1696 views

Hi

I have designed a board based on evspin32f0602 single shunt foc.

When I am using the same value of shunt resistor as the event spin board the motor runs normally

But I want to increase the load capacity to 16 amps

So what all changes i need to do beside shunt resistor. I have used .025 ohm as shunt resistor .

But now every time I turn on the motor it shows over load.

Is there any other resistor i have to change.

Thanks.

This topic has been closed for replies.

PBo

Visitor II

Hello Fkadr.1,

The original EVSPIN32F0602S1 board is limited to 8.5 Apeak.

In its User's Manual (UM2629), it provides you with chapter 6.3 on How To modify HW about the Overcurrent detection and Current sensing measurement. In particular, it informs about the few resistors to change according to the given formula.

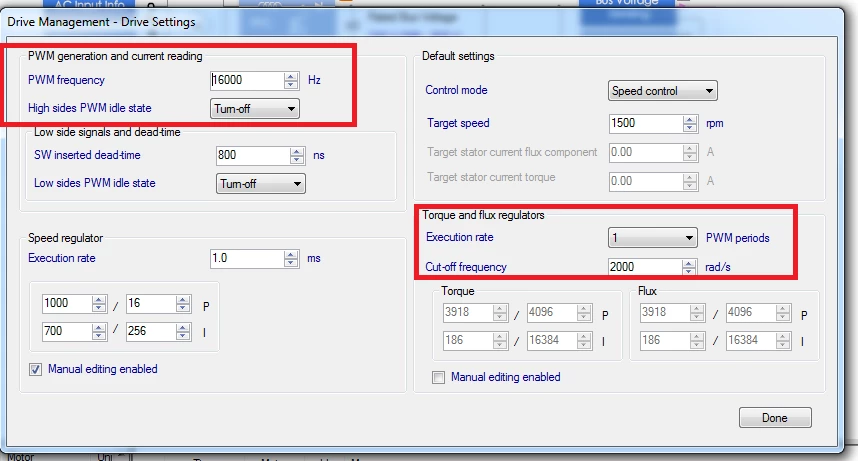

Then, you have to make sure that your FW configuration is matching this new HW configuration. The MC Workbench software tools will help you to do that (Cf. the Current Sensing and the Overcurrent Protection blocks).

Best Regards.
