ST Motor Control Workbench can't generate example code for STEVAL -SPIN3202,what can i do to fix this error?

  • November 12, 2021
  • 1 reply
  • 1002 views

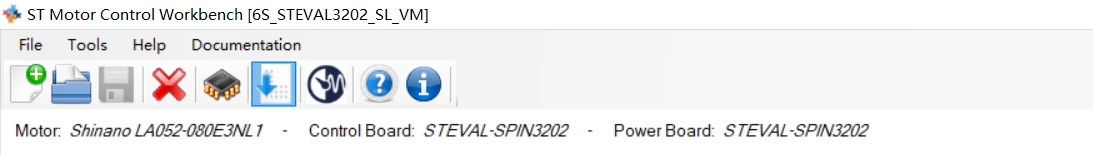

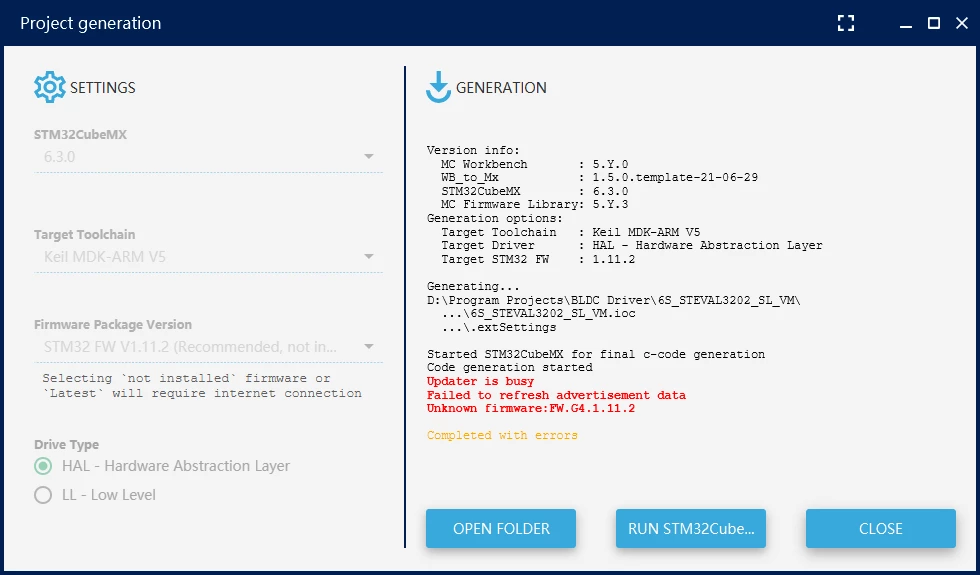

0693W00000GXLHDQA5.pngthe message shows need to download FW.G4.1.11.2 firmware, but the latest firmware is 1.4.0, what's wrong with this ? any one can give some suggestion? thanks a lot.0693W00000GXLGyQAP.png

This topic has been closed for replies.

1 reply

cedric H
cedric H
Technical Moderator
November 12, 2021

Hello @�?� REN​ ,

Your issue is strange, the SPIN3202 is based on a STM32F0, not on a STM32G4.

The firmware required is the stm32F0 HAL version 1.11.2

You can try to install it directly from cubeMX. or if it does not work, it is available to download here :

https://www.st.com/en/embedded-software/stm32cubef0.html

Regards

Cedric
