ST motor control workbench connection failed!

Forum|Forum|5 years ago
February 9, 2021
3 replies
2866 views

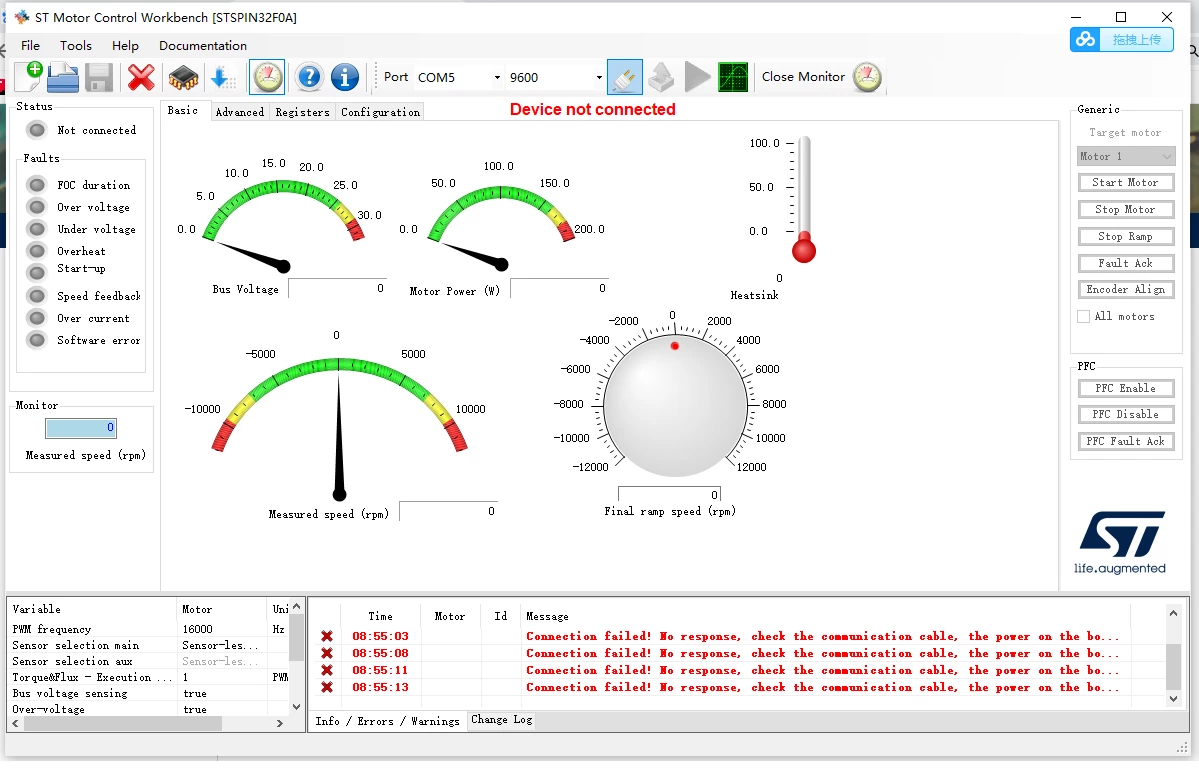

I used STSPIN32F0A as my motor control chip, the X_CUBE_MC workbench version is 5.4.4 , and the firmware package version is ST32 FW v1.11.2, then I generate the code ,but when I connect the MC workbench , I couldn't connect the MC workbench serial , and gave the below fault ， This problem has been bothering me for a long time，Thank you very much for helping me

STM32 Motor Control

This topic has been closed for replies.

Cristiana SCARAMEL

Technical Moderator

Hello @Wzong.1,

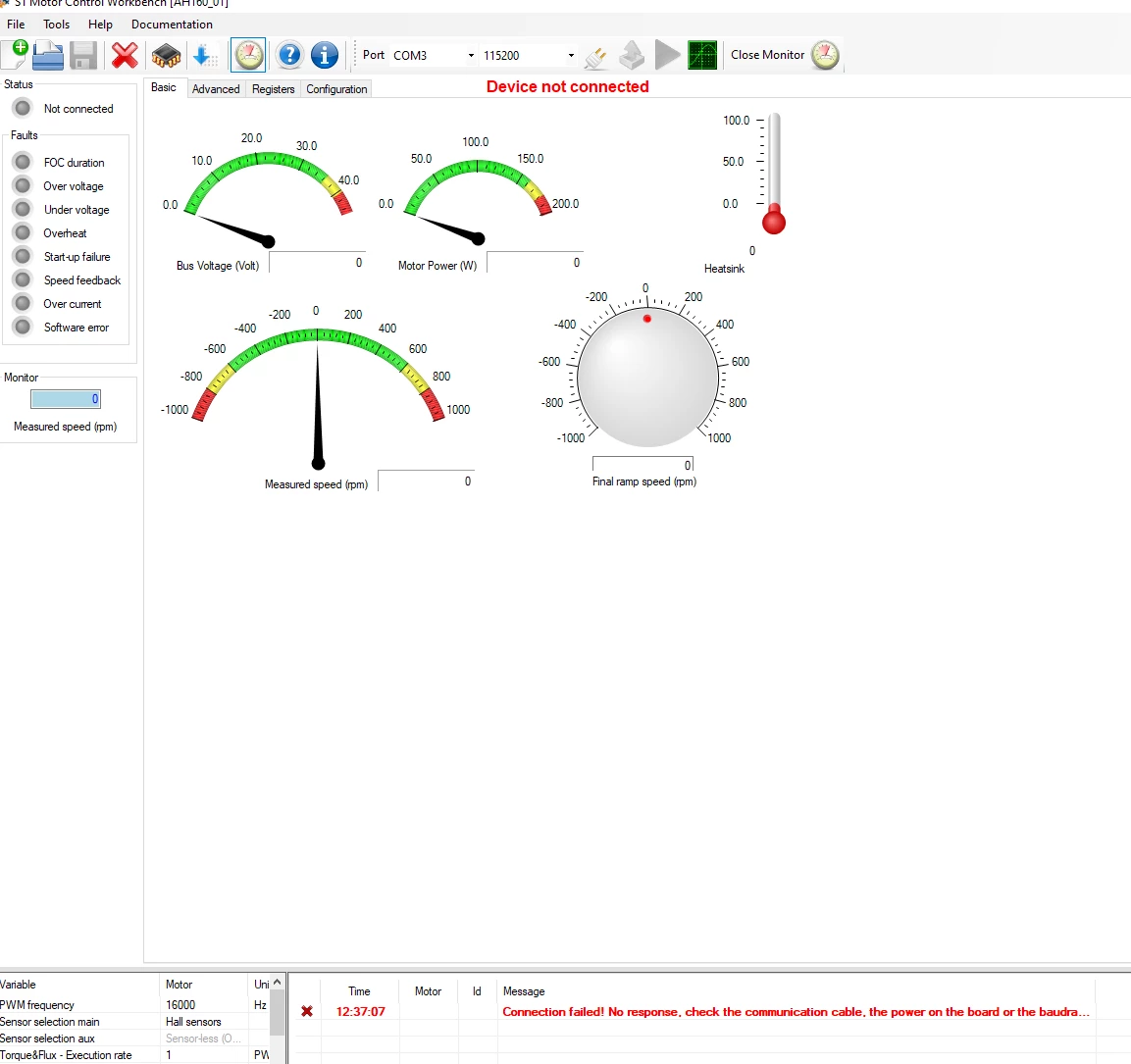

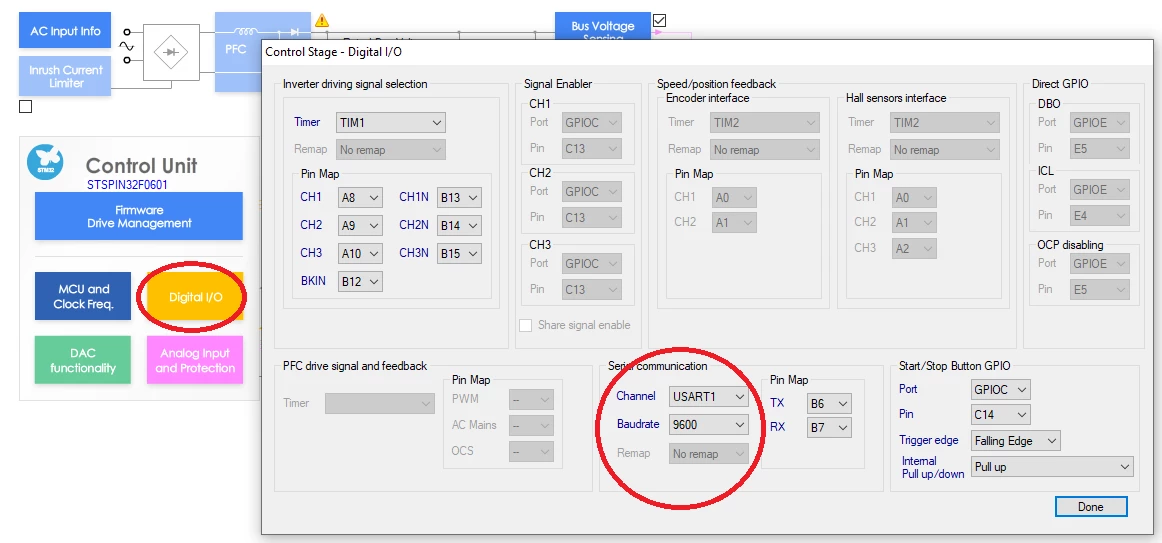

I suggest to check the communication speed set into the FW configuration and if it is correspond to the one in the monitor (baudrate 9600):

Let me know if it is helpful.

"If you feel a post has answered your question, please click ""Accept as Solution"""

Wzong.1Author

Associate III

Hi Cristiana. Thanks for your answer! I have checked the connection and the baudrate , they were ok. When I debugged the first time it could connect, but after changed the parameters of the current sensing , the serail communication was lost !
