STEVAL-SPIN3201 speed fault with 250W 36V BLDC with HAL sensors

  • January 28, 2020
  • 2 replies
  • 766 views

Hi.

I have configured the basic project in MotorControl Workbench for 36V BLDC with integrated HAL sensors, but when I try to start it the motor ripples for a moment and than I have a speed fault. In workbench integrated monitor I can see that speed changes when I rotate the motor manualy, so I have no idea what am I doing wrong. Where should I search the problem?

This topic has been closed for replies.
Best answer by ZZwer.1

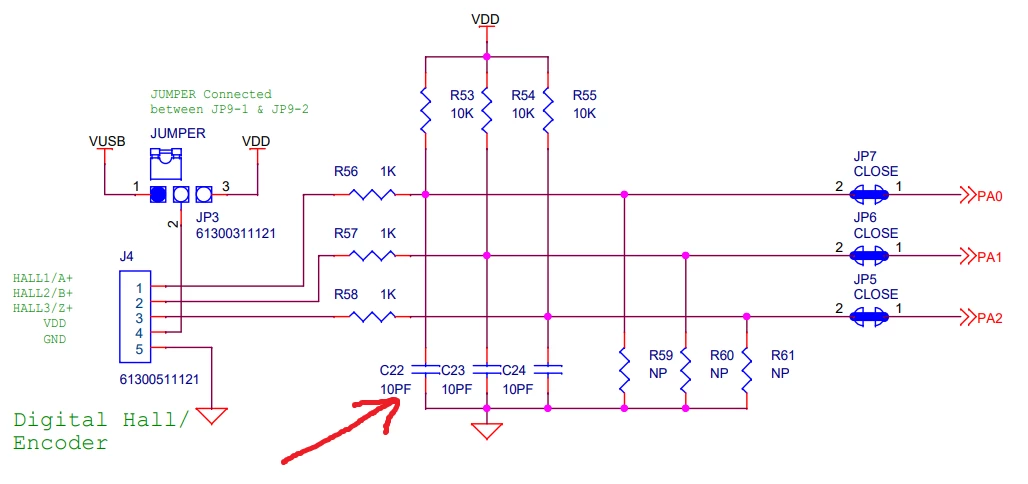

I have found the problem on my own. Developers installed 10pF capacitors in HAL RC filters which makes it nearly useless. So I replaced capacitors to 100nF and now it works stable. 0690X00000Bwn5oQAB.png

2 replies

ZZwer.1
ZZwer.1AuthorAnswer
Associate
January 29, 2020

I have found the problem on my own. Developers installed 10pF capacitors in HAL RC filters which makes it nearly useless. So I replaced capacitors to 100nF and now it works stable. 0690X00000Bwn5oQAB.png

Laurent Ca...
Laurent Ca...
Senior III
June 22, 2021

"STM32 Motor Control" topic added.

Best regards
