X-NUCLEO IHM07M1 - Motor Profiler Problem

Forum|Forum|6 years ago
October 15, 2019
3 replies
2518 views

I bought a F401RE and an IHM07M1 to work on the subject BLDC a couple of weeks ago but, I could not profile the motor.

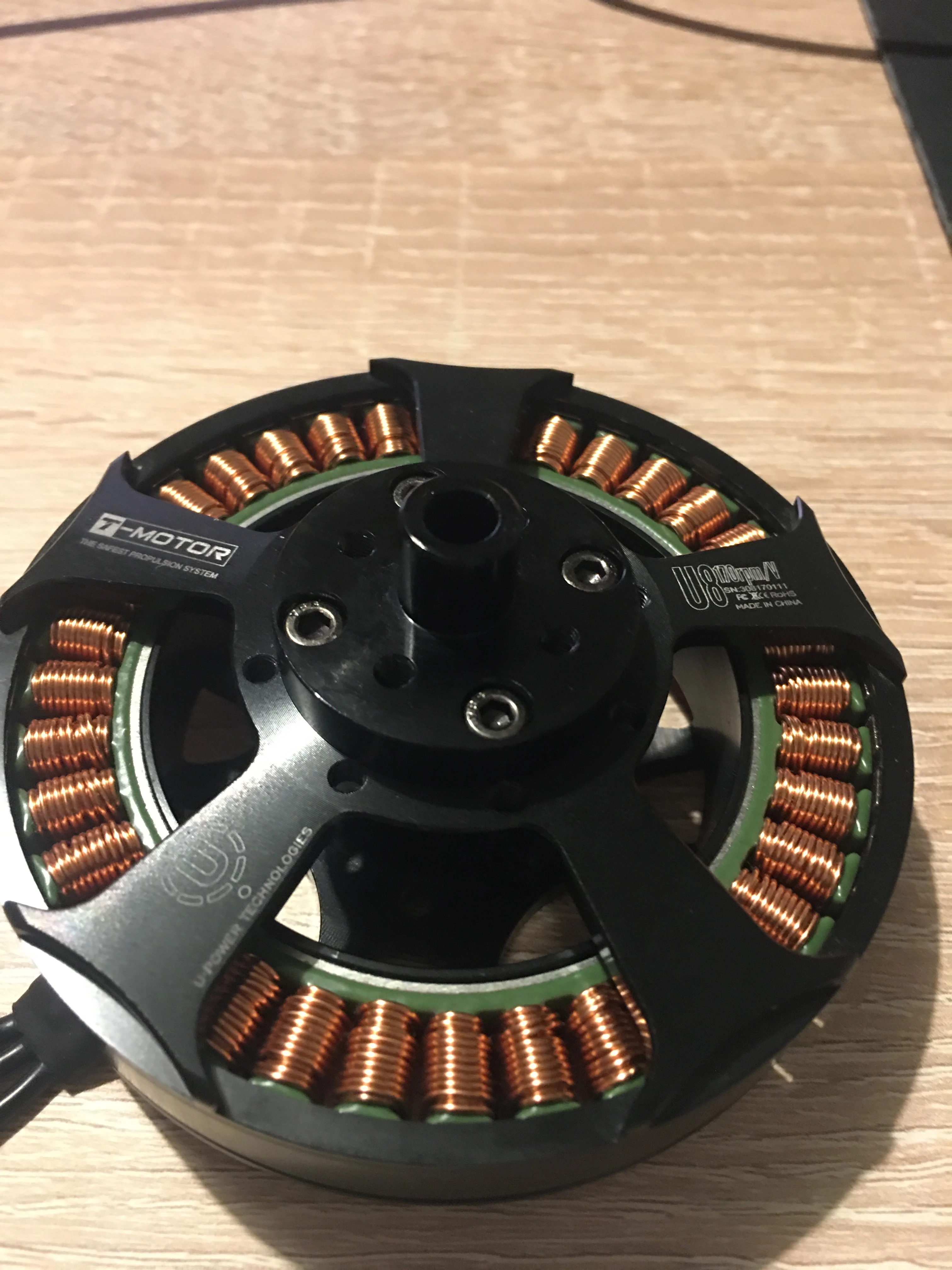

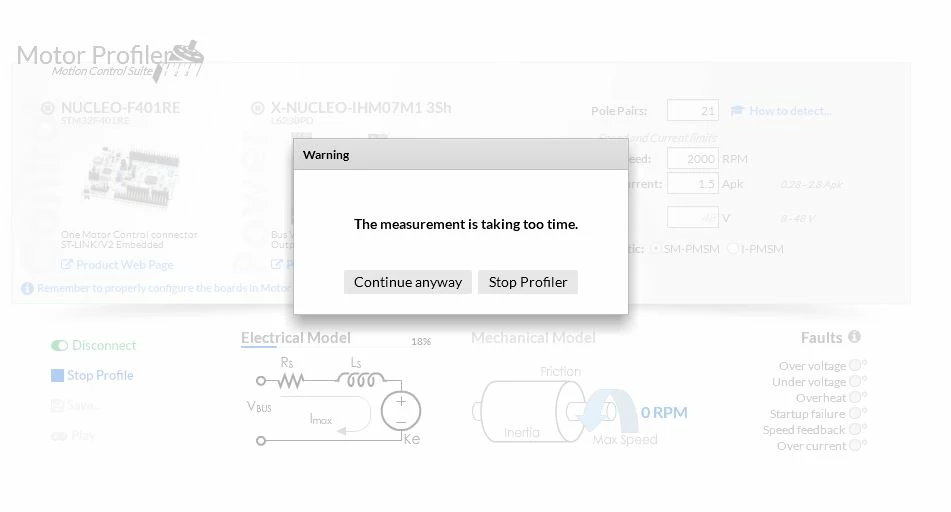

My motor is T-Motor U8 170kw. It has 36 coils and 42 poles. I connected my boards successfully but, when I clicked "Start Profile" it gives me the error message "The measurement is taking too time" and after clicking "continue anyway" the motor doesn't run.

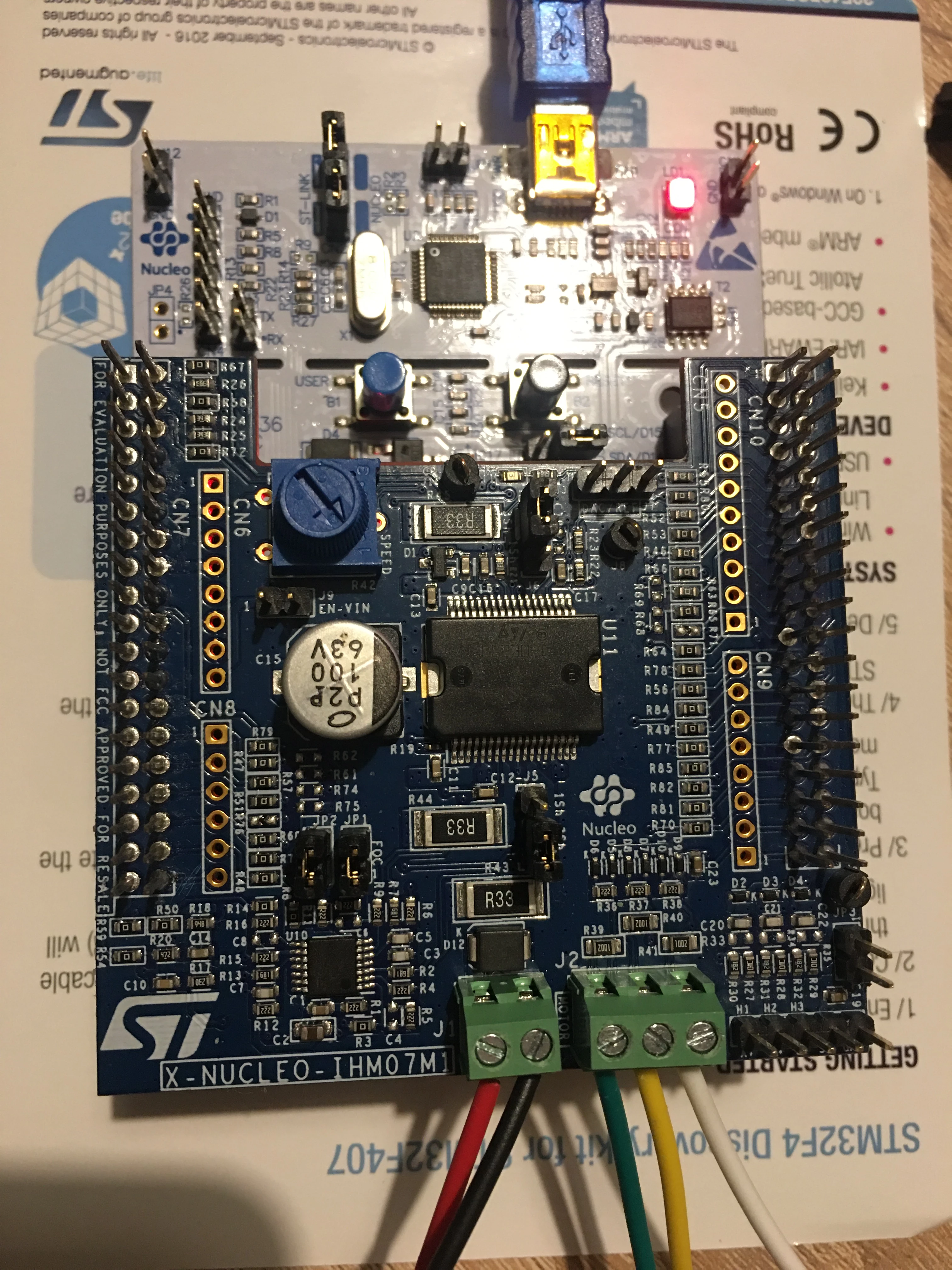

I attached my setup, motor and the warning message.

I would be really happy if someone could help me.

Thanks!

STM32 Motor Control

This topic has been closed for replies.

Associate III

I also has this problem. 2 suggestions...

1) make sure you have the latest mc workbench

2) that motor looks 10x too big for that board. It possibly cannot get it to overcome the magnetic detente. I had that exact problem.

Technical Moderator

Hello

As answered by David, the power required by your motor is far above the IHM07 capabilities.

One good candidate could be B-G431B-ESC1 :

https://www.st.com/content/st_com/en/products/evaluation-tools/product-evaluation-tools/mcu-mpu-eval-tools/stm32-mcu-mpu-eval-tools/stm32-discovery-kits/b-g431b-esc1.html

Regards

Cedric

Senior III

The question has been moved from the "Motor Control Hardware" section to the "STM32 Motor Control" section (the question is about the STM32 MC SDK).

Best regards
