Question

2DAddressing

  • April 1, 2025
  • 1 reply
  • 757 views

https://rristm.github.io/tomas_materials_v2/RRISTM/stm32u5_workshop/master/5_gpdma_handson_2d_address_mx.md/3

I followed this document, but the UART value is coming out as garbage. The data is being output as 8-bit, but the variable used to store it is 32-bit, so I think that's causing the issue. How can I solve this

1 reply

KDJEM.1
KDJEM.1
Technical Moderator
April 16, 2025

Hello @dlagyals;

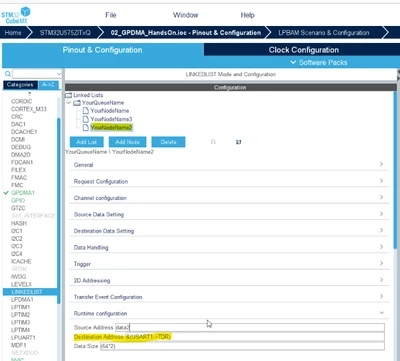

Why do you use "(uint32_t)&(USART1->TDR)" as a destination address in YourNodeName2 instead of "&(USART1->TDR)" like as the Github example?

Could you please try to change the destination address in YourNodeName2 to "&(USART1->TDR)"


The link‑transfer consists of a series of 32-bit single reads: up to six single reads for channel with linear‑addressing mode and up to eight single reads for channel with 2D addressing mode.

I hope this help you.

Thank you.

Kaouthar
