Again Microsecond timer on STM32C011F6U6

  • March 14, 2024
  • 4 replies
  • 2024 views

Hi,

I tried to reach 1us delay. To do that I use a timer on 1MHz and try to reach more or less precision delay.



void delayMicro(uint16_t delayMc) {
 __HAL_TIM_SET_COUNTER(&htim16,0); // set the counter value a 0
 while (__HAL_TIM_GET_COUNTER(&htim16) < delayMc);
}
 HAL_TIM_Base_Start(&htim16);
 while () {
 delayMicro(100);
 HAL_GPIO_TogglePin(OUT1_GPIO_Port, OUT1_Pin);
 }







And the result is always desired delay+6-8us


Even if I set delay = 1us, I get 7-8us.

I did something wrong or is this GPIO or microcontroller limitation?

Best answer by TDK

> And the result is always desired delay+6-8us

Overhead. Your timer has a precision of 1us, so expect some jitter due to that.

7us on a 12 MHz chip is 84 ticks. That's not a lot. You're jumping/returning to a function, dereferencing pointers, accessing registers. Likely compiling under Release mode would do much better. Using direct register access will help a bit.

4 replies

Tesla DeLorean
Tesla DeLorean
Guru
March 14, 2024

You don't show any of the TIM initialization code.. check prescaler, check clocking via MCO pin.

You don't want to have interrupts.

Perhaps easier to delta the TIM16->CNT than keep resetting

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    Sergii Volchenko
    Sergii VolchenkoAuthor
    Associate III
    March 14, 2024

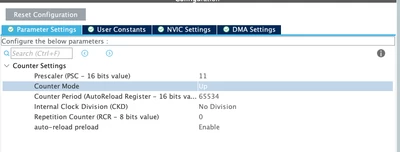

     htim16.Instance = TIM16;
 htim16.Init.Prescaler = 11;
 htim16.Init.CounterMode = TIM_COUNTERMODE_UP;
 htim16.Init.Period = 65534;
 htim16.Init.ClockDivision = TIM_CLOCKDIVISION_DIV1;
 htim16.Init.RepetitionCounter = 0;
 htim16.Init.AutoReloadPreload = TIM_AUTORELOAD_PRELOAD_ENABLE;

    And I don't use interrupt for this timer.


    Implementing delta for CNT didn't help.

    AScha.3
    AScha.3
    Super User
    March 14, 2024

    >I did something wrong or is this GPIO or microcontroller limitation?

    You did more than something wrong.

    "If you feel a post has answered your question, please click ""Accept as Solution""."
    TDK
    TDKAnswer
    Super User
    March 14, 2024

    > And the result is always desired delay+6-8us

    Overhead. Your timer has a precision of 1us, so expect some jitter due to that.

    7us on a 12 MHz chip is 84 ticks. That's not a lot. You're jumping/returning to a function, dereferencing pointers, accessing registers. Likely compiling under Release mode would do much better. Using direct register access will help a bit.

    "If you feel a post has answered your question, please click ""Accept as Solution""."
    Sergii Volchenko
    Sergii VolchenkoAuthor
    Associate III
    March 14, 2024

    Yeah, I think the same but hope that I'm wrong. :)

    gregstm
    gregstm
    Senior II
    March 16, 2024

    My belated thoughts -

    Agree with Tesla, don't bother resetting the counter, just use it as a reference and compare it with a register/variable with a delta added to it.

    If these things are critical, I would be doing something in assembler to minimise overheads (including loop overheads).
