Confirm my STM32G070RBT6 SPI1 configuration ?

Hello.

Please check if there are any issues with the settings as shown below.

PB4 : SPI1_miso

PB3 : SPI1_sck

PD6 : SPI1_mosi

Thank you.

Associate II

Looks fine.

Technical Moderator

Hello @@CabinJo

Let me thank you for posting and welcome to the ST Community.

I recommend that you take a look at the examples provided through the STM32Cube_FW_G0_V1.6.2 firmware package under this path:

C:\Users\_\STM32Cube\Repository\STM32Cube_FW_G0_V1.6.2\Projects\NUCLEO-G070RB\Examples\SPI

Thanks.

Mahmoud

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.

Technical Moderator

Hello,

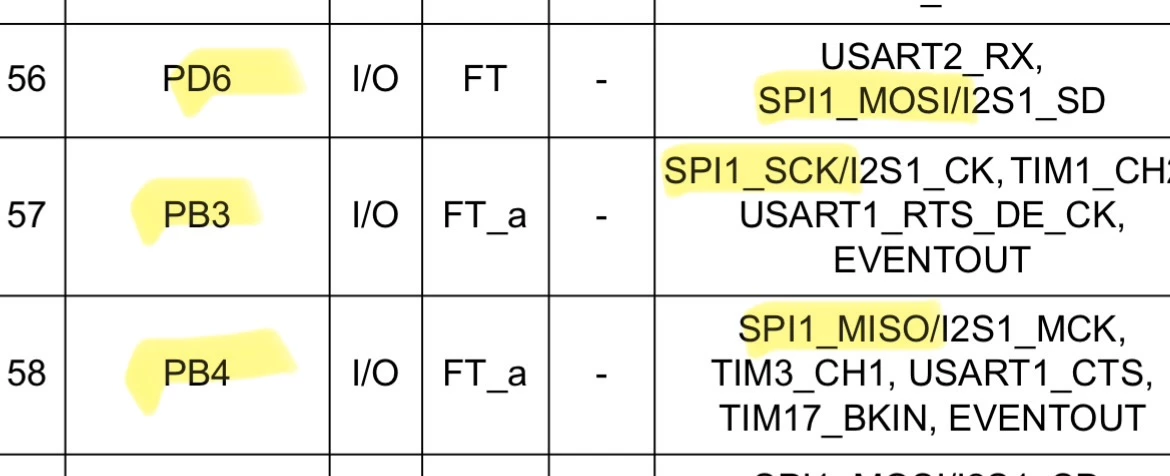

For that you need to check the datasheet:

As said by @mfgkw your configuration is correct.

To give better visibility on the answered topics, please click "Best answer" on the reply which solved your issue or answered your question.
