Error in Final Launch Sequence

  • July 6, 2024
  • 2 replies
  • 5640 views

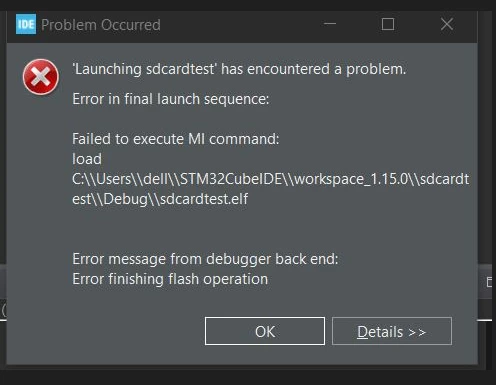

I am trying to upload the code to my target STM32F407 but below error is showing up. I tried some of suggestions but problem is still there. I am using Version: 1.15.1.   Debug log file also attached.

1) Doing Mass Erase of flash,

2) Updating ST Link Firmware

3) Set Reset Behavior: None

4) Uncheck Enable Live Expressions




Update:   I moved to STM32Cube programmer instead of using STM32cubeide, and able to upload the code after reducing ST-Link Frequency to 15Khz. Is it due to my target board poor design or something else. I am using Discovery Board ST-LINK to upload









Best answer by Nico3

 Pls note issue has been solved. The problem was with jumper cables between ST-LINK and Target board. We used new cables and all in single ribbon, so now it is working fine.

I conclude EMI was issue..

2 replies

N
Nico3AuthorAnswer
Senior
July 7, 2024

 Pls note issue has been solved. The problem was with jumper cables between ST-LINK and Target board. We used new cables and all in single ribbon, so now it is working fine.

I conclude EMI was issue..

C
chau
Visitor II
April 16, 2025

i downloaded and installed STM32 ST-LINK Utility. Then I erase chip by STM32 ST-LINK Utility. Then I open program in Stm32Cube and run program with stm32 board. It works.

Andrew Neil
Andrew Neil
Super User
April 16, 2025

@chau  Note that the old ST-Link Utility is long obsolete - although it may still work with older parts (like the F407 here), it's not going to help for newer ones.

As the OP said, STM32CubeProgrammer is the way forward.
