Guidance for Interfacing 7" 1024×600 LCD with STM32H743ZI

  • May 20, 2026
  • 3 replies
  • 157 views

Hi,

We are planning to use STM32H743ZI for our project.

Our requirement is to interface a 7-inch LCD touch display with 1024x600 resolution using a 24-bit RGB interface (RGB888) through LTDC.

Can STM32H743ZI reliably support this display resolution? Also, what frame rate can realistically be achieved with this configuration?

Are there any important hardware or performance considerations before selecting this MCU?

Any suggestions or reference designs would be helpful.

Thanks.

3 replies

Andrew Neil
Andrew Neil
Super User
May 20, 2026

Riverdi (among others) have a number of displays - up to 12.1" - based on H7:

https://www.st.com/en/partner-products-and-services/riverdi-stm32-displays.html

https://riverdi.com/knowledge-base/stm32-getting-started



ST have eval boards with 5/5.7" displays:

https://www.st.com/en/evaluation-tools/stm32h7s78-dk.html

https://www.st.com/en/evaluation-tools/stm32h753i-eval.html

via: https://www.st.com/en/microcontrollers-microprocessors/stm32h743zi.html#tools-software

A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
K
KannikaAuthor
Associate
May 21, 2026

Thanks for the suggestion.

Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?

It would be very helpful for understanding the LCD interface implementation and overall hardware architecture.

mƎALLEm
mƎALLEm
Technical Moderator
May 20, 2026

Hello @Kannika and welcome to the ST community;

AN4861 "Introduction to LCD-TFT display controller (LTDC) for STM32 MCUs"

https://www.st.com/en/partner-products-and-services/riverdi-stm32-displays.html

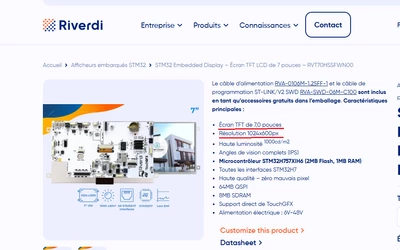

Using Riverdi board:

https://riverdi.com/fr/product/7-inch-lcd-display-stm32h7-frame-rvt70hssfwn00?srsltid=AfmBOor6JTenPNM1U1ScMpNVHtrKVtVqVj-XNgeCxwg_m1t2NYd8tHEm


So yes it can interface 7" 1024×600 LCD with STM32H743ZI.

PS1: STM32H755 have the same LCD-TFT peripheral.

PS2: STM32H743ZI is a 144 package check if all LTDC signals are available on that package.

To give better visibility on the answered topics, please click "Best answer" on the reply which solved your issue or answered your question.
    K
    KannikaAuthor
    Associate
    May 21, 2026

    Thanks for the suggestion.

    Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?

    It would be very helpful for understanding the LCD interface implementation and overall hardware architecture.

    Thanks.

    Andrew Neil
    Andrew Neil
    Super User
    May 21, 2026

    @Kannika - note that everyone can see every post - there's no need to repeat the same thing in multiple replies.

    You can mention multiple people using @



    @Kannika wrote:

    Could you please share the hardware design documents for the RVT70HSSFWN00 module, especially the schematics and any available reference design files?.

    You'd have to go to Riverdi for that - it's their product:

    https://riverdi.com/product/7-inch-lcd-display-stm32h7-frame-rvt70hssfwn00

    https://riverdi.com/contact

    A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
      MM..1
      MM..1
      Chief III
      May 20, 2026

      Most important is SDRAM here ... And too DSI ?
