HAL_XSPI_Transmit timeout

  • April 21, 2025
  • 2 replies
  • 1979 views

MCU: STM32U5G9VJ

I am sending simple single-line commands using the HAL_XPI library and the HSPI peripheral.

Problem (See code at bottom of post):

If I use the blocking call HAL_XSPI_Transmit, I get a timeout.

if I use the DMA call HAL_XSPI_Transmit_DMA, I get a HAL_XSPI_ErrorCallback.
The OSPI peripheral is working fine, it is the HSPI only that is having this issue.

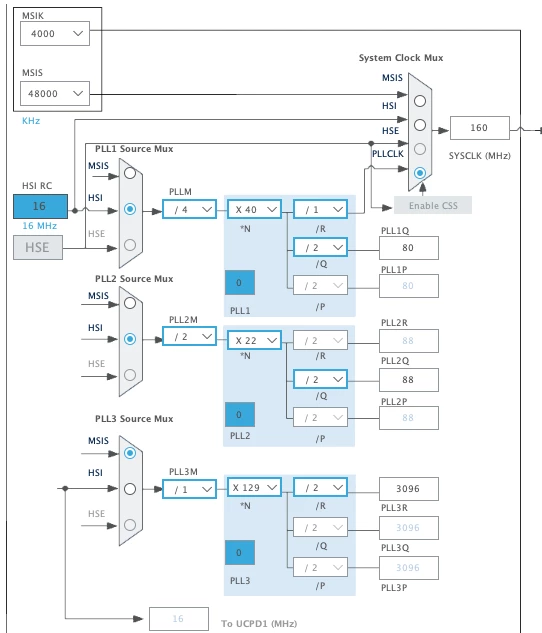

Clock Setup:







Code:



 HAL_StatusTypeDef status;

 XSPI_RegularCmdTypeDef sCommand = {0};

 sCommand.IOSelect = HAL_XSPI_SELECT_IO_3_0;
 sCommand.OperationType = HAL_XSPI_OPTYPE_COMMON_CFG;
 sCommand.InstructionMode = HAL_XSPI_INSTRUCTION_1_LINE;
 sCommand.InstructionWidth = HAL_XSPI_INSTRUCTION_8_BITS;
 sCommand.InstructionDTRMode = HAL_XSPI_INSTRUCTION_DTR_DISABLE;
 sCommand.Instruction = cmd;
 // Address Config
 sCommand.AddressMode = HAL_XSPI_ADDRESS_1_LINE;
 sCommand.AddressWidth = HAL_XSPI_ADDRESS_24_BITS;
 sCommand.Address = address;
 // Data Config
 sCommand.DataMode = HAL_XSPI_DATA_1_LINE;
 sCommand.DataLength = data_len;
 sCommand.DataDTRMode = HAL_XSPI_DATA_DTR_DISABLE;

 status = HAL_XSPI_Command(&hxspi1, &sCommand, HAL_XSPI_TIMEOUT_DEFAULT_VALUE);
 if (status != HAL_OK) {
 LOG_ERR("HSPI CMD Error: %d\n", status);
 Error_Handler();
 }

#define USE_DMA 0

#if USE_DMA == 1

 is_tx_done = false;

 status = HAL_XSPI_Transmit_DMA(&hxspi1, data);
 if (status != HAL_OK) {
 LOG_ERR("HSPI Error: %d\n", status);
 Error_Handler();
 }

 // wait for the previous transmission to complete
 uint64_t timeout_check = 0;
 while (!is_tx_done) {

 if (++timeout_check > (1E6)) {
 LOG_ERR("HSPI Interrupt Timeout\n");
 Error_Handler();
 }
 }

#else

 status = HAL_XSPI_Transmit(&hxspi1, data, HAL_XSPI_TIMEOUT_DEFAULT_VALUE);

 if (status != HAL_OK) {
 LOG_ERR("HSPI CMD Error: %s (%d)\n", HAL_Status_To_String(status), status);
 Error_Handler();
 }

#endif

 HAL_Delay(2);



2 replies

Tesla DeLorean
Tesla DeLorean
Guru
April 21, 2025

Are we sure this is a Timeout? Not sure clocking out data is gated on any pin state.

Is the peripheral in a busy state when you send the failing transaction?

In Memory Mapped mode?

Interrupt handlers and callbacks, and NVIC all configured?

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
LCorb.2
LCorb.2Author
Associate II
April 21, 2025



@Tesla DeLorean wrote:

Are we sure this is a Timeout? Not sure clocking out data is gated on any pin state.

Yes, HAL_XSPI_Transmit returns HAL_TIMEOUT.

It flushes out the transmit data, but then it times out on the transfer complete flag check:

status = XSPI_WaitFlagStateUntilTimeout(hxspi, HAL_XSPI_FLAG_FT, SET, tickstart, Timeout);

 if (status != HAL_OK)
 {
 break;
 }

 *((__IO uint8_t *)data_reg) = *hxspi->pBuffPtr;
 hxspi->pBuffPtr++;
 hxspi->XferCount--;
 } while (hxspi->XferCount > 0U);

 if (status == HAL_OK)
 {
 /* Wait till transfer complete flag is set to go back in idle state */
 status = XSPI_WaitFlagStateUntilTimeout(hxspi, HAL_XSPI_FLAG_TC, SET, tickstart, Timeout);



@Tesla DeLorean wrote:

In Memory Mapped mode?

Interrupt handlers and callbacks, and NVIC all configured?

I have not called any memory map configs.  I do have the interrupts and callbacks configured, but I would not expect to need those in the blocking HAL_XSPI_Transmit call.  The HAL_XSPI_Transmit_DMA call does hit the errorcallback, so callback is being called in that configuration.

LCorb.2
LCorb.2Author
Associate II
April 30, 2025

I think the issue was the “memory size” settings.  I had this set to 16 Bits, but when I bumped this to 16Gbits it fixed the transmit error.  This seems odd since I am not using memory-mapped mode.

Some additional questions.

Background: I am sending 640 bytes of  data with @ 100 MHz

Instruction: 1 Byte: 0x32
Address: 3 bytes

Pin settings: Very High Speed

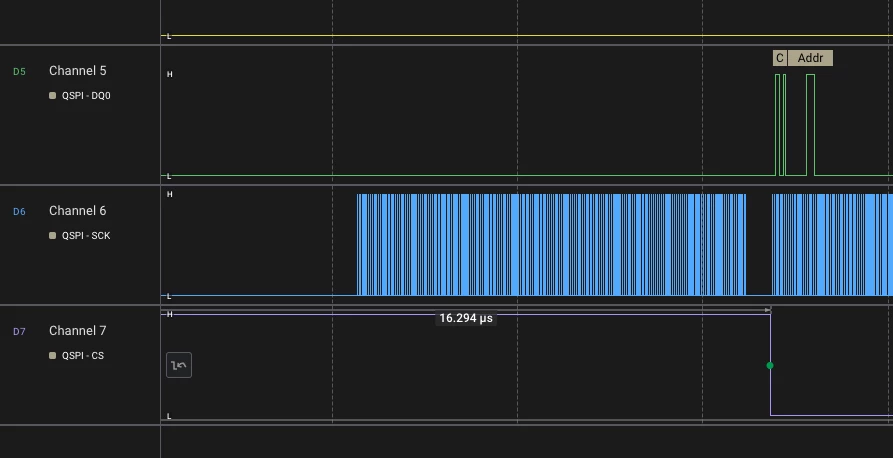

  1. Clocks are being sent pre-chip select

    There are a series of clocks being sent before the chip select goes low.  I have a free-running clock off; why am I seeing extra clocks?

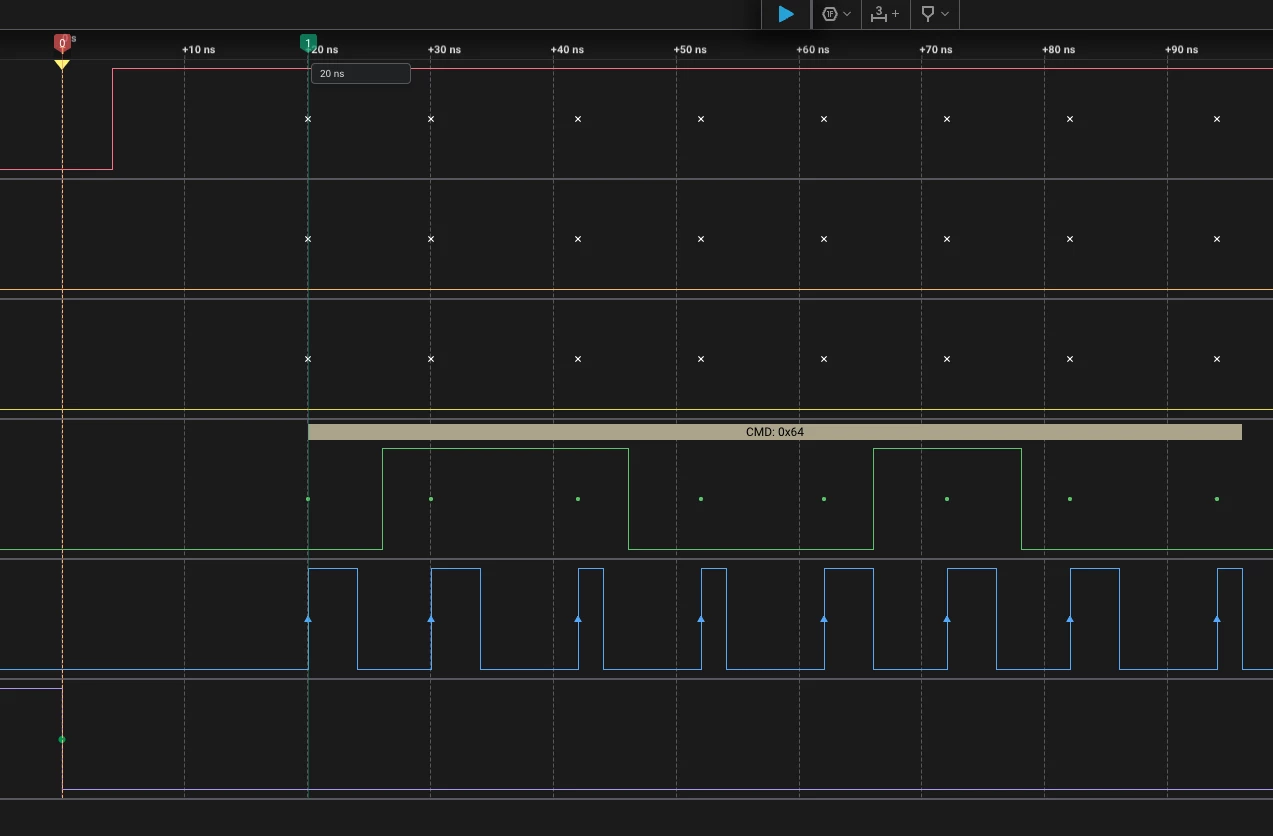

  2. The first clock pulse is sometimes missing:

    Every instruction/command is 0x32.

    However, some commands seem to be missing the first clock, and shifting this command to 0x64

    Correct Instruction Bytes – first clock is at 12ns, CMD is 0x32

    Incorrect Instruction Byte – first clock is at 20ns, CMD is 0x64

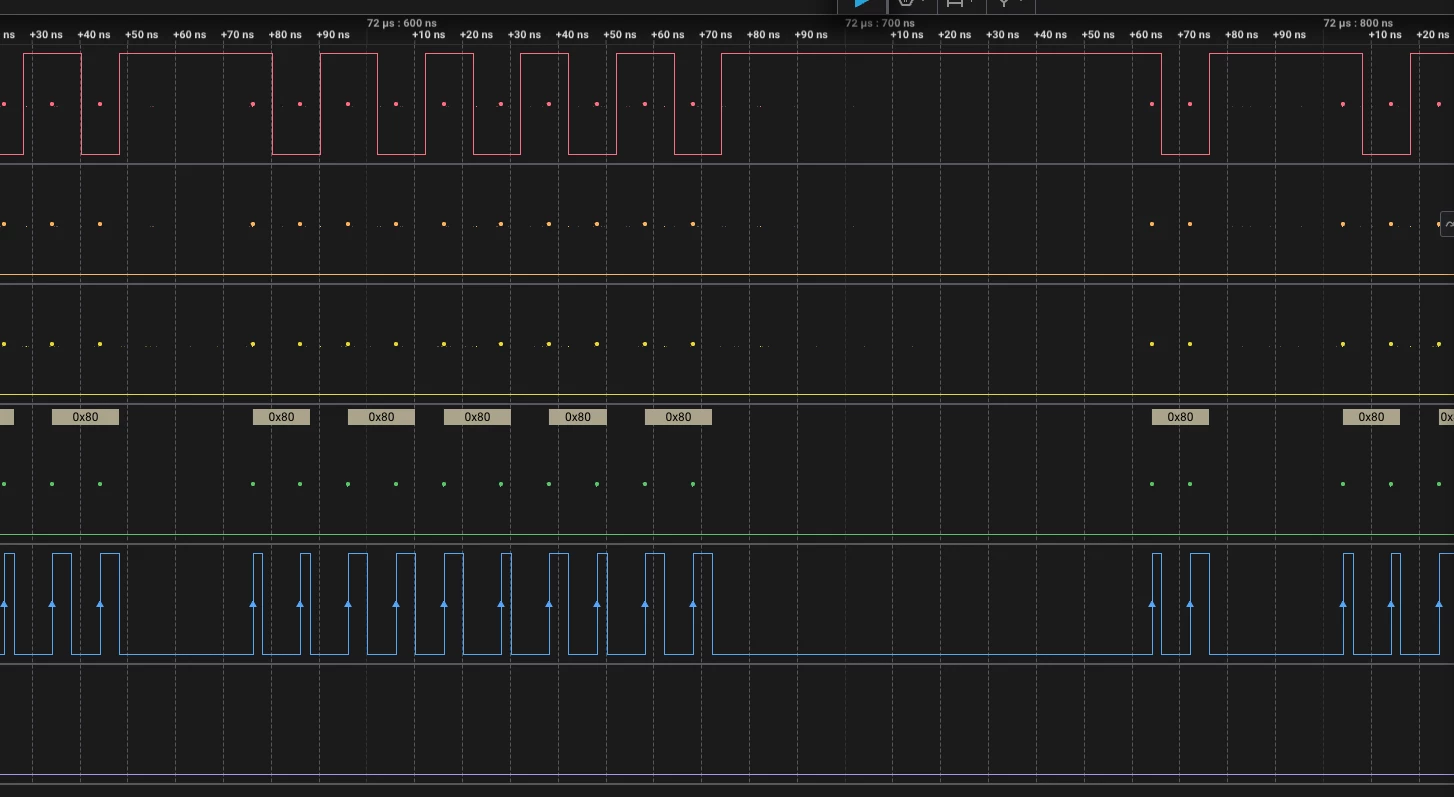

  3. Delays in the data stream when sending 640 bytes using DMA.

    The data stream has random pauses in the stream when sending 640 bytes @ 100 Mhz.  Perhaps the bus cannot keep up at this speed?

I am using DMA and enabled burst length of 64
