Help Needed: Issues Programming and Communicating via USB after PCB Redesign (STM32F429ZIT6)

  • January 18, 2024
  • 3 replies
  • 3163 views

Hello everyone

I've hit a bit of a snag with my PCB redesign (V2) featuring an STM32F429ZIT6. While the initial version (V1) worked like a charm, some layout changes and component swaps (SN74ABT16245ADL to two SN74HCT245DWR) in V2 are causing issues with programming via DFU and USB communication.

Here's a quick rundown of my troubleshooting so far:

  • JTAG/SWD Programming: Successful via STCubeProgramer Stlink, so no problems there.

  • PCB Assembly: Hand-soldered all PCBs, and continuity tests for USB lines and power tracks look solid.

  • DFU Programming: Jumper on BOOT0 enabled, but no luck with DFU. I'm testing on a Linux machine, using lsusb to check for the DFU or USB device in normal mode.

Attached Schematic: I've included the schematic for your reference.

Now, I'm seeking fresh perspectives and additional help:

  • Crystal Signals: What should I expect on the crystal signals to ensure they're operating correctly? Any recommended frequency checks?

  • Fuse Flags: Are there specific "fuse" settings that need enabling for DFU capability on a fresh chip? I want to make sure everything is configured as it should be.

  • Additional Debugging Tips: Any other suggestions for new ways to debug and narrow down the issue would be greatly appreciated.

The V1 worked seamlessly, and I'm a bit stumped with the V2 hiccup. Your insights would mean a lot!

Cheers!

3 replies

AScha.3
AScha.3
Super User
January 18, 2024

Just - sure, you didnt swap D+ / - ?

What telling you linux, when connect the usb ? ( see terminal -> dmesg )

+

debug (swd) is working ok ?

"If you feel a post has answered your question, please click ""Accept as Solution""."
E
edsousa84Author
Associate
January 18, 2024

Hello @AScha.3 thanks for your input.

As far as I can tell no I did not swap the D+ and D- (I have used the exact same circuit as the previous version)
The D+ line is connected to the PA12 (Pin 104) and then connects to the pin 3 of the mini usb connector.
The D- line is connected to the PA11 (Pin 103) and then connects to the pin 2 of the mini usb connector.

dmesg does not issue anything about the USB device (it simply does not detect it).

dmesg output on a working V1 board:





$ sudo dmesg
[90327.020890] usb 3-1: USB disconnect, device number 73
[90328.639326] usb 3-1: new full-speed USB device number 74 using xhci_hcd
[90328.789052] usb 3-1: New USB device found, idVendor=0483, idProduct=df11, bcdDevice=22.00
[90328.789058] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[90328.789059] usb 3-1: Product: STM32 BOOTLOADER
[90328.789061] usb 3-1: Manufacturer: STMicroelectronics
[90328.789062] usb 3-1: SerialNumber: 354B324D3331
$







 dmesg on a non working board:





$ sudo dmesg
$




I did not try to debug the firmware yet. I will try it as soon as I possibly can (good idea)

AScha.3
AScha.3
Super User
January 18, 2024

dmesg -> nothing.  So nothing at the usb port , no connect to D+ , thats pulled hi , to start enumeration.

Check, if with boot0 hi, reset/startup: then  is D+ pulled up on your board ( about 3v + ) --- and at the plug ?

+

still unknown : debug (swd) is working ok ?

"If you feel a post has answered your question, please click ""Accept as Solution""."
J
JTP1
Graduate II
January 22, 2024

Hello

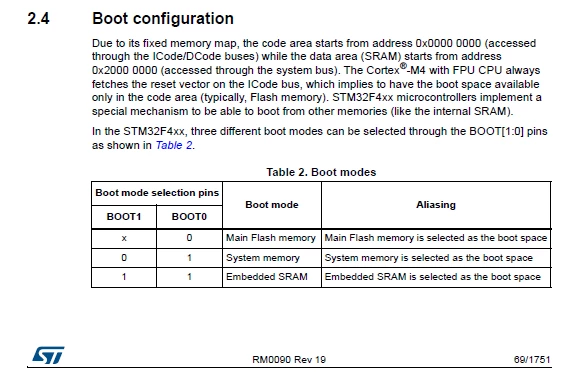

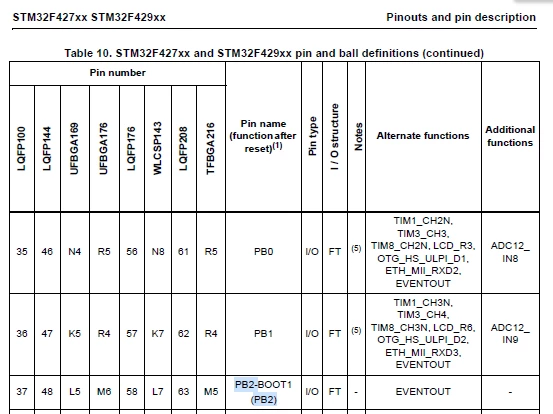

Try to pulldown PB2 pin or connect it to Gnd, it seems to be BOOT1.

Datasheet:


Ref.manual:


Br JTP

F
FBL
Technical Moderator
March 11, 2024

Hello @edsousa84

You can probe the clock source via MCO. It could indicate a problem with the external oscillator.

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.Best regards,FBL
