No device found on target. After some succesfull uploads

  • May 6, 2025
  • 1 reply
  • 1622 views

Hi,

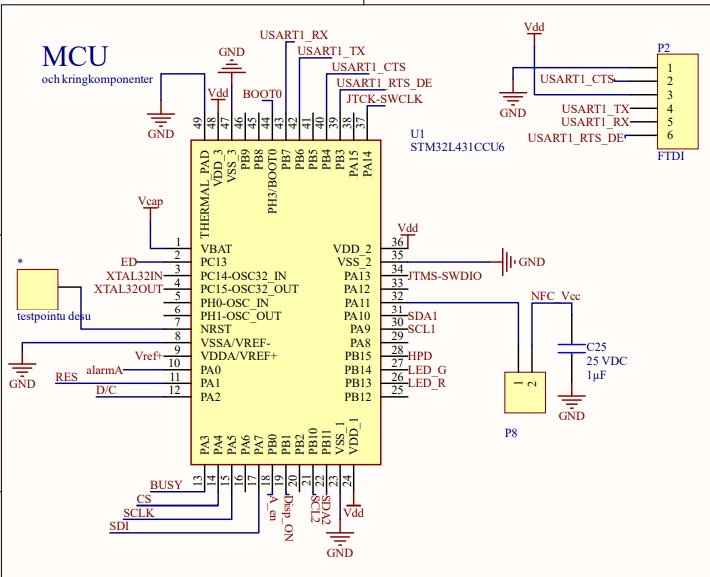

I am working with a custom board with the STM32L431CCU6 mcu. The bord consist of the mcu and 2 i2c units and one SPI.


The board also has pin headers for BOOT0, SWDIO and SWCLK.

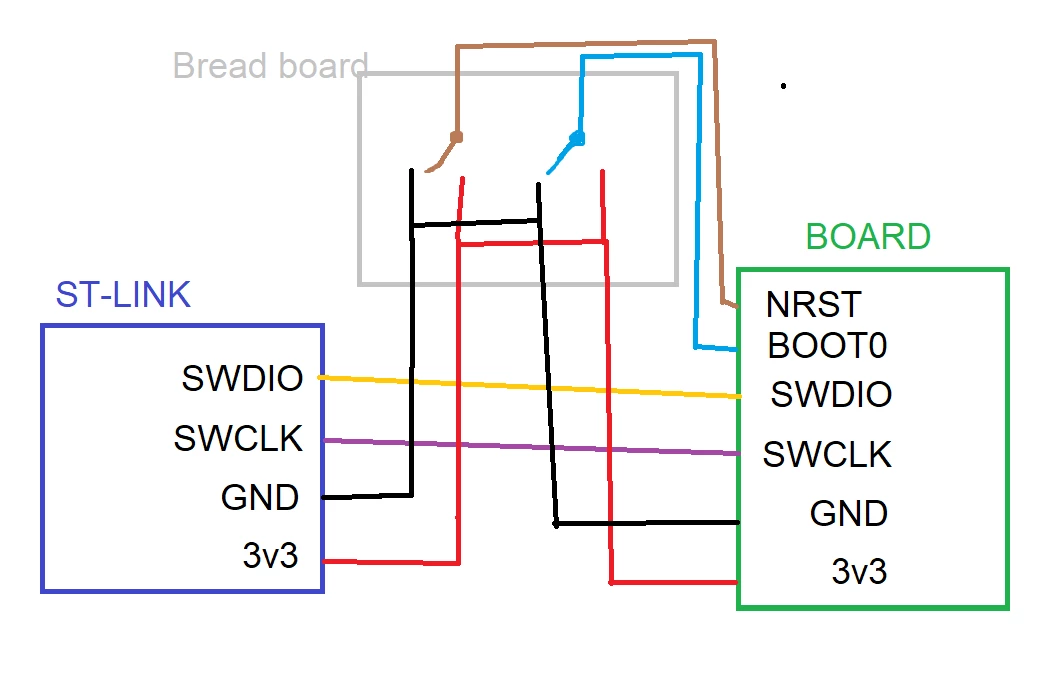

Sory for paint...



I am using the CubeIDE and a ST-LINK V2for programming the board and have successfully programed Blink on it. This was not problem free however since my coputer sometimes did not recognised the ST-LINK and sometimes failed to upload. Unfortuanatli I do not remember those errors in details.

After succesfully uploading a program for i2c communication I could not program the board any more. The error i receive from the IDE is:

STMicroelectronics ST-LINK GDB server. Version 7.9.0
Copyright (c) 2024, STMicroelectronics. All rights reserved.

Starting server with the following options:
 Persistent Mode : Disabled
 Logging Level : 1
 Listen Port Number : 61234
 Status Refresh Delay : 15s
 Verbose Mode : Disabled
 SWD Debug : Enabled
 InitWhile : Enabled

Target no device found

Error in initializing ST-LINK device.
Reason: No device found on target.



After a while of plugging the link in and out and trying to press boot and desperatly trying whatever I could, I tried a second board. This was a new board with a new ship but same problem. I tried using the ST-LINK of a NUCLEO board, same problem. Different computer, same problem. Cube programmer, same problem(? different errormessage: Error: Unable to get core ID,  Error: No STM32 target found!) I am all out of ideas and no other post seems to solve my problem. Any ideas?





Best answer by Andrew Neil

First, is it a genuine ST-Link?

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/ta-p/49471



Note that breadboards are notoriously prone to unreliable connections - which can certainly mess-up your debugger connection.

Rather than route NRST via a breadboard, let the ST-Link control it and use connect under hardware reset.



@assjo wrote:

my coputer sometimes did not recognised the ST-LINK

You mean the ST-Link didn't even appear in Device Manager (or equivalent).

That suggests a USB connection problem between the computer & the ST-Link.



On resolving debugger connection issues:

https://community.st.com/t5/stm32-mcus/how-to-solve-connection-errors-when-connecting-and-programming/tac-p/786977

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693



1 reply

Andrew Neil
Andrew NeilAnswer
Super User
May 6, 2025

First, is it a genuine ST-Link?

https://community.st.com/t5/stm32-mcus/how-to-recognize-a-genuine-st-link-v2-versus-a-cloned-one/ta-p/49471



Note that breadboards are notoriously prone to unreliable connections - which can certainly mess-up your debugger connection.

Rather than route NRST via a breadboard, let the ST-Link control it and use connect under hardware reset.



@assjo wrote:

my coputer sometimes did not recognised the ST-LINK

You mean the ST-Link didn't even appear in Device Manager (or equivalent).

That suggests a USB connection problem between the computer & the ST-Link.



On resolving debugger connection issues:

https://community.st.com/t5/stm32-mcus/how-to-solve-connection-errors-when-connecting-and-programming/tac-p/786977

https://community.st.com/t5/stm32-mcus/how-to-solve-debugger-connection-issues/ta-p/49693



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
    A
    assjoAuthor
    Associate II
    May 6, 2025

    Thanks! This was the solution!

    Firstly I connected the NRST directly to the ST-LINK, but then a new error occured. Unable to erase memory. Someone recomended changing all the cables incase any was broken or damaged and since then programming has worked without any problem.

    (The ST-Link did appere in the device manager but the IDE could not see it or someting like that.)
