ST-LINK/V2 LPUART Connection

  • March 7, 2024
  • 2 replies
  • 4481 views

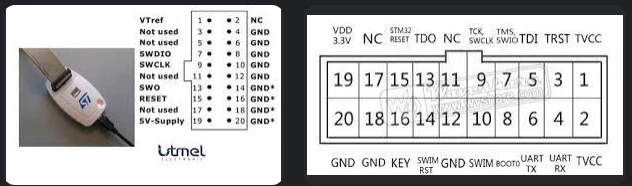

I tried to set up a UART connection from my custom board to my PC but encountered some problems and after a bit of probing, it seems that UART TX and UART RX are connected to GND. Do I need to enable UART somewhere for the ST-LINK ? Also why do some drawings display pins 6 and 4 as GND but some of them display them as UART pins?






This topic has been closed for replies.

2 replies

STTwo-32
STTwo-32
Technical Moderator
March 7, 2024

Hello @JS8

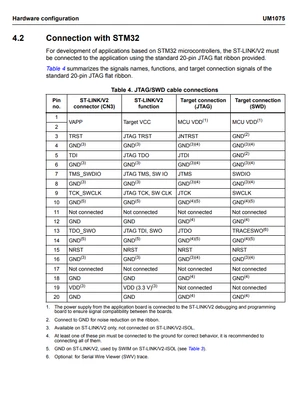

If you look at the Table 4 of the UM1075, you can find the Pin description of the ST-LINK/V2:


As you can see here, there is not any mention for the USART.

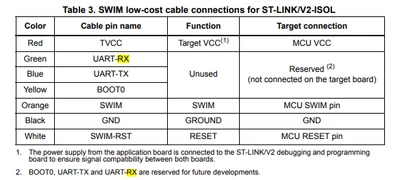

If you are using the SWIM low-cost cable connections for ST-LINK/V2-ISOL, it is mentioned on the second note under table 3 that  "BOOT0, UART-TX and UART-RX are reserved for future developments."


Best Regards.

STTwo-32

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    TDK
    TDK
    Super User
    March 8, 2024

    This is a duplicate/continutation from the previous post:

    https://community.st.com/t5/stm32-mcus-products/st-link-v2-lpuart-connection/td-p/647622



    "If you feel a post has answered your question, please click ""Accept as Solution""."
