STM32F7 Ethernet problems with custom PCB

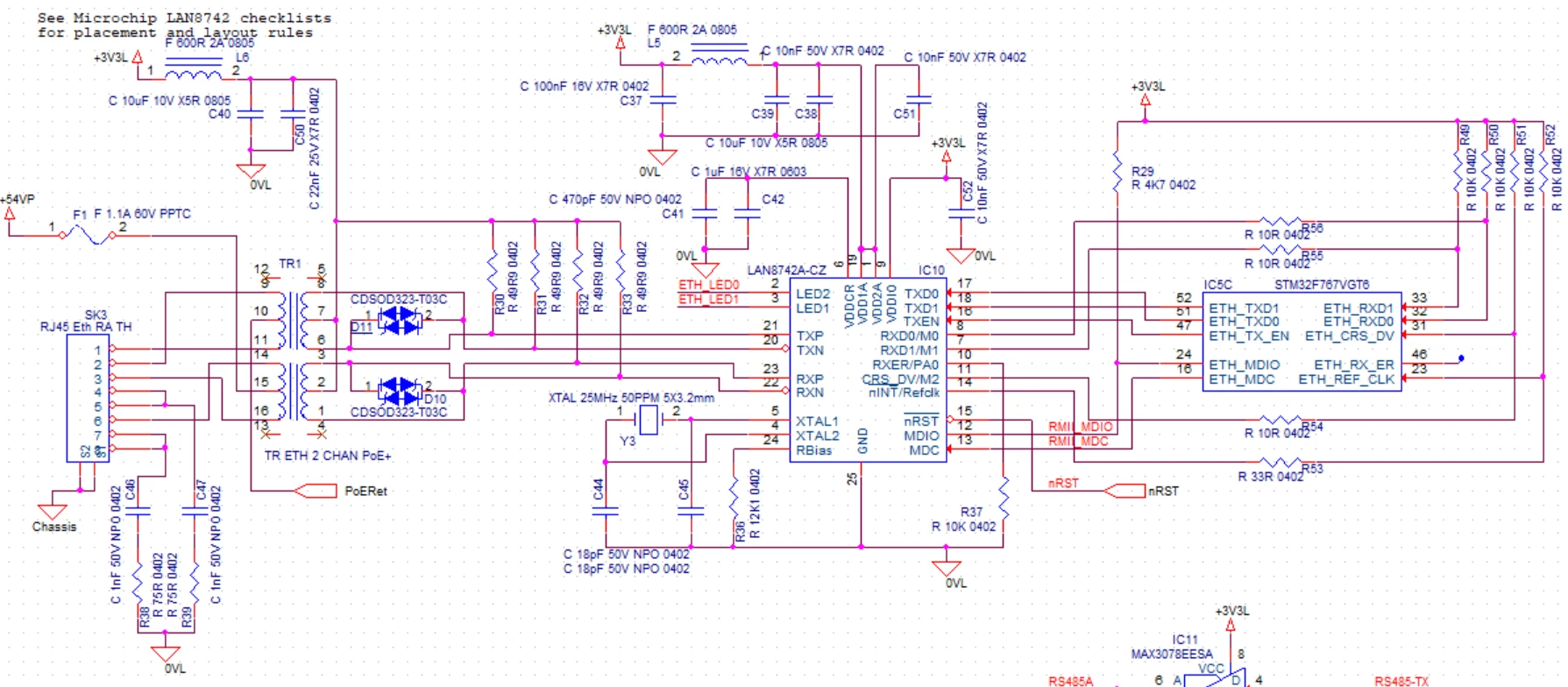

As I'm having problems passing images in private messages I'm posting my schematic for an STM32F765 to Ethernet Phy here.

This topic has been closed for replies.

Super User

You can put your files on a google drive or onedrive etc, and post a link in private message.

Senior

Can't figure out why we can't put images in messages. If I link to a file hosting service I compromise my privacy.

Technical Moderator

Hello @Oliver Sedlacek ,

You need to describe your problem to let other members help you in efficient way.

Thank you.

To give better visibility on the answered topics, please click "Best answer" on the reply which solved your issue or answered your question.

Technical Moderator

Hello @Oliver Sedlacek ,

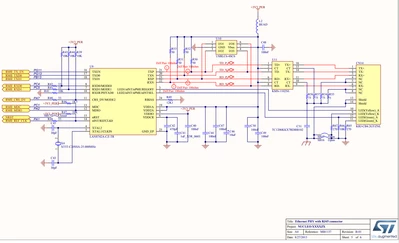

I think the schematic of the STM32 Nucleo board may help you.

Also you can refer to the Altium project to check your PCB.

I hope this help you.

Kaouthar

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
