STM32G4 I/O input high level voltage

  • March 13, 2024
  • 2 replies
  • 2096 views

Dear Sir's,



what is the minimum high level threshold voltage

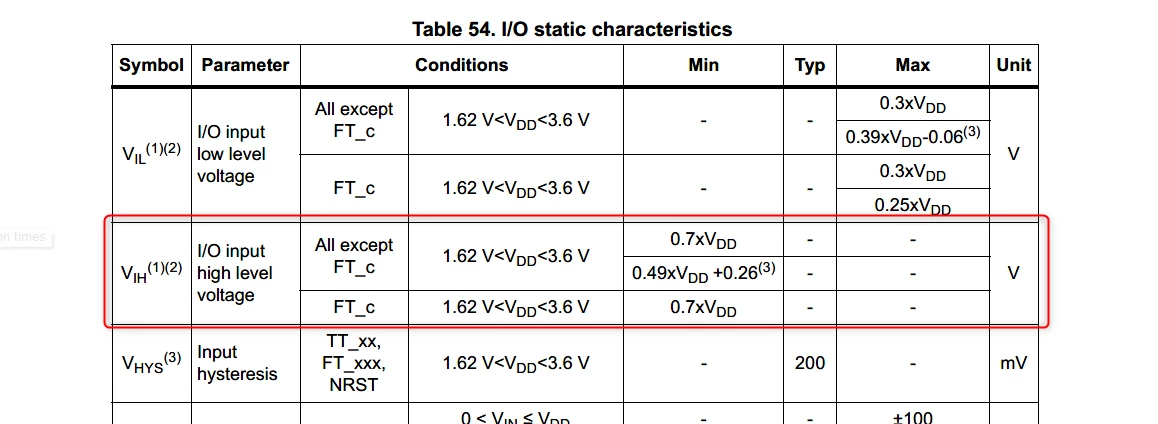

for a non FT_C port? Is it 0.7xVDD or 0.49xVDD+0.26?




Regards,

Jochen

This topic has been closed for replies.
Best answer by KDJEM.1

Hello @JR1 and welcome to the community :),

These 2 formulas are correct  VIH = 0.7x VDD is the threshold tested in production and VIH=0.49xVDD+0.3V is the threshold guaranteed by design as mentioned in note 3.

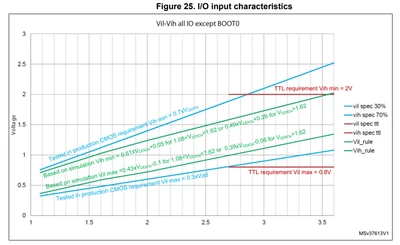

This behavior is mentioned in data sheet figure 25: in blue the threshold level tested in production and in green the threshold level guaranteed by design.


May this discussion can help you.

Kaouthar



2 replies

Andrew Neil
Andrew Neil
Super User
March 13, 2024

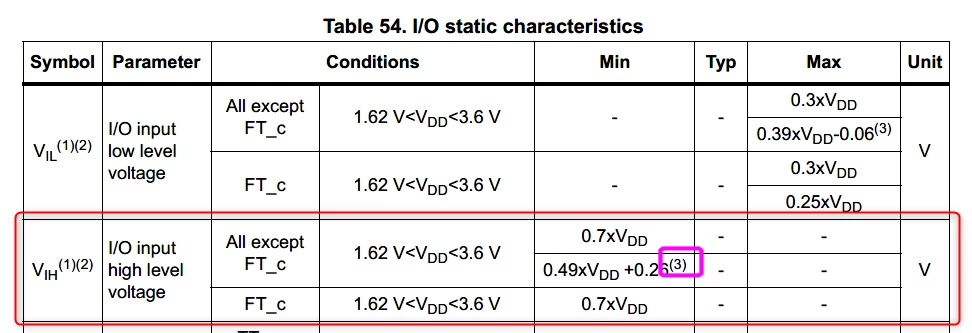

What does the note (3) tell you?




A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
KDJEM.1
KDJEM.1Answer
Technical Moderator
March 13, 2024

Hello @JR1 and welcome to the community :),

These 2 formulas are correct  VIH = 0.7x VDD is the threshold tested in production and VIH=0.49xVDD+0.3V is the threshold guaranteed by design as mentioned in note 3.

This behavior is mentioned in data sheet figure 25: in blue the threshold level tested in production and in green the threshold level guaranteed by design.


May this discussion can help you.

Kaouthar



To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
