STM32H563RGT6 running at 125℃ environment

  • May 6, 2026
  • 2 replies
  • 163 views

Hello ST,

We are using STM32H563RGT6 and want to run at 125℃ environment.

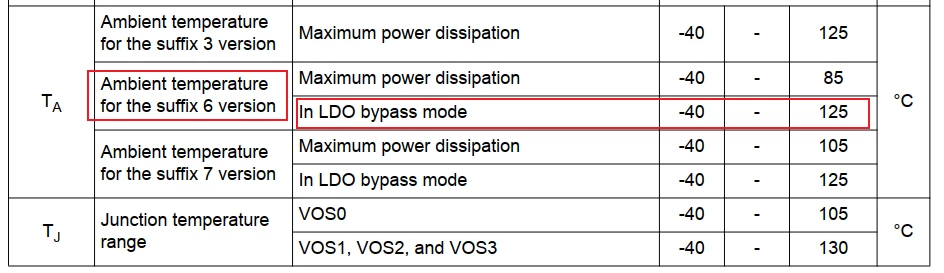

We see in the datasheet as below.


it seems that for STM32H563RGT6 with suffix 6, if we are using LDO bypass mode (using external 1.2V power supply for MCU Vcore), MCU works at VOS1 mode, it also can run at 125℃ environment.

Is it right?

Thanks.





Best answer by Gyessine

Hello @lyan.2
If you comply with the specified conditions (LDO bypass mode), the product should operate at 125 degrees Celsius. However, ensure that the operating environment does not exceed 125 degrees Celsius, even by a small margin, because this is the maximum specified temperature. Exceeding this temperature may result in unpredictable product behavior.
BR
Gyessine

2 replies

G
GyessineAnswer
Technical Moderator
May 6, 2026

Hello @lyan.2
If you comply with the specified conditions (LDO bypass mode), the product should operate at 125 degrees Celsius. However, ensure that the operating environment does not exceed 125 degrees Celsius, even by a small margin, because this is the maximum specified temperature. Exceeding this temperature may result in unpredictable product behavior.
BR
Gyessine

To give better visibility on the answered topics, please click on Accept as Solution on the reply which solved your issue or answered your question.
    lyan.2
    lyan.2Author
    Associate II
    May 7, 2026

    Hello Gyessine,



    Got it, it's a good way to use suffix 6 device working at 125℃, thanks for your help.
