STM32L412 Issue with ADC

  • February 12, 2024
  • 5 replies
  • 4453 views

I'm finding difficult to get the value from the channel that i configured of a regular channel with stm32l412 microcontroller. where I'm not getting the EOC interrupt enabled in ADC_ISR register.

and When I tried to get data from ADC_CDR register, it throwing error on me like there no like this register is exists.

Really not understood why is happening like this.

Please help me in this.

5 replies

TDK
TDK
Super User
February 12, 2024

> When I tried to get data from ADC_CDR register, it throwing error on me like there no like this register is exists.

Show the error.

Typically you read from the ADCx_DR register for a single ADC.

Lots of examples in CubeMX on how to use the ADC.

"If you feel a post has answered your question, please click ""Accept as Solution""."
A
Aj_123Author
Associate
February 14, 2024

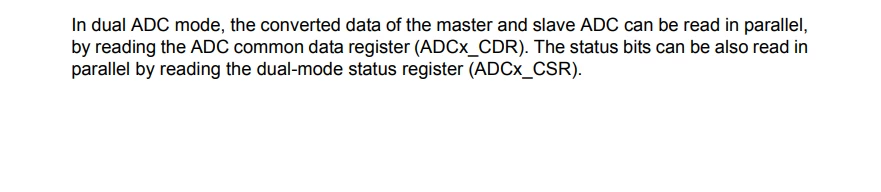

Please have a look into this. I'm trying to enable both regular and injected in ADC_CCR register so, we have to read from ADC_CDR regiser. Your help will be greatly appreciated. RM_CDR.png

Billy OWEN
Billy OWEN
ST Employee
February 13, 2024

Hi @Aj_123



The forum moderator had marked your post as needing a little more investigation and direct support. An online support case has been created on your behalf, please stand by for just a moment and you will hear from us.



Regards,

Billy

    AScha.3
    AScha.3
    Super User
    February 13, 2024

    >When I tried to get data from ADC_CDR register

    How did you try ?

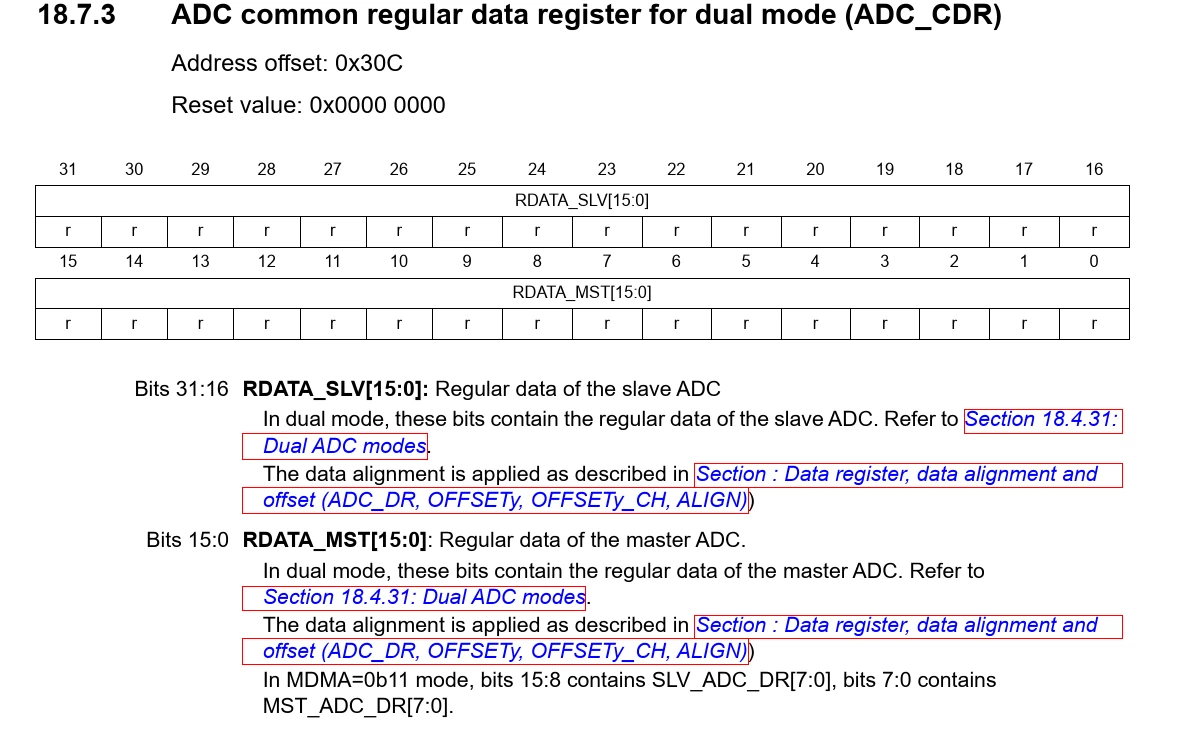

    ADC_CDR is 32 bits and has two parts...




    "If you feel a post has answered your question, please click ""Accept as Solution""."
      A
      Aj_123Author
      Associate
      February 14, 2024


      A
      Aj_123Author
      Associate
      February 14, 2024

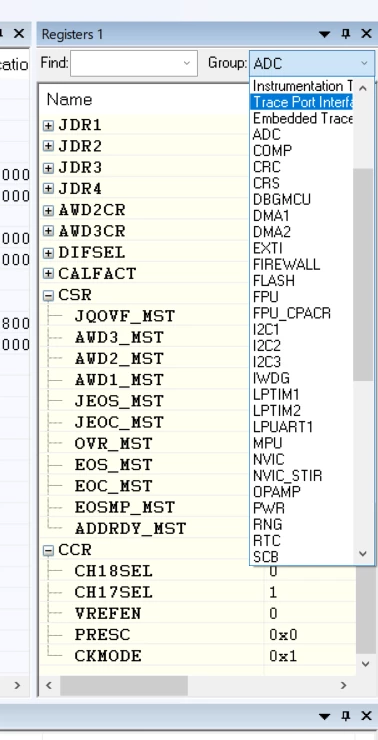

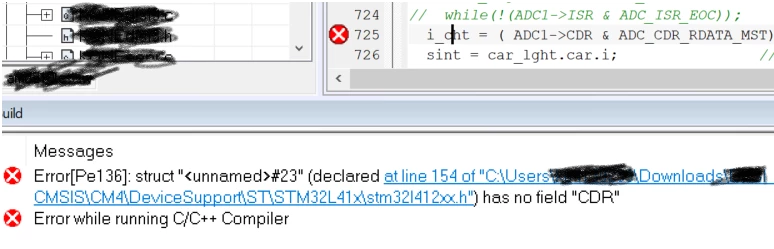

      This is how i tried but, i don't know why it's happening. I have not even seen CDR register is there in registers list. Please acknowledge and respond. Your help will be greatly appreciated.



      TDK
      TDK
      Super User
      February 14, 2024

      The common ADC register is at ADC12_COMMON->CDR, not ADC1->CDR.

      https://github.com/STMicroelectronics/cmsis_device_l4/blob/013bf0e41256ffbc2b539676f2007d08b297a86a/Include/stm32l412xx.h#L976C9-L976C29



      "If you feel a post has answered your question, please click ""Accept as Solution""."
        A
        Aj_123Author
        Associate
        February 14, 2024

        could you give me an example of this logic to read data from it .

        TDK
        TDK
        Super User
        February 14, 2024

        I don't know that it has the data you want, but here is how you would read the two fields in the register:

        uint32_t cdr = ADC12_COMMON->CDR;
uint16_t upper_field = cdr >> 16;
uint16_t lower_field = cdr & 0xFFFF;
        "If you feel a post has answered your question, please click ""Accept as Solution""."
